| Image Sensor |
1/2.7" 8.0MP Progressive Scan CMOS |
| Maximum Resolution |
8.0 Megapixel (3840 × 2160) |
| Effective Pixels |
3840 (H) × 2160 (V) |
| RAM / ROM |
1GB / 256MB |
| Minimum Illumination |
0.007 Lux @ F1.4 (Colour), 0.0007 Lux @ F1.4 (B/W), 0 Lux (Illuminator On) |
| S/N Ratio |
>56dB |
| Illumination System |
2 × Warm LEDs, 2 × Infrared LEDs, Up to 30m Range, Auto/Manual Control |
| Lens Type |
Fixed |
| Lens |
2.8mm Fixed Focal Lens |
| Field of View |
110° Horizontal, 58° Vertical, 132° Diagonal |
| Focus |
Fixed Focus, 1.4m Minimum Focus Distance |
| DORI Detection |
Detect: 85m / Observe: 34m / Recognise: 17m / Identify: 8m |
| Recording Resolution |
8.0MP (3840 × 2160) to CIF (352 × 288 / 352 × 240) |
| Main Stream |
8.0MP (1–25fps) |
| Sub Stream |
1080P (1–25fps) |
| Third Stream |
1080P (1–25fps) |
| Video Compression |
H.265 / H.264H / H.264 / H.264B / MJPEG |
| Bit Rate |
H.265: 3–16384Kbps / H.264: 3–16384Kbps |
| Bit Rate Control |
CBR / VBR / ABR |
| Day/Night Mode |
Auto (ICR) / Colour / B&W |
| Lighting Compensation |
BLC / HLC / WDR (120dB) / AI SSA |
| Smart Scene Adaptive |
Yes |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control |
Auto / Manual |
| Noise Reduction |
3D DNR |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| AI Functions |
Human & Vehicle Detection, AcuPick Intelligent Search |
| Intelligent Functions |
Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared |
| Perimeter Protection |
AI Tripwire & Intrusion with Human & Vehicle Classification |
| Face Detection |
N/A |
| Face Recognition |
N/A |
| People Counting |
N/A |
| Heat Map |
N/A |
| Auto Tracking |
N/A |
| Event Triggers |
Motion Detection, Video Tampering, Scene Change, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
| Intelligent Search |
Search AI Human & Vehicle Events via AcuPick and Compatible Smart NVR |
| Ethernet |
RJ-45 (10/100Base-T) |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1X, SNMP |
| Streaming Method |
Multicast |
| Maximum User Access |
20 Users |
| Audio |
Built-in Microphone (G.711a, G.711Mu, G726, G.723, PCM) |
| Edge Storage |
MicroSD Card (up to 512GB), NAS |
| Interoperability |
ONVIF / P2P / CGI |
| Power Supply |
12VDC / PoE (IEEE 802.3af) |
| Power Consumption |
<7.4W (12VDC), 9.5W (PoE Max) |
| Operating Environment |
-40°C ~ +60°C / ≤95% RH |
| Ingress Protection |
IP67 |
| Housing |
Metal |
| Series |
Professional AI Series |
| Camera Type |
Turret |
| Pan / Tilt / Rotation |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| ePoE |
No |
| AcuPick |
Yes |

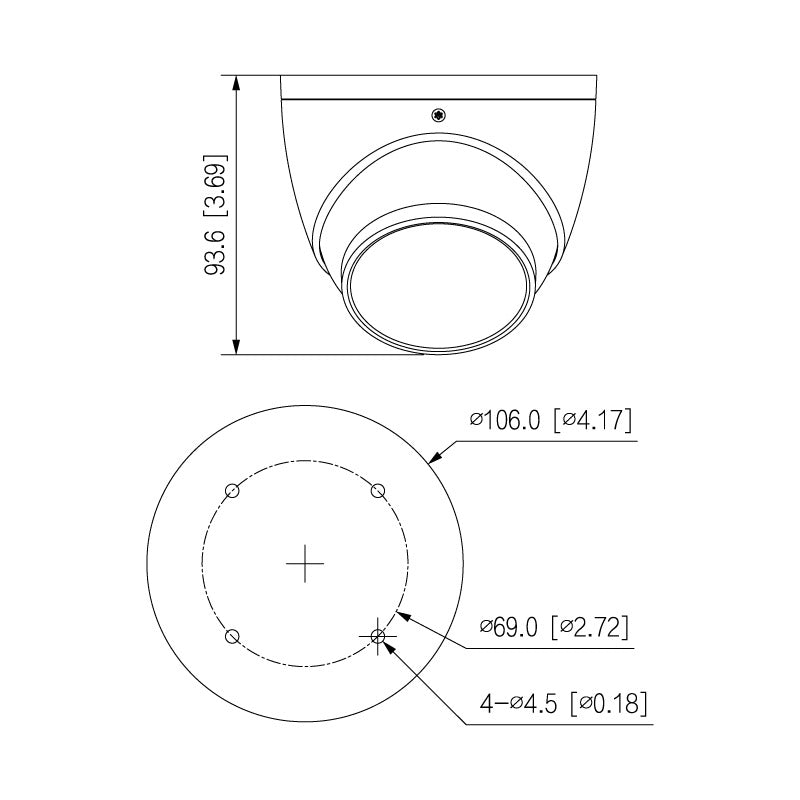

| Dimensions |
Ø106mm × 94mm |
| Weight |
0.53kg |
