The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.
Features
- Stream up to 4.0MP (2688 x 1520) at 25fps.
- 2.8mm fixed lens with 103° viewing angle.
- H.265 encoding for efficient storage & streaming.
- Up to 50m infrared range; true day/night (auto ICR).
- MicroSD slot for recording at the edge up to 256GB.
- AI-powered perimeter protection & smart motion detection (SMD+).
- Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles.
- Back/highlight compensation & true WDR (120dB).
- 3D digital noise reduction & auto white balance.
- IP67 weather-rated housing for outdoor use.
- WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!
Tech Specs

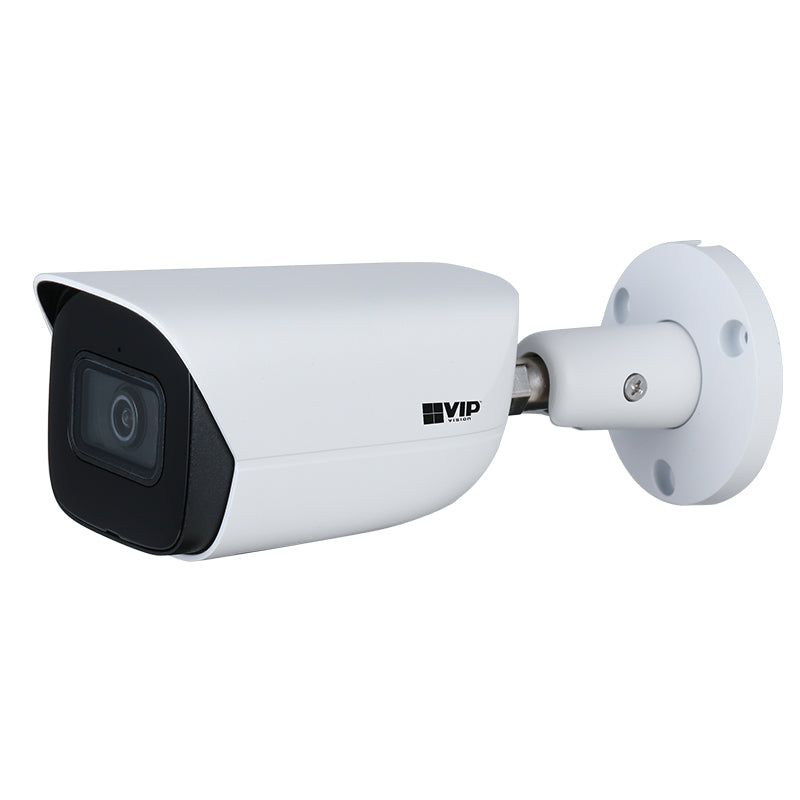

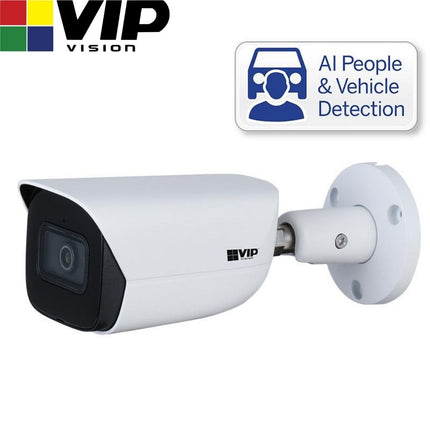

VIP Vision VSIPP-4BIRG-I Security Camera
| Camera |
|
| Image Sensor |
1/3’’ 4.0MP Progressive Scan CMOS |
| Max. Resolution |
4.0 Megapixel |
| Effective Pixels |
2688 (H) x 1520 (V) |
| RAM / ROM |
512MB / 128MB |
| Min Illumination |
0.005 Lux/F1.6 (Color) |
| S/N Ratio |
> 56dB |
| Infrared System |
1 x Infrared LED, 50m range, Auto/manual on/off control |
| Lens |
|
| Lens Type |
Fixed |
| Lens / Iris |
2.8mm F1.6 Fixed Lens |
| Field of View |
Horizontal: 103°, Vertical: 55° |
| Focus |
Fixed / 0.9m Min. Focus |
| DORI |
|
| Detect (25px/m) |
56m |
| Observe (63px/m) |
22m |
| Recognise (125px/m) |
11m |
| Identify (250px/m) |
6m |
| Video |
|
| Resolution |
4.0MP (2688 x 1520) to CIF (352 x 288) |
| Frame Rate (Main) |
4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
720p (1 ~ 25fps) |
| Video Compression |
H.265 / H.264 / H.264B / MJPEG |
| Bit Rate |
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Day/Night |
Auto (ICR) / Color / B&W |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control |
Auto / Manual |
| Noise Reduction |
3D DNR |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 2.0MP resolution) |
| IVS |
|
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles) |
| Face Detection |
N/A |
| Face Attributes |
N/A |
| People Counting |
N/A |
| Heat Map |
N/A |
| Event Trigger |
N/A |
| Intelligent Search |
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle |
| Network |
|
| Ethernet |
RJ-45 (10/100Base-T) |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Streaming Method |
Unicast / Multicast |
| Max. User Access |
20 Users |
| Interface |
|
| Video Interface |
N/A |
| Audio Interface |
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC |
| Alarm Interface |
N/A |
| RS485 |
N/A |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP/ SFTP |
| Interoperability |
ONVIF / P2P / CGI / Milestone / Genetec |
| Environmental |
|
| Power Supply |
12VDC / PoE (802.3af) |
| Power Consumption |
<5.4W |
| Operating Conditions |
-40°C ~ +60°C, ?95% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance |
N/A |
| Series |
Professional AI Series |
| Camera Type |
Bullet |
| Housing |
Metal |
| Pan/Tilt/Rotation |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| ePoE |
No |
| Dimensions |
193mm x 71mm x 66mm |
| Net Weight |
0.59kg |
| Warranty (Years) |
4 |
