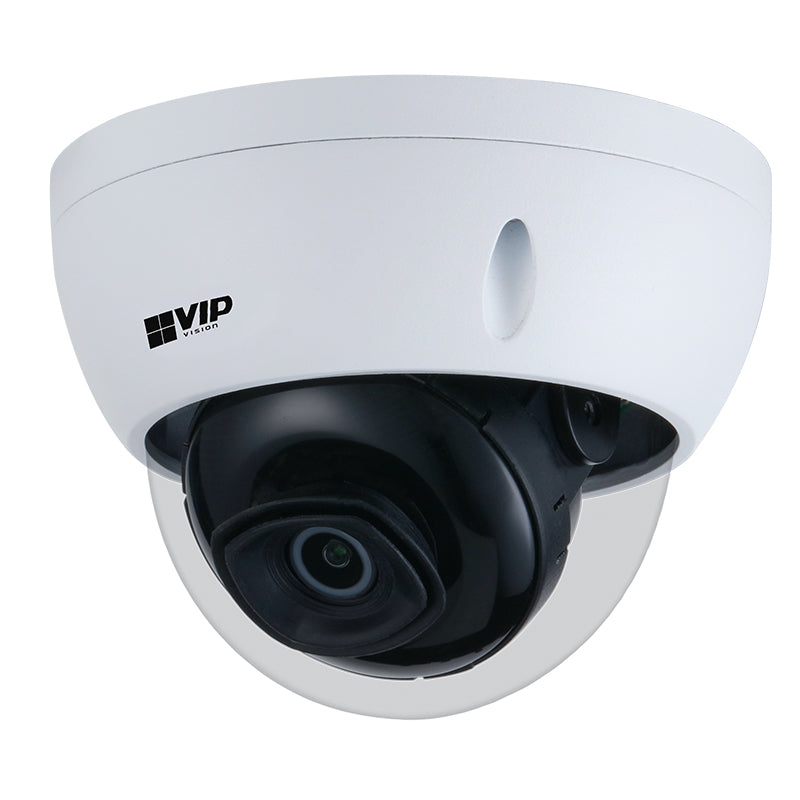

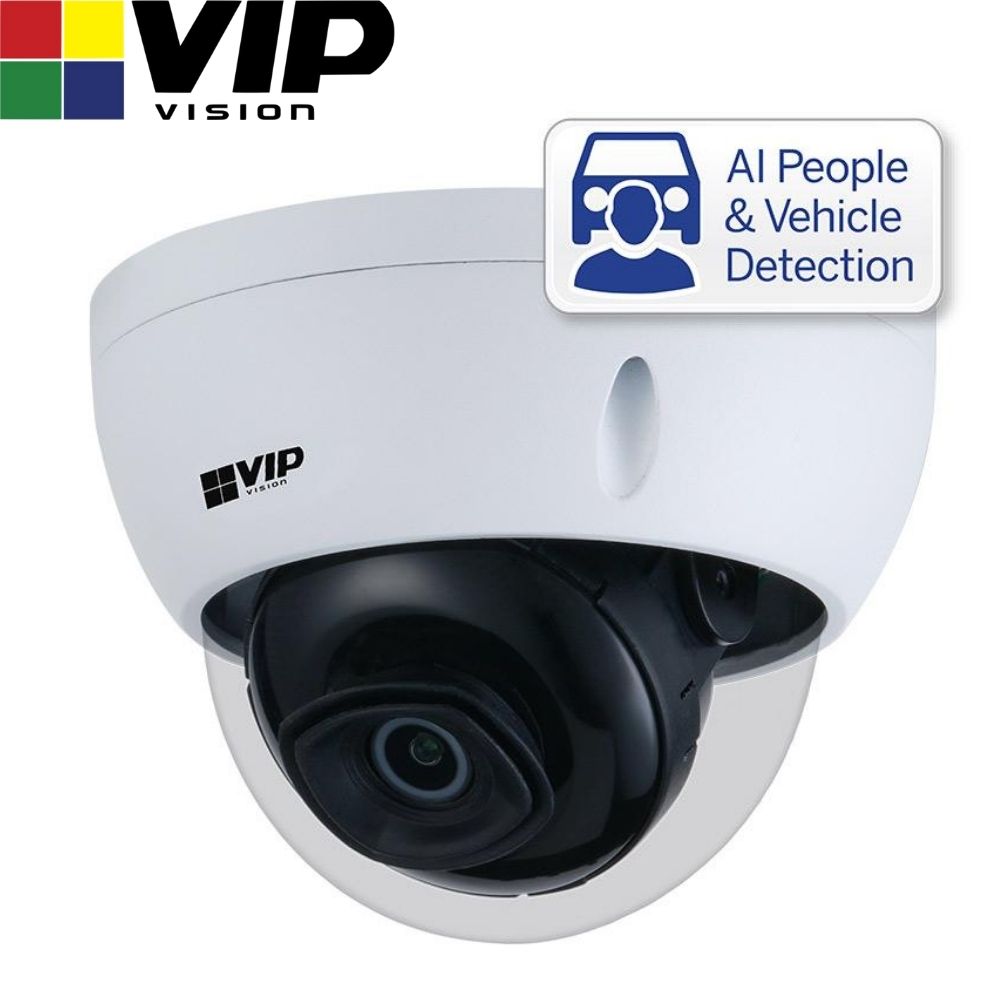

VIP Vision Security Camera: 4MP Dome, Professional AI Series, 2.8mm - VSIPP-4DIRD-I

Description

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Features

  • Stream up to 4.0MP (2688 x 1520) at 25fps
  • 2.8mm fixed lens with 103° viewing angle
  • H.265 encoding for efficient storage & streaming
  • Up to 50m infrared range; true day/night (auto ICR)
  • MicroSD slot for recording at the edge up to 256GB
  • AI powered perimeter protection & smart motion detection (SMD+)
  • Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
  • Back/highlight compensation & true WDR (120dB)
  • 3D digital noise reduction & auto white balance
  • IP67 weather rated housing for outdoor use
  • IK10 vandal resistant metal housing
  • WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!


Tech Specs

VIP Vision VSIPP-4DIRD-I Security Camera

Camera
Image Sensor
1/3’’ 4.0MP Progressive Scan CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM 512MB / 128MB
Min Illumination
0.005 Lux/F1.6 (Color)
S/N Ratio > 56dB
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris
2.8mm Fixed Lens with Fixed Iris
Field of View
Horizontal: 103°, Vertical: 55°
Focus
Fixed / 0.9m Min. Focus
DORI
Detect (25px/m) 56m
Observe (63px/m) 22m
Recognise (125px/m) 11m
Identify (250px/m) 6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) 720p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection N/A
Face Attributes N/A
People Counting N/A
Heat Map N/A
Event Trigger N/A
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access 20 Users
Interface
Video Interface N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485 N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption <7.3W
Operating Conditions
-30°C ~ +60°C / ?95% RH
Ingress Protection IP67
Vandal Resistance IK10
Series
Professional AI Series
Camera Type Dome
Housing Metal
Pan/Tilt/Rotation
Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355°
ePoE No
Dimensions
Ø110mm x 81mm
Net Weight 0.38kg
Warranty (Years) 4



Downloads

VIP Vision VSIPP-4DIRD-I Security Camera

These datasheets may provide more information regarding the product.

Videos

VIP Vision VSIPP-4DIRD-I Security Camera

The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.

Detect Vehicles and People with AI Perimeter Protection


Read more
