The VSIPP-8BIRMG can remotely configure wide or narrow fields of view, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change.
Features

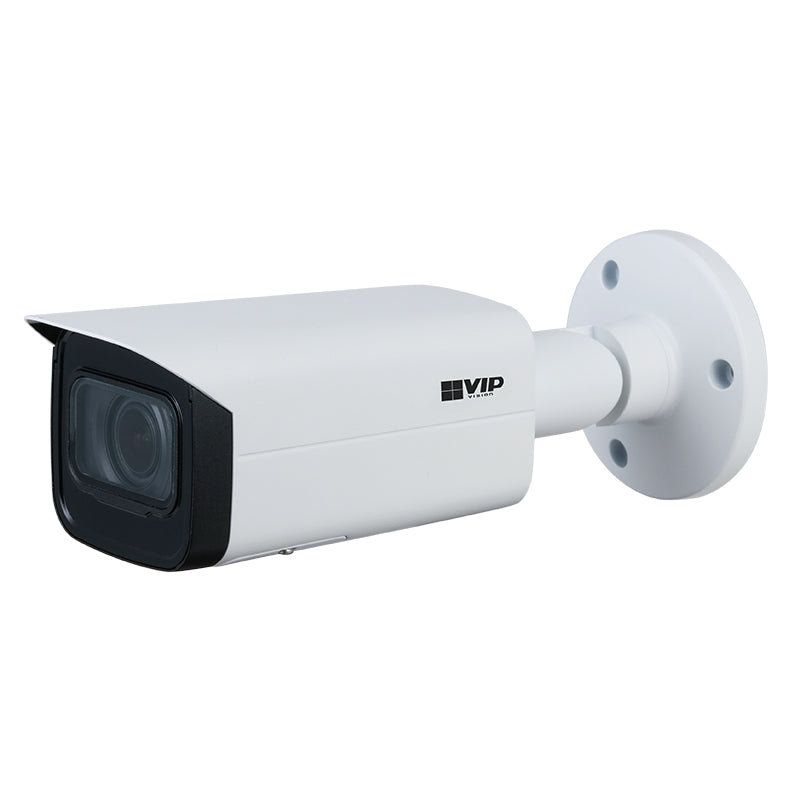

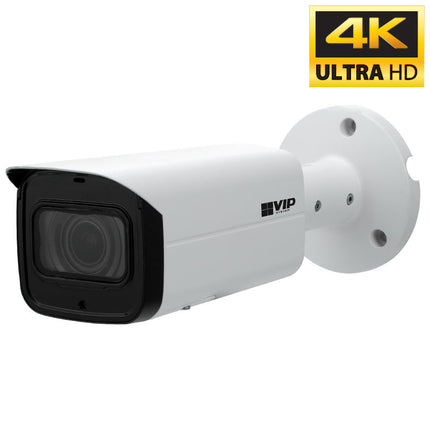

VIP Vision VSIPP-8BIRMG Security Camera
Camera | |
Image Sensor | 1/2.7’’ 8.0MP Progressive Scan CMOS |
Max. Resolution | 8.0 Megapixel |
Effective Pixels | 3840 (H) x 2160 (V) |
RAM / ROM | 512MB / 128MB |
Ultra Low Light Colour | Yes |
Min Illumination | 0.008 Lux/F1.5 (Color) |
S/N Ratio | > 50dB |
Infrared | Yes |
Infrared System | 4 x Infrared LED, 60m range, Auto/manual on/off control |
Lens | |
Lens Type | Motorised Varifocal |
Lens / Iris | 2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris |
Field of View | Horizontal: 113°~31°, Vertical: 58°~17° (5x Optical Zoom) |
Focus | Auto Focus / 0.8m Min. Focus Distance |
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
Detect (25px/m) | 85m (wide) / 280m (tele) |
Observe (63px/m) | 34m (wide) / 112m (tele) |
Recognise (125px/m) | 17m (wide) / 56m (tele) |
Identify (250px/m) | 8m (wide) / 28m (tele) |
Video | |
Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
Frame Rate (Main) | 8.0MP (1 ~ 15fps) / 4.0MP (1 ~ 25fps) |
Frame Rate (Sub) | D1 (1 ~ 25fps) |
Frame Rate (Third) | N/A |
Video Compression | H.265 / H.264 / H.264B / MJPEG |
Bit Rate | H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
Day/Night | Auto (ICR) / Color / B&W |
Lighting Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
Gain Control | Auto / Manual |
Noise Reduction | 3D DNR |
Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
IVS | |
IVS | Yes |
Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
Streaming Method | Unicast / Multicast |
Max. User Access | 20 Users |
RTMP Support | NA |
Interface | |
Video Interface | N/A |
Audio Interface | 1 input, 1 Output / Audio Compression - G.711a; G.711Mu; G726; AAC |
Alarm Interface | 1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC |
RS485 | N/A |
Edge Storage | MicroSD Card (up to 256GB) / NAS |
Interoperability | ONVIF / P2P / CGI / Milestone / Genetec |
Environmental | |
Power Supply | 12VDC / PoE (802.3af) |
Power Consumption | <9.9W |
Operating Conditions | -30°C ~ +60°C / ?95% RH |
Ingress Protection | IP67 |
Weather Resistance | Yes |
Vandal Resistance | N/A |
Series | Professional Series |
Camera Type | Bullet |
Housing | Metal |
Pan/Tilt/Rotation | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
Tri-Axis Mounting | Yes |
ePoE | N/A |
Dimensions | Ø90mm x 244mm |
Net Weight | 0.90kg |
Warranty (Years) | 4 |
