Description
Description

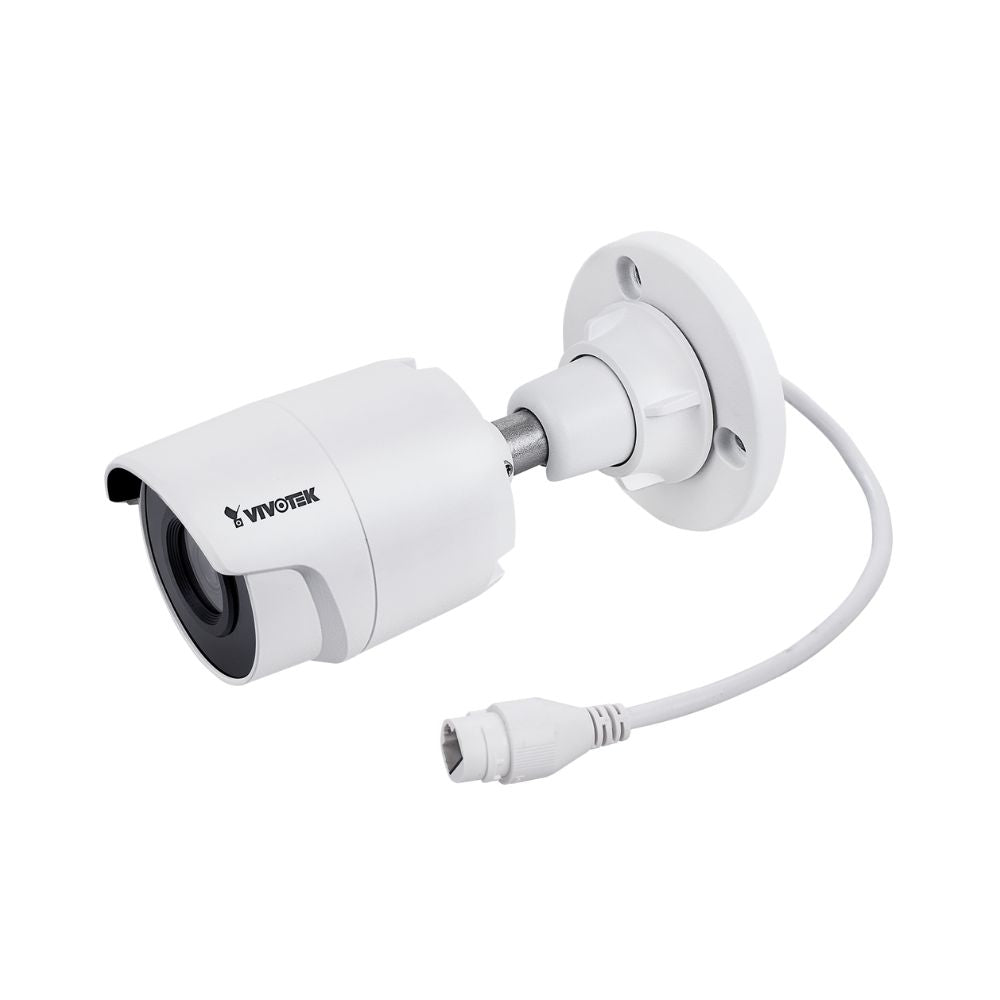

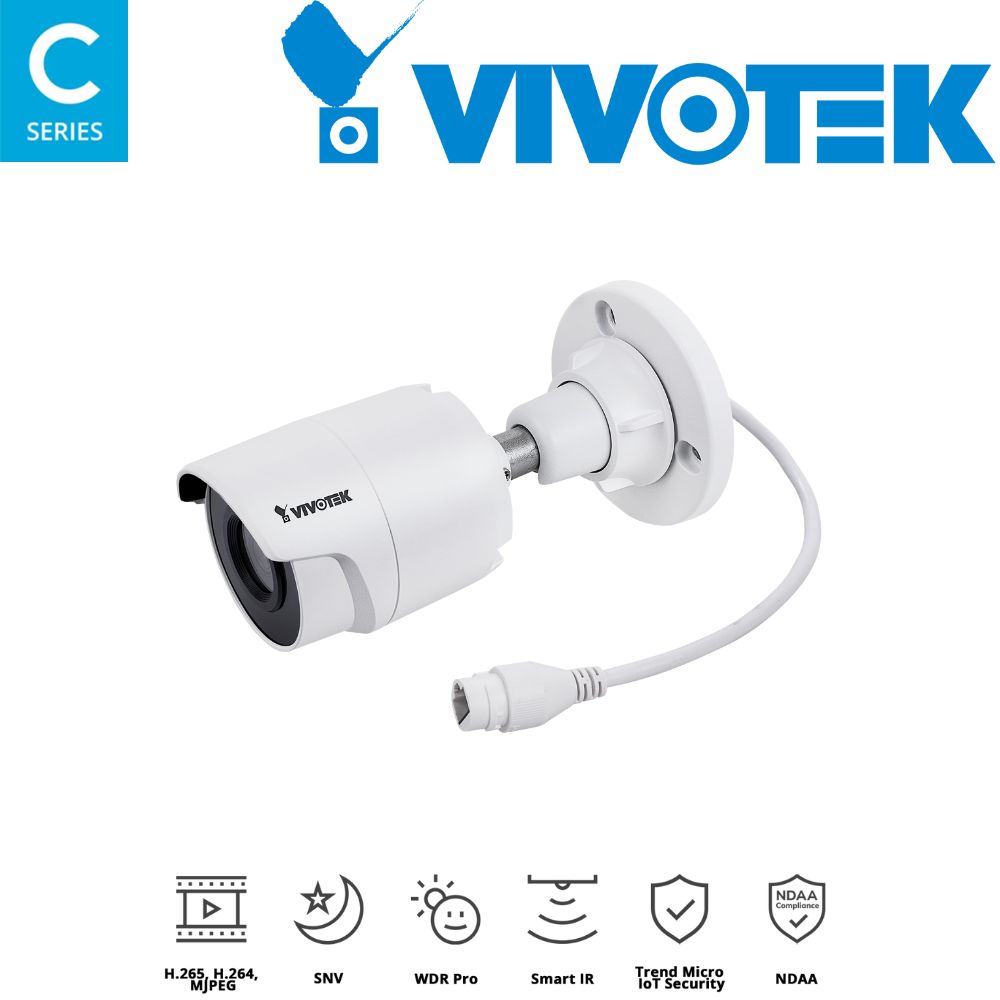

VIVOTEK’s IB9380-H is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.
The IB9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9380-H is encased in IP66 and IK10 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9380-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
* Depending on scenes
Key Features
- H.265 Compression Technology
- 20 fps @ 2560x1920 (WDR Pro on)
- 2.8~12 mm, Remote Focus
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Trend Micro IoT Security
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Built-in Microphone
Datasheet
VIVOTEK C Series 5MP Fixed Bullet Camera-IB9380-H Datasheet
VIVOTEK C Series 5MP Fixed Bullet Camera-IB9380-H QIG
Tech Specs
Tech Specs
System Information | |
CPU |
Multimedia SoC (System on Chip) |
Flash |
128 MB |
Ram |
512 MB |
Camera Features | |
Image Sensor |
1/2.7" Progressive CMOS |
Max. Resolution | 2560x1920 (5MP) |
Lens Type | Fixed-focal |
Focal Length |
f = 3.6 mm |
Aperture |
F2.0
|
Iris Type |
Fixed iris |
Field of View |
76° (Horizontal) 59° (Vertical) 100° (Diagonal) |
Shutter Time |
1/5 sec. to 1/32,000 sec. |
WDR Technology |
WDR Pro |
Day/Night |
Yes |
Removable IR-cut Filter |
Yes |
IR Illuminators |
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
Minimum Illumination |
0.03 lux @ F2.0 (Color) |
Tilt Range |
90° |
Rotation Range | 180° |
Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
Storage |
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
Video | |
Video Compression |
H.265, H.264, MJPEG |
Maximum Frame Rate | 20 fps @ 2560x1920 |
Maximum Streams |
3 video streams (Up to 8 configurable profiles) |
Network | |
Users |
Live viewing for up to 10 clients |
Security |
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
Interface |
10 Base-T/100 Base-TX Ethernet (RJ-45) |
Solution and Integration | |
Video Motion Detection |
Five-window video motion detection |
Alarm and Event | |
Event Trigger |
Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
Event Action |
Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card |
General | |
Connectors |
RJ-45 cable connector for 10/100Mbps Network/PoE connection |
Power Input | IEEE 802.3af PoE Class 2 |
Power Consumption | Max. 6.49 W/3.6 W (IR on/off) |
Dimensions | Ø 91.1 x 176.8 mm |
Weight | 530g |
Certifications | EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252) |
Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
Humidity | 90% |
System Requirements | |
Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
Other Players | VLC: 1.1.11 or above |
Included Accessories | |
Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
Optional Accessories | Please refer to Accessory Selection Guide |
