| Image Sensor |
1/2.7" 6.0MP Progressive Scan CMOS |
| Maximum Resolution |
6.0 Megapixel (3072 × 2048) |
| Effective Pixels |
3072 (H) × 2048 (V) |
| RAM / ROM |
256MB / 128MB |
| Minimum Illumination |
0.007 Lux @ F1.6 (Colour) |
| S/N Ratio |
>56dB |
| Infrared System |
1 × IR LED, Up to 30m Range, Auto/Manual Control |
| Lens Type |
Fixed |
| Lens |
2.8mm F1.6 |
| Field of View |
111° Horizontal, 58° Vertical |
| Focus |
Fixed, 1.1m Close Focus Distance |
| DORI Detection |
Detect: 63m / Observe: 25m / Recognise: 12m / Identify: 6m |
| Recording Resolution |
6.0MP (3072 × 2048) to CIF (352 × 288) |
| Main Stream |
6.0MP (1–20fps), 4.0MP (1–25fps) |
| Sub Stream |
D1 (1–25fps) |
| Third Stream |
N/A |
| Video Compression |
H.265 / H.264 / H.264B / MJPEG |
| Bit Rate |
H.264: 32kbps–8192kbps / H.265: 12kbps–8192kbps |
| Bit Rate Control |
CBR / VBR |
| Day/Night Mode |
Auto (ICR) / Colour / B&W |
| Lighting Compensation |
HLC / BLC / WDR (120dB) |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control |
Auto / Manual |
| Noise Reduction |
3D DNR |
| Image Controls |
Mirror / Flip (0°, 90°, 180°, 270°) |
| Intelligent Functions |
Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart IR |
| Perimeter Protection |
Tripwire & Intrusion with Human & Vehicle Classification |
| Face Detection |
No |
| People Counting |
No |
| Heat Map |
No |
| Event Triggers |
Motion Detection, Video Tampering, Scene Change, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
| Intelligent Search |
Search Tripwire & Intrusion Events by Human or Vehicle via Compatible NVR |
| Ethernet |
RJ-45 (10/100Base-T) |
| Network Protocols |
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| Streaming Method |
Unicast / Multicast |
| Maximum User Access |
20 Users |
| Audio |
Built-in Microphone (G.711a, G.711Mu, G726, G.723, PCM) |
| Edge Storage |
MicroSD Card (up to 256GB), NAS, FTP, SFTP |
| Interoperability |
ONVIF, CGI, P2P, Milestone, Genetec |
| Power Supply |
12VDC / PoE (IEEE 802.3af) |
| Power Consumption |
<7.2W |
| Operating Environment |
-40°C ~ +60°C / Less than 95% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance |
N/A |
| Series |
LA Series |
| Camera Type |
Turret |
| Housing |
Full Metal |
| Pan / Tilt / Rotation |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| ePoE |
No |

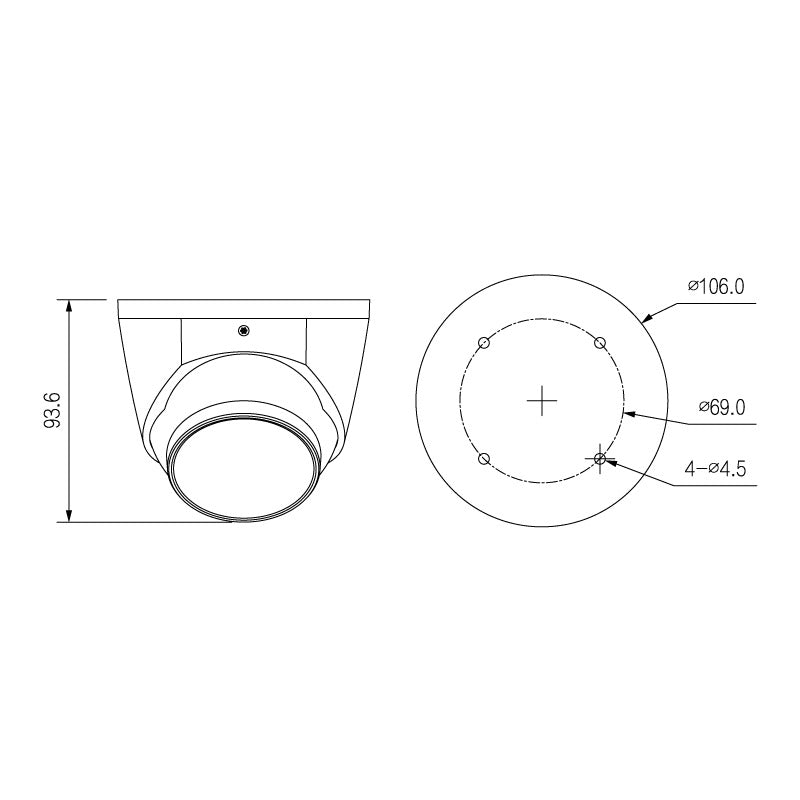

| Dimensions |
Ø106mm × 93.6mm |
| Weight |
0.42kg |
