| Series |
Traffic AI Series |
| Camera Type |
Bullet |
| Image Sensor |
1/1.8" 4.0MP Progressive Scan CMOS |
| Effective Pixels |
2688 (H) × 1520 (V) |
| RAM / ROM |
1 GB / 4 GB |
| Min. Illumination |
0.001 Lux / F1.4 (Color), 0.0002 Lux / F1.4 (IR on) |
| S/N Ratio |
>56 dB |
| Lens / Iris |
2.7 ~ 12mm F1.4 Motorised Varifocal Lens with Auto Iris |
| Field of View |
Horizontal: 92°~46°, Vertical: 49°~26°, Diagonal: 109°~53° |
| Infrared System |
4 × IR LEDs (10m for ANPR / 30m for video) |
| Video Resolution |
4.0MP (2688 × 1520) to CIF (352 × 240) |
| Frame Rate |
Main: 4.0MP (1–25fps), Sub: 720p (1–25fps) |
| Video Compression |
H.265 / H.264 / MJPEG |
| Bit Rate Control |
CBR / VBR |
| Lighting Compensation |
BLC / HLC / WDR (140dB) |
| White Balance |
Auto / Manual / Outdoor / Natural / Street Lamp |
| Noise Reduction |
3D DNR |
| IVS Intelligent Functions |
Number Plate Edge Enhancement, ANPR, Vehicle Detection, Snapshot, OSD, Barrier Control, Vehicle Data Structuring |
| Vehicle Recognition |
Vehicle Type, Speed, Logo, Series, Colour, Number Plate, Features of Driver & Passenger, ≥96% accuracy |
| Detection Range / Rate |
3 ~ 8m (lane width: 3 ~ 4m) / ≥99% |
| Max. Detection Speed |
80km/h |
| Max. Passed Vehicles |
10,000 |
| Whitelist / Blacklist |
110,000 each |
| Ethernet |
RJ-45 (10/100/1000 Base-T) |
| Protocols |
HTTP, HTTPS, TCP/IP, ARP, RTSP, RTP, UDP, FTP, DHCP, NTP, SNMP, IPv4/v6, DDNS, PPPoE |
| Max. User Access |
20 |
| Audio Interface |
Built-in Mic (3m pick-up) & Built-in Speaker |
| Alarm Interface |
2 Input / 2 Output |
| RS485 |
2 Ports |
| Edge Storage |
MicroSD Card (up to 256GB) |
| Power Supply |
12VDC / PoE+ (802.3at) |
| Power Consumption |
<6W (standby) / <12W (light) / <17W (speaker + lights) |
| Operating Conditions |
-30°C ~ +65°C / 10 ~ 90% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Housing Material |
Aluminium Alloy + Plastic |

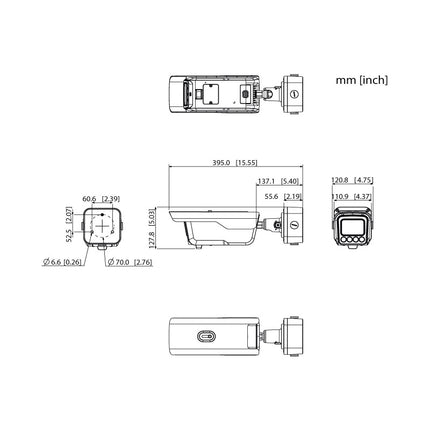

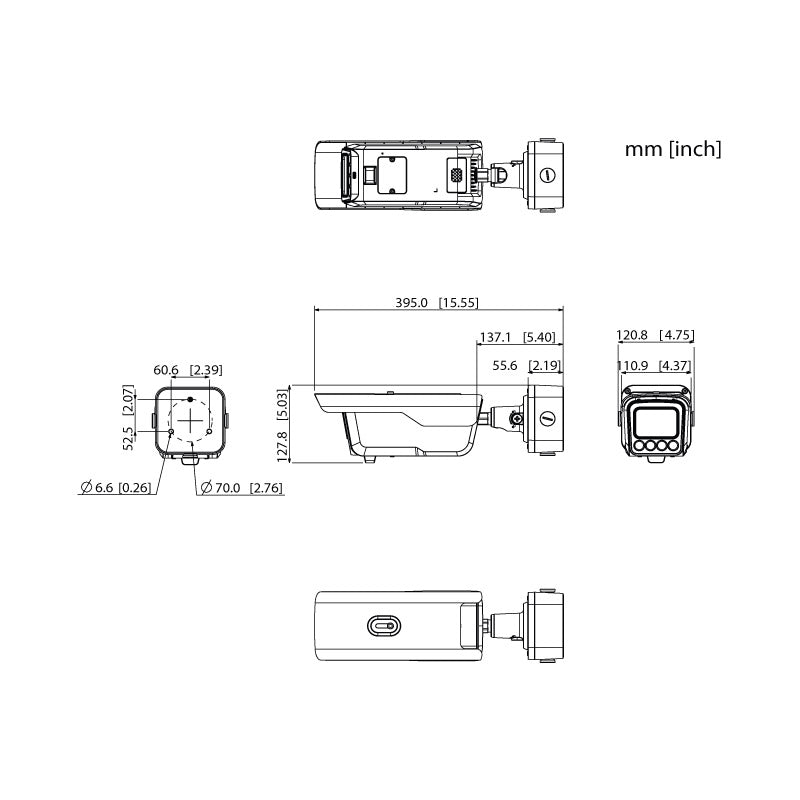

| Dimensions |
395 × 121 × 128mm |
| Net Weight |
2.3kg |
