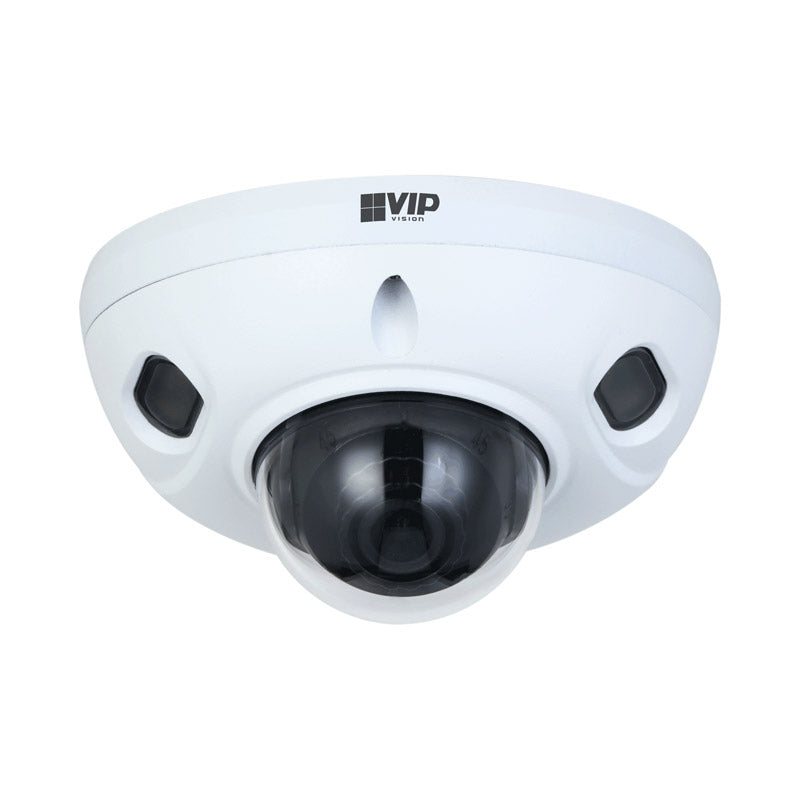

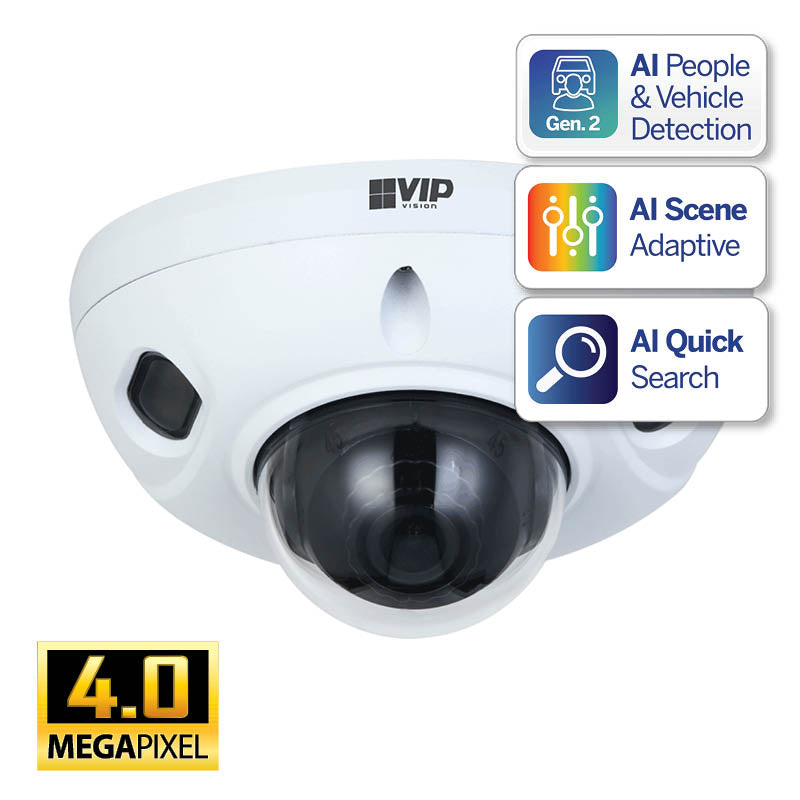

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.
Features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 102° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 30m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• IK10 vandal resistant metal housing
Downloads
Tech Specs
| Specification |
Details |
| Alarm Interface |
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC |
| Audio Interface |
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; PCM |
| Bit Rate |
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Wedge Dome |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
64m |

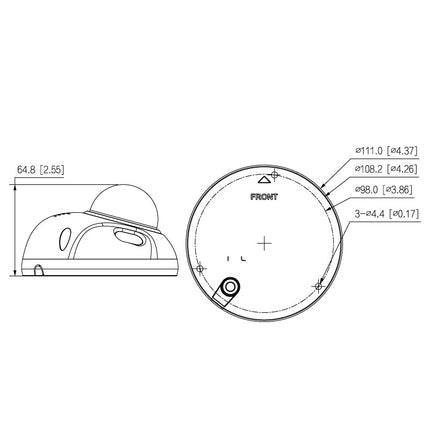

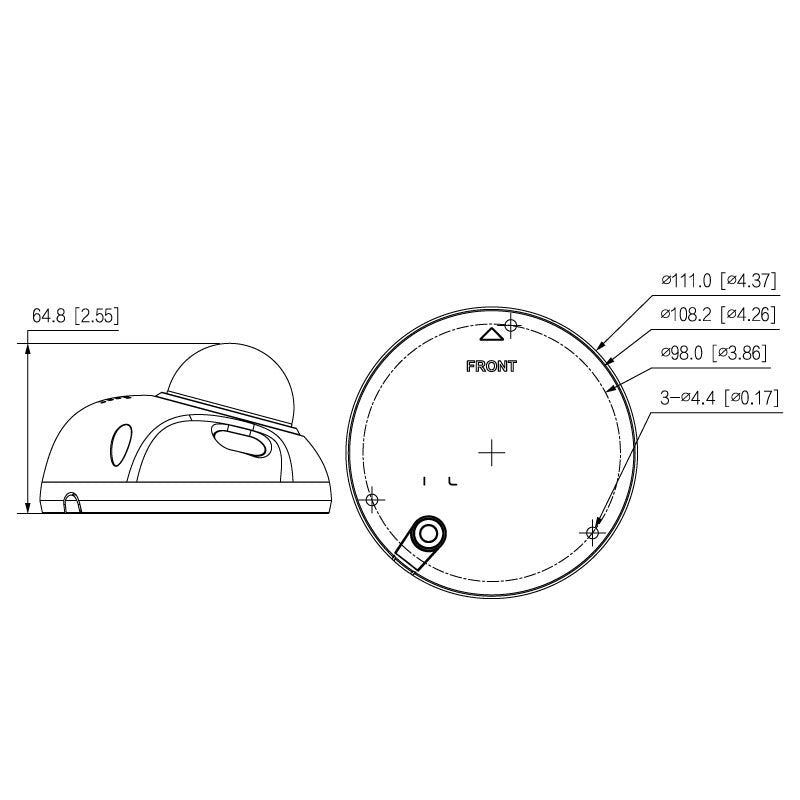

| Dimensions |
Ø111.0mm x 64.8mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP / SFTP |
| Effective Pixels |
2688 (H) x 1520 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
| Face Attributes |
N/A |
| Face Detection |
N/A |
| Field of View |
Horizontal: 102°, Vertical: 54° |
| Focus |
Auto Focus / 0.9m Min. Focus Distance |
| Frame Rate (Main) |
4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
6m |
| Image Sensor |
1/3’’ 4.0MP Progressive Scan CMOS |
| Infrared System |
2 x Infrared LED, 30m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Intelligent Search |
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle |
| Interoperability |
ONVIF / P2P / CGI / Milestone / Genetec |
| Lens / Iris |
2.8mm Fixed Focal Lens with Fixed Iris |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) / AI SSA |
| Max. Resolution |
4.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
0.005 Lux/F1.6 (Color) |
| Net Weight |
0.42kg |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
25m |
| Operating Conditions |
-40°C ~ +60°C / ≤95% RH |
| Pan/Tilt/Rotation |
Pan: -30° ~ 35°, Tilt: 0° ~ 70°, Rotation: 0° ~ 355° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles) |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution) |
| Power Consumption |
<7.2W |
| Power Supply |
12VDC / PoE (802.3af) |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| RAM / ROM |
512MB / 128MB |
| Recognise (125px/m) |
13m |
| Resolution |
4.0MP (2688 x 1520) to CIF (352 x 288) |
| RS485 |
N/A |
| S/N Ratio |
N/A |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
Unicast / Multicast |
| Vandal Resistance |
IK10 |
| Video Compression |
H.265 / H.264 / H.264H / H.264B / MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
