Special Order
Please check with our team for information on availability.

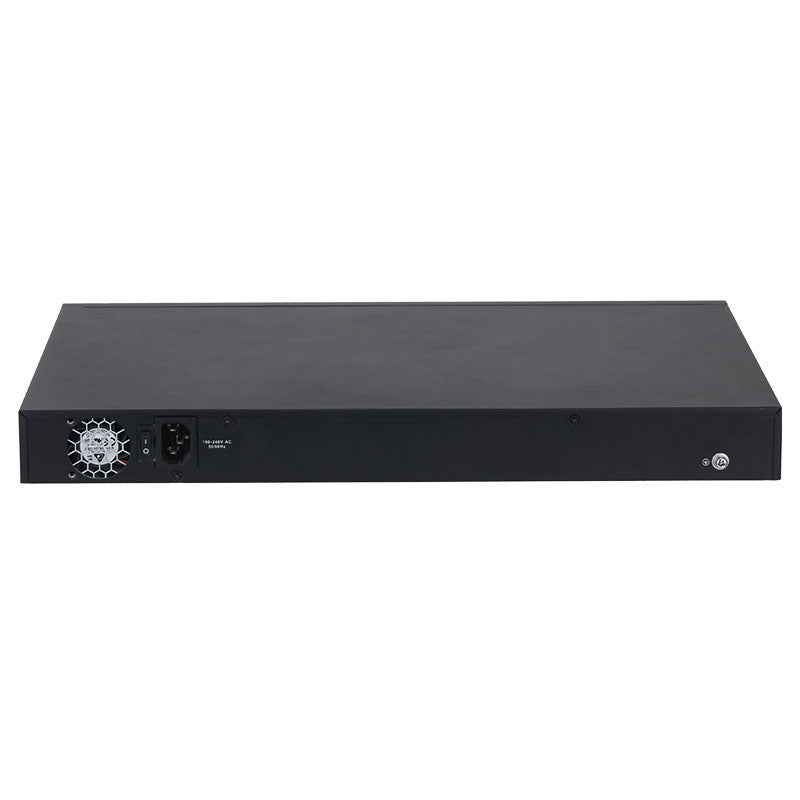

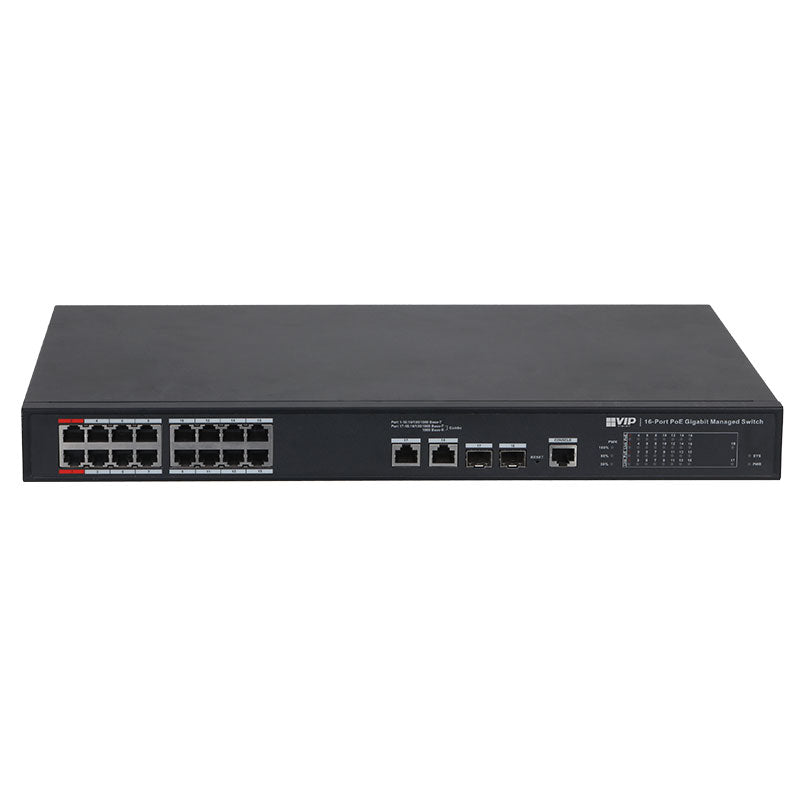

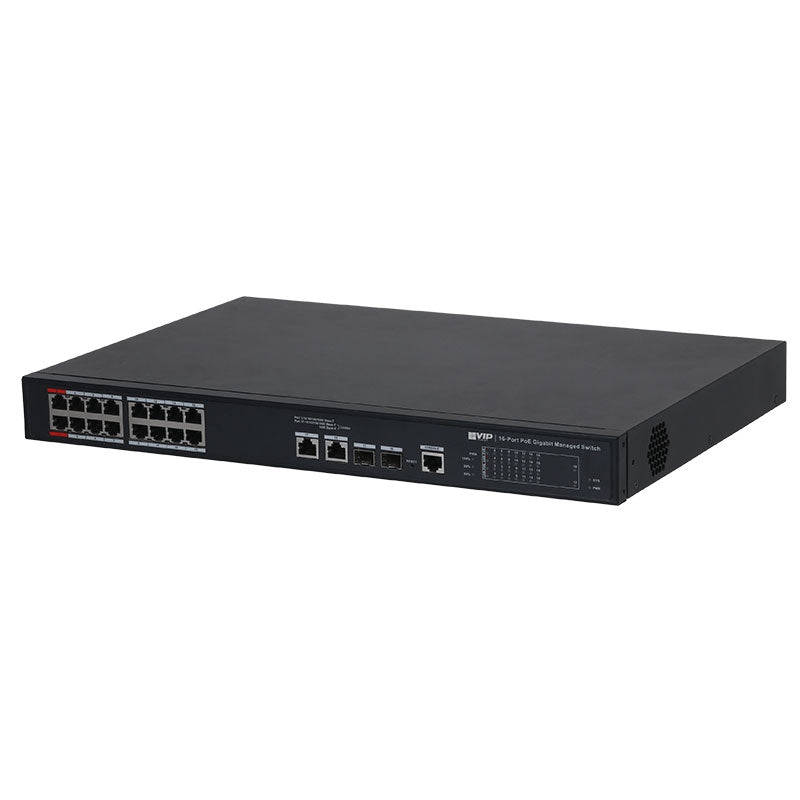

The VSPOE-SWB16G3 is a rackmount, gigabit Hi-PoE switch in 16 ports. This switch is a flexible, high speed networking solutions, suitable for high-powered PoE devices. The series offers web management and L2 management for network traffic quality of service, VLAN and a suite of other features
Features:
• 14 x PoE+ 1000Mbps device ports
• 2 x Hi-PoE 1000Mbps device ports
• 2 x 1000Mbps Base-T uplink ports
• 2 x 1000Mbps Base-X (SFP) uplink combo ports
• Total PoE power load up to 240W
• L2 management for network transmission configuration
• Rackmount tabs for 19” cabinet installation
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 4kV
Downloads
Tech Specs
| Specification |
Details |
| Device Ports |
Port 1-16: 16 x 10/100/1000M Base-T (PoE) |
| DHCP |
DHCP Client / DHCP Server / DHCP Snooping |
| Dimensions |
440 x 300 x 44mm |
| Exchange Mode |
Store & forward |
| Extend Mode |
N/A |
| Flow Control |
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex) |
| Input Power |
100 ~ 240VAC |
| Lightning Protection |
Common Mode: 4kV / Differential Mode: 2kV |
| LLDP |
Support |
| MAC Address Capacity |
8K |
| Mounting Options |
Rackmount Tabs (1RU) |
| Network Management |
Web (http and https protocol), iLinksView, CLI; SNMP V1/V2C/V3 |
| Network Time Protocol |
Support |
| Operating Environment |
-10° ~ 55°C / RH90% (max) |
| Packet Forwarding Rate |
26.78Mbps |
| PoE |
Yes |
| PoE Management |
Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support |
| PoE Protocol |
IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt |
| Port Aggregation |
Manual aggregation / LACP protocol |
| Port Mirroring |
Many-to-one port mirroring |
| Ports |
16 ports |
| Quality of Service |
8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP |
| Security Features |
User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection |
| Spanning Tree Protocol |
STP / RSTP / MSTP |
| Speed |
Gigabit 10/100/1000 |
| Switch Management |
Managed |
| Switch Power Load |
Port 1-2: ≤90W / Ports 3-16: ≤30W (Total: ≤240W) |
| Switching Capacity |
52Gbps |
| System Maintenance |
Configuration file upload/download, Supports updated packet upload , System log |
| Uplink Ports |
Port 17-18: 2 x 10/100/1000M Base-T (uplink) / Port 17-18: 2 x 1000M Base-X (uplink) (combo) |
| Virtual LAN |
IEEE802.1q Standard VLAN / VLAN Amount: 4K |
| Weight |
3.75kg |
4-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
