| General |
| Main Processor |
Quad-core embedded processor |
| Operating System |
Embedded Linux |
| Video Input |

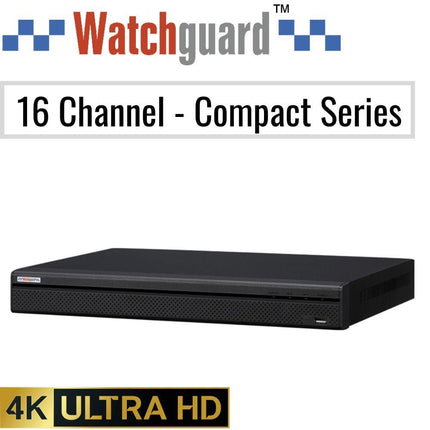

16 channels |
| Two-way Talk |
1 channel input, 1 channel output, RCA |
| Interoperability |
ONVIF 2.4, SDK, CGI conformant |
| Display |
| Video Output |
1 x HDMI, 1 x VGA |
| Display Resolution |
Configurable from 3840 x 2160 to 1024 x 768 |
| Display Split |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Recording Resolution |
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Incoming Bandwidth |
200Mbps |
| Video Compression |
H.265 / H.264 |
| Bit Rate |
16kbps ~ 20Mbps per channel |
| Record Modes |
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop |
| Record Interval |
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s |
| Features |
| Alarm Input / Output |
4 channel |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
| Video Detection |
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering |
| Playback Sync |
1/4/8/16 |
| Search Modes |
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
| Backup Modes |
USB Device / Network |
| Network |
| Ethernet |
1 x RJ-45 port (10/100/1000Mbps) |
| Power over Ethernet |
16 ports (IEEE802.3at/af) |
| Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip |
|
|
| Optical Interface |
N/A |
| Max. User Access |
128 users |
| Remote View |
iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality) |
| Storage |
| Internal HDD |
2 x SATA ports up to 10TB, max. 20TB HDD capacity |
| HDD Modes |
Single (no RAID compatibility) |
| USB Interface |
2 ports: Rear USB2.0 / Front USB2.0 |
| Auxiliary Inputs |
1 x RS232 port |
| Environment |
| Power Supply |
100~240VAC / 50/60 Hz |
| Power Consumption |
< 13.2W (without HDD) |
| PoE |
Yes |
| Operating Environment |
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa |
| Rackmountable |
No |
| Rackmount Units |
Compact 1RU |
| Dimensions |
375 x 328 x 53mm |
| Weight |
2.60kg (without HDD) |
| Warranty (Years) |
4 |
