Watchguard Compact Security Kit: 8MP NVR, 4 X 4MP Mini Bullets, 4 X 4MP Mini Domes, 2TB HDD - NVRKIT-C842F

Description

Description

Watchguard™ Compact Series CCTV kits are entry-level, high definition surveillance systems ideal for homes and businesses. These CCTV packages include weather resistant cameras capable of recording double Full HD quality at 20fps.

The NVR8COM2 is a compact network video recorder with a built-in 8 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265 compression technology and a quad-core processor.

The VSIPC-4BIRS and VSIPC-4DIRD boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.


KIT FEATURES:

  • Records up to 4K Ultra HD resolution (3840 x 2160)
  • 8CH NVR with 8 Power over Ethernet PoE ports
  • 1 x SATA port up to 10TB each, max. 10TB HDD capacity
  • HDMI & VGA simultaneous video output
  • Backup via external USB device or local network
  • Remote view in seconds with setup via QR code
  • H.265 / H.264 video compression technology
  • Stream up to 4 megapixel (2560 x 1440) at 20fps
  • 2.8mm fixed lens with wide 101° viewing angle
  • 30m infrared range; true day/night (auto ICR)
  • 3D digital noise reduction 3DDNR, auto white balance AWB, Digital WDR
  • Motion Detection, Region of Interest, Privacy Masking, Smart Infrared, Motion Zones, Video Loss & Tampering, Record Scheduling
  • Supports Power over Ethernet PoE (802.3af )
  • Weatherproof IP67 & Vandalproof IK10

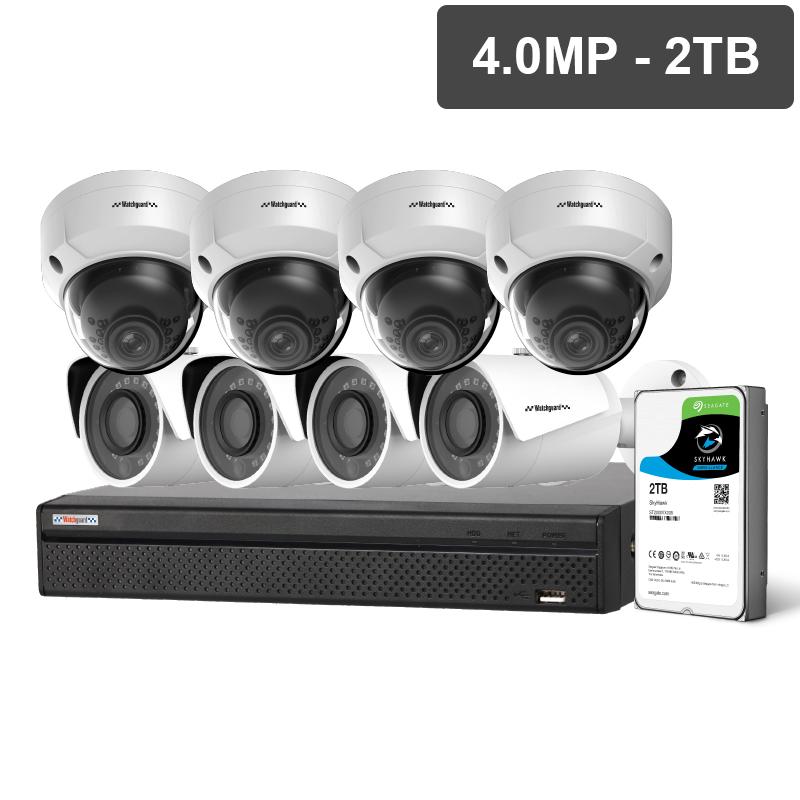

KIT INCLUDES:

  • 1 x Compact 8 channel PoE NVR + pre-installed 2TB HDD
  • 4 x 4.0MP Fixed Mini Domes
  • 4 x 4.0MP Fixed Mini Bullets
  • 1 x 1.5m CAT5 patch cable for networking
  • 1 x 1m HDMI output cable
  • 1 x NVR Remote
  • 1 x Mouse

Tech Specs

Watchguard Compact 8 Channel Network Video Recorder: 8MP (4K) Ultra HD - NVR8COM2

General
Main Processor Quad-core embedded processor
Operating System Embedded Linux
Video Input 8 channels
Two-way Talk 1 channel input, 1 channel output, RCA
Interoperability ONVIF 2.4, CGI conformant
Display
Video Output 1 x HDMI, 1 x VGA
Display Resolution Configurable from 3840 x 2160 to 1024 x 768
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Incoming Bandwidth 80Mbps
Video Compression H.265 / H.264
Bit Rate 16kbps ~ 20Mbps per channel
Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output N/A
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync 1/4
Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes USB Device / Network
Network
Ethernet 1 x RJ-45 port (10/100Mbps)
Power over Ethernet 8 ports (IEEE802.3at/af)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
Optical Interface N/A
Max. User Access 128 users
Remote View iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
Storage
Internal HDD 1 x SATA port up to 10TB, max. 10TB HDD capacity
HDD Modes Single (no RAID compatibility)
USB Interface 2 ports: Rear USB2.0 / Front USB2.0
Auxiliary Inputs N/A
Environment
Power Supply 48VDC / 1.5A
Power Consumption < 7.5W (without HDD)
PoE Yes
Operating Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Rackmountable No
Rackmount Units Compact 1RU
Dimensions 260 x 225 x 48mm
Weight 0.80kg (without HDD)
Warranty (Years) 4

Watchguard Compact Security Camera: 4MP Mini Bullet, 2.8mm Fixed Lens - VSIPC-4BIRS

Camera
Image Sensor 1/3" 4.0MP Progressive Scan CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels 2560 (H) x 1440 (V)
RAM / ROM 256MB / 16MB
Ultra Low Light Colour No
Min Illumination 0.09 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)
S/N Ratio > 50dB
Infrared Yes
Infrared System 18 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris 2.8mm F2.0 Fixed Lens
Field of View Horizontal: 101°, Vertical: 54°
Focus Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 56m
Observe (63px/m) 22m
Recognise (125px/m) 11m
Identify (250px/m) 6m
Video
Resolution 4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main) 4.0MP (1 ~ 20fps)
Frame Rate (Sub) D1 (1 ~ 20fps)
Frame Rate (Third) N/A
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / Digital WDR
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS No
Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
RTMP Support No
Interface
Video Interface N/A
Audio Interface N/A
Alarm Interface N/A
RS485 N/A
Edge Storage NAS / Local PC
Interoperability ONVIF Profile S&G / API
Environmental
Power Supply 12VDC / PoE (802.3af) (Class 0)
Power Consumption <4.2W
Operating Conditions -30° ~ +60° C / Less than 95% RH
Ingress Protection IP67
Weather Resistance Yes
Vandal Resistance N/A
Series Compact Series
Camera Type Bullet
Housing Metal
Pan/Tilt/Rotation Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
Tri-Axis Mounting No
ePoE No
Dimensions Ø72mm x 165mm
Net Weight Ø72mm x 165mm
Net Weight 0.38kg
Warranty (Years) 4

Watchguard Compact Security Camera: 4MP Mini Dome, 2.8mm Fixed Lens - VSIPC-4DIRD

Camera
Image Sensor 1/3" 4.0MP Progressive Scan CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels 2560 (H) x 1440 (V)
RAM / ROM 256MB / 16MB
Ultra Low Light Colour No
Min Illumination 0.09 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)
S/N Ratio > 50dB
Infrared Yes
Infrared System 24 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris 2.8mm F2.0 Fixed Lens
Field of View Horizontal: 101°, Vertical: 54°
Focus Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 56m
Observe (63px/m) 22m
Recognise (125px/m) 11m
Identify (250px/m) 6m
Video
Resolution 4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main) 4.0MP (1 ~ 20fps)
Frame Rate (Sub) D1 (1 ~ 20fps)
Frame Rate (Third) N/A
Video Compression H.265+ / H.265 / HH.265+ / H.265 / H.264+ / H.264 / MJPEG.264+ / H.264 / MJPEG
Bit Rate H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / Digital WDR
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS No
Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
RTMP Support No
Interface
Video Interface N/A
Audio Interface N/A
Alarm Interface N/A
RS485 N/A
Edge Storage NAS / Local PC

Read more

Watchguard Compact Security Kit: 8MP NVR, 4 X 4MP Mini Bullets, 4 X 4MP Mini Domes, 2TB HDD - NVRKIT-C842F

Product form

SKU: NVRKIT-C842F

Out of stock

$1,258.00 Incl. GST
