Watchguard Compact Security Kit: 8MP NVR, 8 x 4MP Bullets, 8 X 4MP Domes, 4TB HDD

Watchguard SKU: NVRKIT-C1644M

Watchguard Compact Security Kit: 8MP NVR, 8 x 4MP Bullets, 8 X 4MP Domes, 4TB HDD

Watchguard SKU: NVRKIT-C1644M
Watchguard Compact Security Kit: 8MP NVR, 8 x 4MP Bullets, 8 X 4MP Domes, 4TB HDD
Regular price $4,569.00
/
Tax included. Shipping calculated at checkout.
Only 0 items in stock!
IN STOCK

Watchguard Compact Security Kit: 8MP NVR, 8 x 4MP Bullets, 8 X 4MP Domes, 4TB HDD

Watchguard SKU: NVRKIT-C1644M
$4,569.00
Description
Description

Watchguard™ Compact Series CCTV kits are entry-level, high definition surveillance systems ideal for homes and businesses. These CCTV packages include motorised, weather resistant cameras capable of recording double Full HD quality at 20fps.

    The NVR16COM2 is a compact network video recorder with a built-in 16 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265 compression technology and a quad-core processor.

    The VSIPC-4BIRMG and VSIPC-4DIRMD boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

    KIT FEATURES:

    • Records up to 4K Ultra HD resolution (3840 x 2160)
    • 16CH NVR with 16 Power over Ethernet PoE ports
    • 2 x SATA port up to 10TB each, max. 20TB HDD capacity
    • HDMI & VGA simultaneous video output
    • Remote view in seconds with setup via QR code
    • Stream up to 4.0MP (2560 x 1440) at 20fps
    • 2.8~12mm motorised varifocal lens (94°~33°)
    • Up to 60m infrared range; true day/night (auto ICR)
    • H.265+/H.265/ H.264+/H.264 triple-stream encoding
    • 3D digital noise reduction (3DDNR), auto white balance (AWB), & Digital WDR
    • Region of Interest, Privacy Masking, Smart Infrared, Motion Detection, Motion Zones, Video Loss, Tampering, & Record Scheduling
    • Weatherproof (IP67) & Vandalproof (IK10)
    • Supports Power over Ethernet PoE (802.3af)

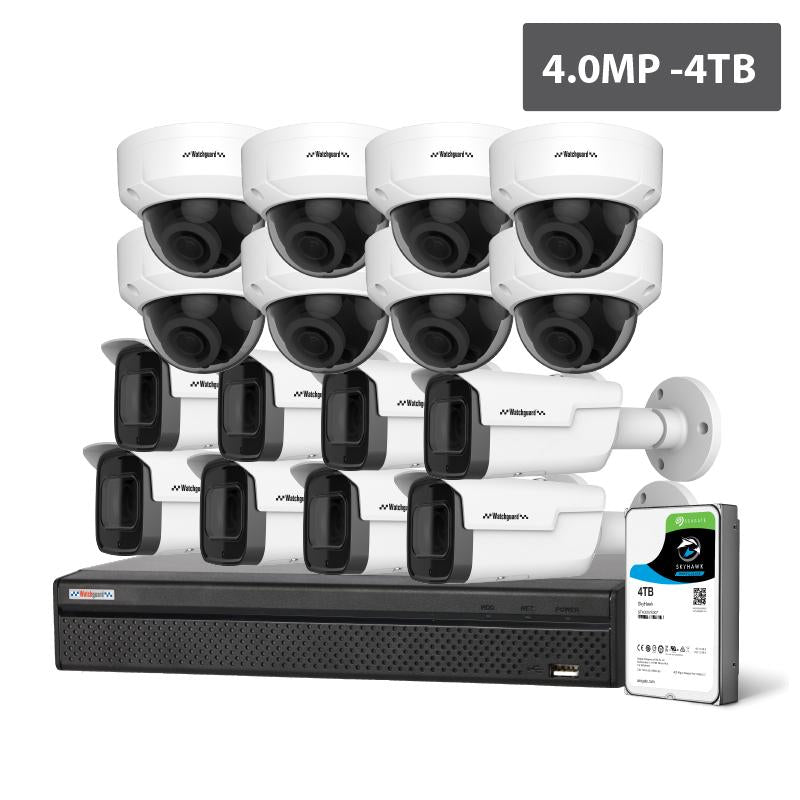

    KIT INCLUDES:

    • 1 x Compact 16 channel PoE NVR + pre-installed 4TB HDD
    • 8 x 4.0MP Motorised Domes
    • 8 x 4.0MP Motorised Bullets
    • 1 x 1.5m CAT5 patch cable for networking
    • 1 x 1m HDMI output cable
    • 1 x NVR Remote
    • 1 x Mouse

    Tech Specs
    Tech Specs

    Watchguard Compact 16 Channel Network Video Recorder: 8MP (4K) Ultra HD - NVR16COM2

    General
    Main Processor Quad-core embedded processor
    Operating System Embedded Linux
    Video Input 16 channels
    Two-way Talk 1 channel input, 1 channel output, RCA
    Interoperability ONVIF 2.4, SDK, CGI conformant
    Display
    Video Output 1 x HDMI, 1 x VGA
    Display Resolution Configurable from 3840 x 2160 to 1024 x 768
    Display Split 1/4/8/9/16
    OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
    Recording
    Recording Resolution Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
    Incoming Bandwidth 200Mbps
    Video Compression H.265 / H.264
    Bit Rate 16kbps ~ 20Mbps per channel
    Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
    Record Interval 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
    Features
    Alarm Input / Output 4 channel
    Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
    Video Detection Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
    Playback Sync 1/4/8/16
    Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
    Backup Modes USB Device / Network
    Network
    Ethernet 1 x RJ-45 port (10/100/1000Mbps)
    Power over Ethernet 16 ports (IEEE802.3at/af)
    Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
    Optical Interface N/A
    Max. User Access 128 users
    Remote View iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
    Storage
    Internal HDD 2 x SATA ports up to 10TB, max. 20TB HDD capacity
    HDD Modes Single (no RAID compatibility)
    USB Interface 2 ports: Rear USB2.0 / Front USB2.0
    Auxiliary Inputs 1 x RS232 port
    Environment
    Power Supply 100~240VAC / 50/60 Hz
    Power Consumption < 13.2W (without HDD)
    PoE Yes
    Operating Environment -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
    Rackmountable No
    Rackmount Units Compact 1RU
    Dimensions 375 x 328 x 53mm
    Weight 2.60kg (without HDD)
    Warranty (Years) 4

    Watchguard Compact Security Camera: 4MP, 2.8mm~12mm Varifocal Lens, Bullet - VSIPC-4BIRMG

    Camera
    Image Sensor 1/3" 4.0MP Progressive Scan CMOS
    Max. Resolution 4.0 Megapixel
    Effective Pixels 2560 (H) x 1440 (V)
    RAM / ROM 256MB / 16MB
    Ultra Low Light Colour No
    Min Illumination 0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
    S/N Ratio > 50dB
    Infrared Yes
    Infrared System 4 x Infrared LED, 60m range, Auto/manual on/off control
    Lens
    Lens Type Motorised Varifocal
    Lens / Iris 2.8mm~12mm F1.8 Motorised Varifocal Lens
    Field of View Horizontal: 94°~33°, Vertical: 51°~19° (4x Optical Zoom)
    Focus Fixed
    DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
    Detect (25px/m) 66m (wide) / 200m (tele)
    Observe (63px/m) 26m (wide) / 80m (tele)
    Recognise (125px/m) 13m (wide) / 40m (tele)
    Identify (250px/m) 7m (wide) / 20m (tele)
    Video
    Resolution 4.0MP (2560 x 1440) to CIF (352 x 288)
    Frame Rate (Main) 4.0MP (1 ~ 20fps)
    Frame Rate (Sub) D1 (1 ~ 25fps)
    Frame Rate (Third) N/A
    Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
    Bit Rate H.265: 6 ~ 6144Kbps / H.264: 16 ~ 6144Kbps
    Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
    Day/Night Auto (ICR) / Color / B&W
    Lighting Compensation BLC / HLC / Digital WDR
    White Balance Auto / Natural / Street Lamp / Outdoor / Manual
    Gain Control Auto / Manual
    Noise Reduction 3D DNR
    Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
    IVS
    IVS No
    Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
    Network
    Ethernet RJ-45 (10/100Base-T)
    Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users / 20 Users
    RTMP Support No
    Interface
    Video Interface N/A
    Audio Interface N/A
    Alarm Interface N/A
    RS485 N/A
    Edge Storage MicroSD Card (up to 128GB) / NAS / Local PC
    Interoperability ONVIF Profile S&G / API
    Environmental
    Power Supply 12VDC / PoE (802.3af) (Class 0)
    Power Consumption <2.2W / 9.8W (IR On)
    Operating Conditions -30° ~ +60° C / Less than 95% RH
    Ingress Protection IP67
    Weather Resistance Yes
    Vandal Resistance N/A
    Series Compact Series
    Camera Type Bullet
    Housing Metal
    Pan/Tilt/Rotation Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
    Tri-Axis Mounting No
    ePoE No
    Dimensions 244mm x 79mm x 76mm
    Net Weight 0.84kg
    Warranty (Years) 4

    Watchguard Compact Security Camera: 4MP, 2.8mm~12mm Varifocal Lens, Dome - VSIPC-4DIRMD

    Camera
    Image Sensor 1/3" 4.0MP Progressive Scan CMOS
    Max. Resolution 4.0 Megapixel
    Effective Pixels 2560 (H) x 1440 (V)
    RAM / ROM 256MB / 16MB
    Ultra Low Light Colour No
    Min Illumination 0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
    S/N Ratio > 50dB
    Infrared Yes
    Infrared System 2 x Infrared LED, 30m range, Auto/manual on/off control
    Lens
    Lens Type Motorised Varifocal
    Lens / Iris 2.8mm~12mm F1.8 Motorised Varifocal Lens
    Field of View Horizontal: 94°~33°, Vertical: 51°~19° (4x Optical Zoom)
    Focus Fixed
    DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
    Detect (25px/m) 66m (wide) / 200m (tele)
    Observe (63px/m) 26m (wide) / 80m (tele)
    Recognise (125px/m) 13m (wide) / 40m (tele)
    Identify (250px/m) 7m (wide) / 20m (tele)
    Video
    Resolution 4.0MP (2560 x 1440) to CIF (352 x 288)
    Frame Rate (Main) 4.0MP (1 ~ 20fps)
    Frame Rate (Sub) D1 (1 ~ 25fps)
    Frame Rate (Third) N/A
    Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
    Bit Rate H.265: 6 ~ 6144Kbps / H.264: 16 ~ 6144Kbps
    Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
    Day/Night Auto (ICR) / Color / B&W
    Lighting Compensation BLC / HLC / Digital WDR
    White Balance Auto / Natural / Street Lamp / Outdoor / Manual
    Gain Control Auto / Manual
    Noise Reduction 3D DNR
    Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
    IVS
    IVS No
    Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
    Network
    Ethernet RJ-45 (10/100Base-T)
    Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users / 20 Users
    RTMP Support No
    Interface
    Video Interface N/A
    Audio Interface N/A
    Alarm Interface N/A
    RS485 N/A
    Edge Storage MicroSD Card (up to 128GB) / NAS / Local PC
    Interoperability
