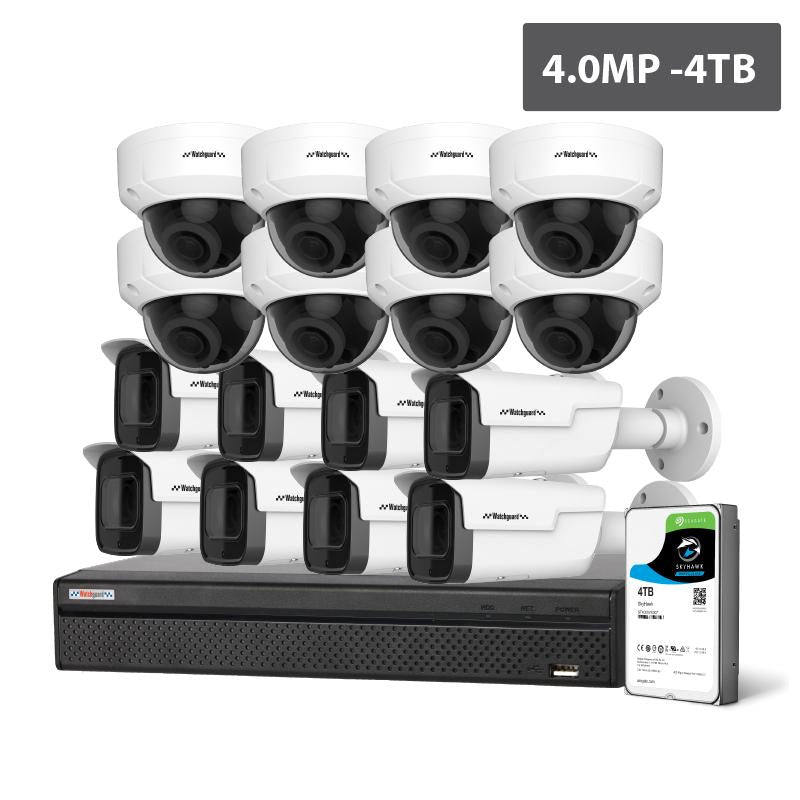

Watchguard Compact Security Kit: 8MP NVR, 8 X 4MP Mini Bullets, 8 X 4MP Mini Domes, 4TB HDD

Watchguard SKU: NVRKIT-C1644F

Watchguard Compact Security Kit: 8MP NVR, 8 X 4MP Mini Bullets, 8 X 4MP Mini Domes, 4TB HDD

Watchguard SKU: NVRKIT-C1644F
Watchguard Compact Security Kit: 8MP NVR, 8 X 4MP Mini Bullets, 8 X 4MP Mini Domes, 4TB HDD
Regular price $3,345.00
/
Tax included. Shipping calculated at checkout.
Only 0 items in stock!
IN STOCK

Watchguard Compact Security Kit: 8MP NVR, 8 X 4MP Mini Bullets, 8 X 4MP Mini Domes, 4TB HDD

Watchguard SKU: NVRKIT-C1644F
$3,345.00
Description
DescriptionWatchguard™ Compact Series CCTV kits are entry-level, high definition surveillance systems ideal for homes and businesses. These CCTV packages include weather resistant cameras capable of recording double Full HD quality at 20fps.

    The NVR16COM2 is a compact network video recorder with a built-in 16 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265 compression technology and a quad-core processor.


    The VSIPC-4BIRS and VSIPC-4DIRD boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.


    KIT FEATURES:

    • Records up to 4K Ultra HD resolution (3840 x 2160)
    • 16CH NVR with 16 Power over Ethernet PoE ports
    • 2 x SATA port up to 10TB each, max. 20TB HDD capacity
    • HDMI & VGA simultaneous video output
    • Remote view in seconds with setup via QR code
    • Stream up to 4 megapixel (2560 x 1440) at 20fps
    • 2.8mm fixed lens with wide 101° viewing angle
    • 30m infrared range; true day/night (auto ICR)
    • H.265 encoding for efficient storage & streaming
    • 3D digital noise reduction 3DDNR, auto white balance AWB, Digital WDR
    • Region of Interest, Privacy Masking, Smart Infrared, Motion Detection, Motion Zones, Video Loss, Tampering, & Record Scheduling
    • Supports Power over Ethernet PoE (802.3af)
    • Weatherproof IP67 & Vandalproof IK10

      KIT INCLUDES:

      • 1 x Compact 16 channel PoE NVR + pre-installed 4TB HDD
      • 8 x 4.0MP Fixed Mini Domes
      • 8 x 4.0MP Fixed Mini Bullets
      • 1 x 1.5m CAT5 patch cable for networking
      • 1 x 1m HDMI output cable
      • 1 x NVR Remote
      • 1 x Mouse

      Tech Specs
      Tech Specs

      Watchguard Compact 16 Channel Network Video Recorder: 8MP (4K) Ultra HD - NVR16COM2

      General
      Main Processor Quad-core embedded processor
      Operating System Embedded Linux
      Video Input 16 channels
      Two-way Talk 1 channel input, 1 channel output, RCA
      Interoperability ONVIF 2.4, SDK, CGI conformant
      Display
      Video Output 1 x HDMI, 1 x VGA
      Display Resolution Configurable from 3840 x 2160 to 1024 x 768
      Display Split 1/4/8/9/16
      OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
      Recording
      Recording Resolution Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
      Incoming Bandwidth 200Mbps
      Video Compression H.265 / H.264
      Bit Rate 16kbps ~ 20Mbps per channel
      Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
      Record Interval 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
      Features
      Alarm Input / Output 4 channel
      Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
      Video Detection Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
      Playback Sync 1/4/8/16
      Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
      Backup Modes USB Device / Network
      Network
      Ethernet 1 x RJ-45 port (10/100/1000Mbps)
      Power over Ethernet 16 ports (IEEE802.3at/af)
      Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
      Optical Interface N/A
      Max. User Access 128 users
      Remote View iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
      Storage
      Internal HDD 2 x SATA ports up to 10TB, max. 20TB HDD capacity
      HDD Modes Single (no RAID compatibility)
      USB Interface 2 ports: Rear USB2.0 / Front USB2.0
      Auxiliary Inputs 1 x RS232 port
      Environment
      Power Supply 100~240VAC / 50/60 Hz
      Power Consumption < 13.2W (without HDD)
      PoE Yes
      Operating Environment -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
      Rackmountable No
      Rackmount Units Compact 1RU
      Dimensions 375 x 328 x 53mm
      Weight 2.60kg (without HDD)
      Warranty (Years) 4

      Watchguard Compact Security Camera: 4MP Mini Bullet, 2.8mm Fixed Lens - VSIPC-4BIRS

      Camera
      Image Sensor 1/3" 4.0MP Progressive Scan CMOS
      Max. Resolution 4.0 Megapixel
      Effective Pixels 2560 (H) x 1440 (V)
      RAM / ROM 256MB / 16MB
      Ultra Low Light Colour No
      Min Illumination 0.09 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)
      S/N Ratio > 50dB
      Infrared Yes
      Infrared System 18 x Infrared LED, 30m range, Auto/manual on/off control
      Lens
      Lens Type Fixed
      Lens / Iris 2.8mm F2.0 Fixed Lens
      Field of View Horizontal: 101°, Vertical: 54°
      Focus Fixed
      DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
      Detect (25px/m) 56m
      Observe (63px/m) 22m
      Recognise (125px/m) 11m
      Identify (250px/m) 6m
      Video
      Resolution 4.0MP (2560 x 1440) to CIF (352 x 288)
      Frame Rate (Main) 4.0MP (1 ~ 20fps)
      Frame Rate (Sub) D1 (1 ~ 20fps)
      Frame Rate (Third) N/A
      Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
      Bit Rate H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps
      Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
      Day/Night Auto (ICR) / Color / B&W
      Lighting Compensation BLC / HLC / Digital WDR
      White Balance Auto / Natural / Street Lamp / Outdoor / Manual
      Gain Control Auto / Manual
      Noise Reduction 3D DNR
      Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
      IVS
      IVS No
      Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
      Network
      Ethernet RJ-45 (10/100Base-T)
      Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
      Streaming Method Unicast / Multicast
      Max. User Access 10 Users / 20 Users
      RTMP Support No
      Interface
      Video Interface N/A
      Audio Interface N/A
      Alarm Interface N/A
      RS485 N/A
      Edge Storage NAS / Local PC
      Interoperability ONVIF Profile S&G / API
      Environmental
      Power Supply 12VDC / PoE (802.3af) (Class 0)
      Power Consumption <4.2W
      Operating Conditions -30° ~ +60° C / Less than 95% RH
      Ingress Protection IP67
      Weather Resistance Yes
      Vandal Resistance N/A
      Series Compact Series
      Camera Type Bullet
      Housing Metal
      Pan/Tilt/Rotation Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
      Tri-Axis Mounting No
      ePoE No
      Dimensions Ø72mm x 165mm
      Net Weight Ø72mm x 165mm
      Net Weight 0.38kg
      Warranty (Years) 4

      Watchguard Compact Security Camera: 4MP Mini Dome, 2.8mm Fixed Lens - VSIPC-4DIRD

      Camera
      Image Sensor 1/3" 4.0MP Progressive Scan CMOS
      Max. Resolution 4.0 Megapixel
      Effective Pixels 2560 (H) x 1440 (V)
      RAM / ROM 256MB / 16MB
      Ultra Low Light Colour No
      Min Illumination 0.09 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)
      S/N Ratio > 50dB
      Infrared Yes
      Infrared System 24 x Infrared LED, 30m range, Auto/manual on/off control
      Lens
      Lens Type Fixed
      Lens / Iris 2.8mm F2.0 Fixed Lens
      Field of View Horizontal: 101°, Vertical: 54°
      Focus Fixed
      DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
      Detect (25px/m) 56m
      Observe (63px/m) 22m
      Recognise (125px/m) 11m
      Identify (250px/m) 6m
      Video
      Resolution 4.0MP (2560 x 1440) to CIF (352 x 288)
      Frame Rate (Main) 4.0MP (1 ~ 20fps)
      Frame Rate (Sub) D1 (1 ~ 20fps)
      Frame Rate (Third) N/A
      Video Compression H.265+ / H.265 / HH.265+ / H.265 / H.264+ / H.264 / MJPEG.264+ / H.264 / MJPEG
      Bit Rate H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps
      Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
      Day/Night Auto (ICR) / Color / B&W
      Lighting Compensation BLC / HLC / Digital WDR
      White Balance Auto / Natural / Street Lamp / Outdoor / Manual
      Gain Control Auto / Manual
      Noise Reduction 3D DNR
      Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
      IVS
      IVS No
      Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
      Network
      Ethernet RJ-45 (10/100Base-T)
      Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
      Streaming Method Unicast / Multicast
      Max. User Access 10 Users / 20 Users
      RTMP Support No
      Interface
      Video Interface N/A
      Audio Interface N/A
      Alarm Interface N/A
      RS485 N/A
      Edge Storage NAS / Local PC
      Interoperability ONVIF Profile S&G / API
      Environmental
      Power Supply 12VDC / PoE (802.3af) (Class 0)
      Power Consumption &l
