| Image Sensor |
1/2.7” 6.0MP Progressive Scan CMOS |
| Effective Pixels |
3072 (H) × 2048 (V) |
| RAM / ROM |
256MB / 128MB |
| Min Illumination |
0.008 Lux/F1.6 |
| Infrared System |
2 x Infrared LED, 30m range, Auto/manual on/off control |
| Lens / Iris |
2.8mm F1.6 Fixed Lens |
| Field of View |
Horizontal: 103°, Vertical: 71°, Diagonal 132 |
| Focus |
Fixed, 0.9m minimum focus distance |
| Detect(25px/m) |
56m |
| Observe(63px/m) |
22m |
| Recognise (125px/m) |
11m |
| Identify (250px/m |
6m |
| Resolution |
6.0MP (3072 x 2048) to CIF (352 x 288) |
| Frame Rate (Main) |
6.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
N/A |
| Video Compression |
H.265 / H.264 / H.264B / MJPEG |
| Bit Rate |
H.264: 32kbps ~ 8192kbps / H.265: 12kbps ~ 8192kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Day/Night |
Auto (ICR) / Colour / B&W |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control |
Auto / manual |
| Noise Reduction |
3D DNR |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode) |
| Intelligent Functions |
Tripwire, Intrusion |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Streaming Method |
Multicast |
| Max. User Access |
20 Users |
| Video Interface |
N/A |
| Audio Interface |
Built-in Microphone / Audio Compression: G.711A; G.711Mu; G.726 |
| Alarm Interface |
N/A |
| RS485 |
N/A |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP/ SFTP |
| Interoperability |
ONVIF, CGI, P2P, Milestone, Genetec |
| Power Supply |
12VDC / PoE (802.3af) |
| Power Consumption |
<7.2W |
| Operating Conditions |
-40°C to +60°C / less than ≤ 95% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance |
N/A |
| Housing |
Metal |
| Pan/Tilt/Rotation |
Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360° |

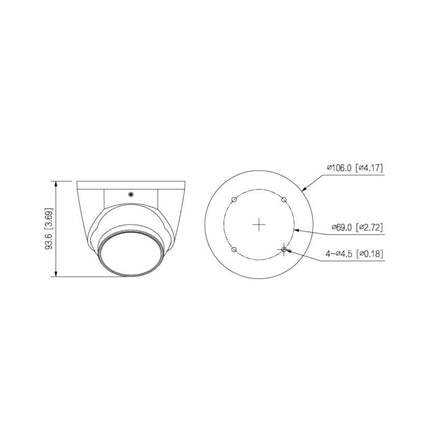

| Dimensions |
94mm x Ø106mm |
| Net Weight |
0.48kg |
