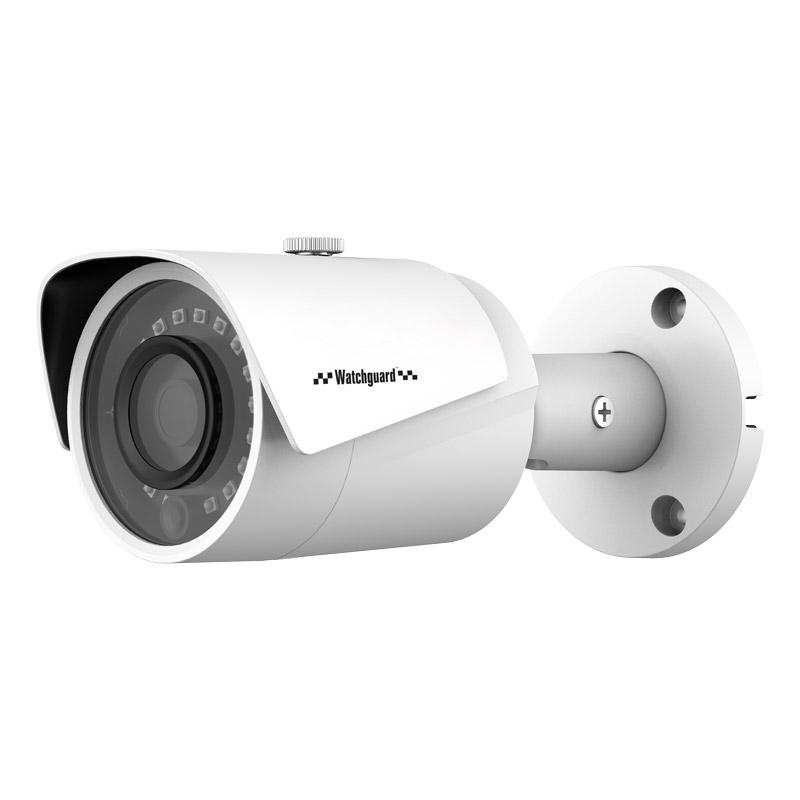

Watchguard Security Camera: 4MP Mini Bullet, 2.8mm Fixed Lens

SKU VSIPC-4BIRS
Original price $155.00 - Original price $155.00
Original price
$155.00
$155.00 - $155.00
Current price $155.00

Description

Description

The VSIPC-4BIRS boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

CAMERA FEATURES

  • Stream up to 4 megapixel (2560 x 1440) at 20fps
  • 2.8mm fixed lens with wide 101° viewing angle
  • 30m infrared range; true day/night (auto ICR)
  • H.265 encoding for efficient storage & streaming
  • 3D digital noise reduction 3DDNR, auto white balance AWB, Digital WDR
  • Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
  • Supports Power over Ethernet PoE (802.3af )
  • "Weatherproof" IP67 rated metal housing


Tech Specs

Tech Specs

Camera
Image Sensor 1/3" 4.0MP Progressive Scan CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels 2560 (H) x 1440 (V)
RAM / ROM 256MB / 16MB
Ultra Low Light Colour No
Min Illumination 0.09 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)
S/N Ratio > 50dB
Infrared Yes
Infrared System 18 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris 2.8mm F2.0 Fixed Lens
Field of View Horizontal: 101°, Vertical: 54°
Focus Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 56m
Observe (63px/m) 22m
Recognise (125px/m) 11m
Identify (250px/m) 6m
Video
Resolution 4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main) 4.0MP (1 ~ 20fps)
Frame Rate (Sub) D1 (1 ~ 20fps)
Frame Rate (Third) N/A
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / Digital WDR
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS No
Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
RTMP Support No
Interface
Video Interface N/A
Audio Interface N/A
Alarm Interface N/A
RS485 N/A
Edge Storage NAS / Local PC
Interoperability ONVIF Profile S&G / API
Environmental
Power Supply 12VDC / PoE (802.3af) (Class 0)
Power Consumption <4.2W
Operating Conditions -30° ~ +60° C / Less than 95% RH
Ingress Protection IP67
Weather Resistance Yes
Vandal Resistance N/A
Series Compact Series
Camera Type Bullet
Housing Metal
Pan/Tilt/Rotation Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
Tri-Axis Mounting No
ePoE No
Dimensions Ø72mm x 165mm
Net Weight Ø72mm x 165mm
Net Weight 0.38kg
Warranty (Years) 4
