| Specifications |
|---|
| Model |

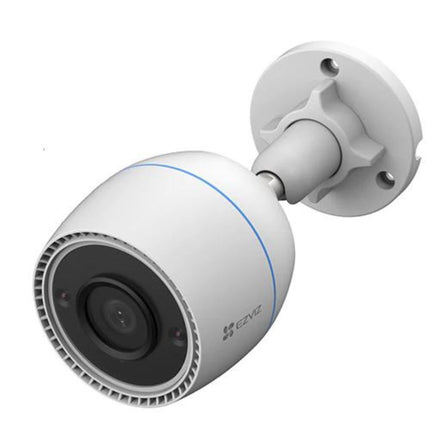

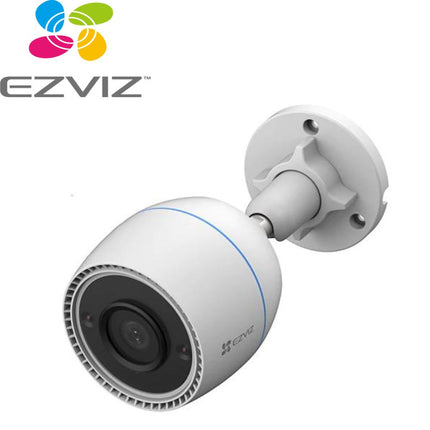

CS-C3TN (1080P, 2.8mm) |
| General |
|---|
| Dimensions |
72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch) |
| Packaging Dimensions |
227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Net Weight |
Product: 256 g (9.03 oz), With package: 500 g (17.64 oz) |
| IP Grade |
IP67 |
| Operation Conditions |
-4 °F to 122 °F (-20 °C to 50 °C )Humidity 95% or less (non-condensing) |
| Camera |
|---|
| Image Sensor |
1/2.7” Progressive Scan CMOS |
| Minimum Illumination |
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance |
Up to 98 ft / 30 m |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8 mm @ F2.0, view angle: 106° (Horizontal), 122°(Diagonal) |
| Lens Mount |
M12 |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Video & Audio |
|---|
| Max. Resolution |
2MP, 1920 × 1080 |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra-HD; HD; Standard. Adaptive bit rate |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Max. Bitrate |
2 Mbps |
| Network |
|---|
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Channel Bandwidth |
Supports 20MHz |
| Wired Network |
RJ45 × 1(10M / 100M Adaptive Ethernet Port) |
| Transmission Rate |
11b: 11Mbps,11g: 54Mbps,11n: 144Mbps |
| Frequency Range |
2.4GHz ~ 2.4835 GHz |
| Functions |
|---|
| Detection |
Motion Detection |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image,Password Protection, Watermark |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Storage |
|---|
| Local Storage |
Supports microSD card (Up to 256 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
| Power |
|---|
| Power Supply |
DC 12V / 1A |
| Power Consumption |
Max. 6W |
| In the box |
|---|
| In the box |
- C3TN Color Camera |
| - Drill Template |
| - Screw Kit |
| - Waterproof Kit |
| - Power Adapter |
| - Regulatory Information |
| - Quick Start Guide |
| Certifications |
|---|
| Certifications |
CE / WEEE / REACH / RoHS / UL / FCC / UKCA |
