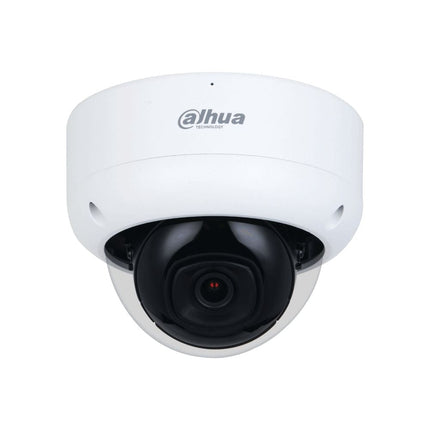

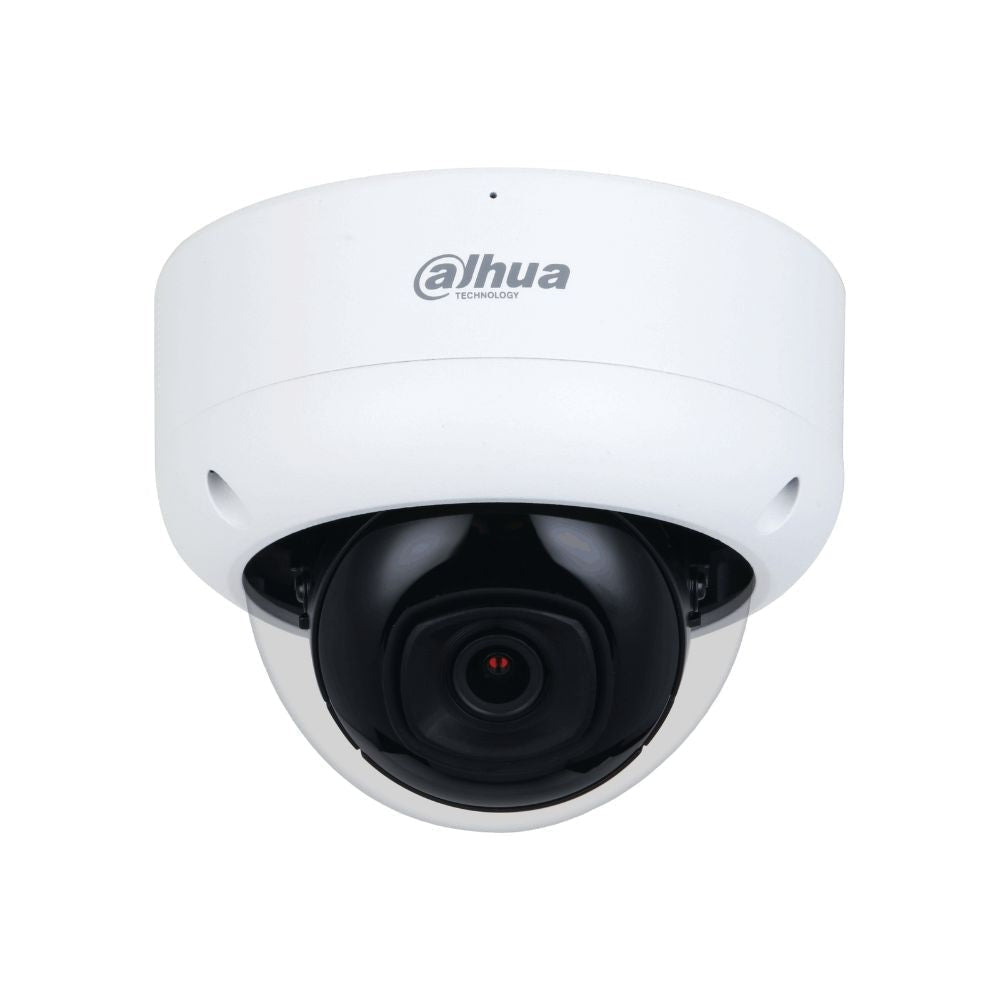

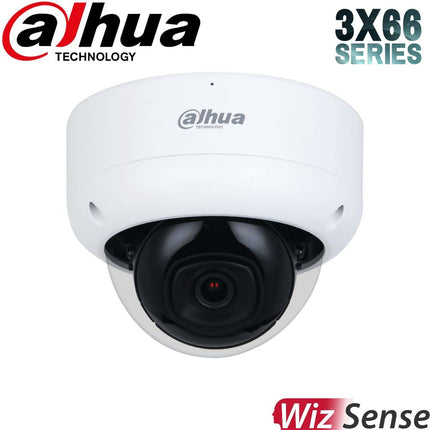

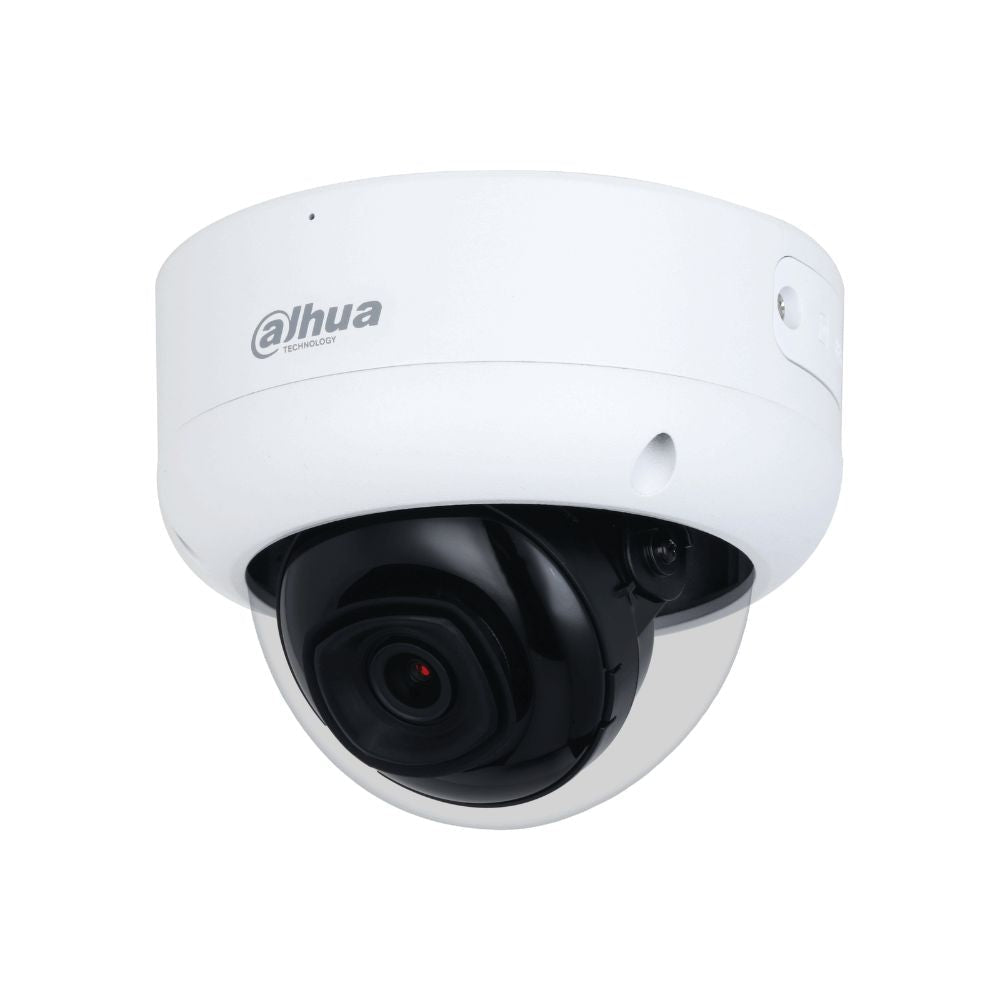

Dahua Security Camera: 6MP Dome, 2.8mm, WizSense, Starlight, SMD 4.0 - DH-IPC-HDBW3666EP-AS-AUS

Description

Description

This video highlights the new features introduced by the 3X66 series. This product's specifications may vary in terms of resolution, model, etc. Please refer to the datasheets for accurate specs or contact us for questions.

Launched by Dahua Technology, WizSense is a series of wide-range AI products and solutions that adopt independent AI chips and deep learning algorithms. It can recognize humans and vehicles in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on humans and vehicles, benefiting everyone with intelligent functions, simple configuration and inclusive products.

SMD 4.0:With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.
Also, SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.

WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.

Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.

Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

Features

  • 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
  • Outputs max. 6 MP (3072 × 2048) @25/30 fps
  • H.265 codec allows a high compression ratio and ultra-low bit rate.
  • Built-in IR LED, max. IR distance: 30 m.
  • ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67, IK10 protection.
  • SMD 4.0, AI SSA.

Downloads
Tech Specs

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3072 (H) × 2048 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)

0.0005 lux@F1.4 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm;

Max. Aperture

F1.4

Field of View

2.8 mm: Horizontal: 111°; Vertical: 58°; Diagonal: 132°

3.6 mm: Horizontal: 92°; Vertical: 45°; Diagonal: 110°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)

3.6 mm: 1.7 m (18.37 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m

(208.66 ft)

25.4 m

(83.33 ft)

12.7 m

(41.67 ft)

6.4 m

(21.00 ft)

3.6 mm

85.4 m (280.18 ft)

34.2 m (112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

AI Coding

AI H.265
AI H.264

Video Frame Rate

Main stream: 3072 × 2048 @ (1–25/30) fps

Sub stream 1: 704 × 576 @ (1–25 fps)/

704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

6M(3072 x 2048); 5M (2592 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

- AS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception

-S:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE:IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only - AS supports)

Audio Output

1 channel (RCA port) (Only - AS supports)

Alarm Input

1 channel in: 5 mA 3–5 VDC (Only - AS supports)

Alarm Output

1 channel out: 300 mA 12 VDC (Only - AS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 4 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 8.5 W (12 VDC); 9.7 W (PoE)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F) /Less than 95% RH

Storage Temperature

–40°C to +60°C (–40°F to 140°F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

89.1 mm × Φ111.7 mm (3.50" × Φ4.40")

Net Weight

516 g (1.14 lb)

Gross Weight

670 g (1.48 lb)

Videos

Sample 8MP Videos from a similar Dahua camera

3-Years Warranty

3 Years Warranty - Enduring Protection & Weather Resistant

Dahua offers a 3-year manufacturer warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, we will repair or replace the faulty product at no cost. The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SECSOURCE will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact us.

Authorised Distributor - Genuine Devices, Express Shipping, No Grey Market Goods

As an Authorised Dahua Distributor, we only work with 100% genuine products that are fully covered by the manufacturer's warranty, tech support, and firmware updates. Our warehouses are located in Sydney, Brisbane and Melbourne, and we deliver with the fastest courier shipping available.
