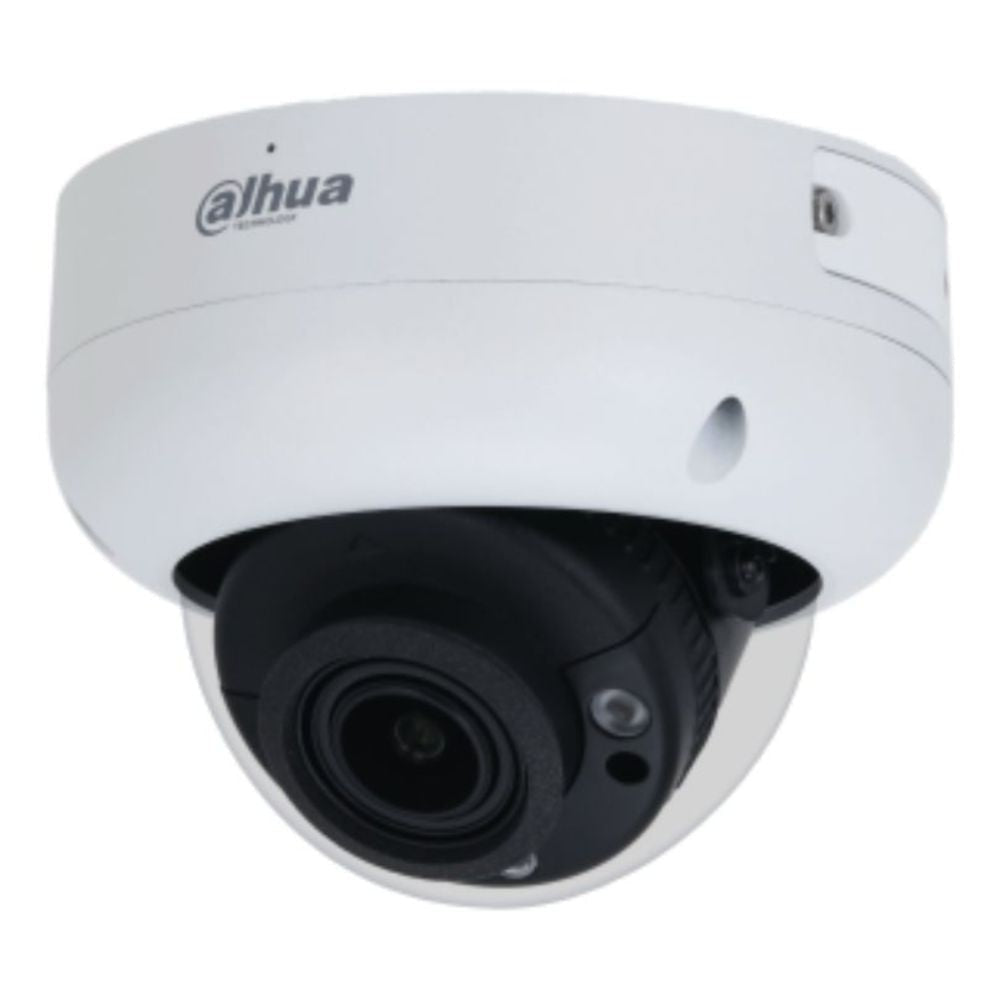

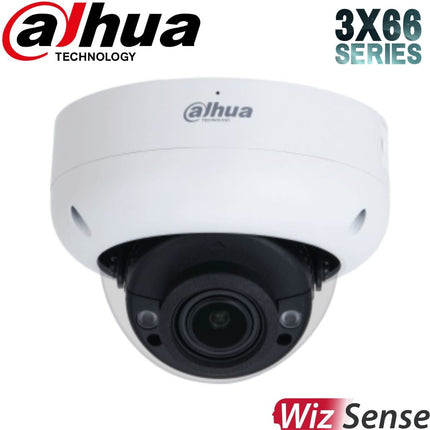

The Dahua DH-IPC-HDBW3866RP-ZAS-AUS is an 8MP motorised vari-focal dome camera with advanced AI capabilities. Offering up to 4K resolution, long-range IR, robust vandal resistance, and accurate smart detection, this model is ideal for high-traffic environments needing detailed video and perimeter protection.
Key Features
-
8MP 4K Ultra HD Resolution – Delivers crystal-clear video for precise identification
-
Motorised Lens (2.7–13.5mm) – Remote zoom and focus for flexible viewing angles
-
Powerful IR Night Vision (40m) – Captures details even in total darkness
-
SMD 4.0 & Perimeter Protection – Reduces false alarms using AI-driven analytics
-
AI SSA (Scene Self-Adaption) – Auto-optimises image in rain, fog, or low light
-
Audio & Alarm I/O Support – Includes built-in mic and RCA ports (ZAS only)
-
IK10 + IP67 Rated – Vandal-resistant dome housing for harsh environments
-
Micro SD Slot – Supports local recording up to 256GB
Perfect For:
- Commercial entrances and foyers
- Warehouses or factories
- Carparks and vehicle zones
- School or campus security
- Office building perimeter
Install Tips
- Use motorised zoom to easily adjust view remotely after installation
- Pair with AI NVR for advanced search and event filtering (Quick Pick)
- Mount under soffits, ceilings, or walls using optional brackets
- Enable SMD 4.0 for more accurate motion detection with fewer false alerts
- Use the ZAS variant to connect sirens or external sensors via I/O
Downloads
Quick-Read Specs Card
| Feature |
Details |
| Resolution |
8MP (3840 × 2160) |
| Lens |
2.7–13.5mm Motorised Zoom |
| Night Vision |
IR up to 40 meters |
| AI Features |
SMD 4.0, Perimeter Protection, AI SSA |
| Audio |
Built-in Mic + RCA Audio I/O (ZAS only) |
| Alarms |
1 input / 1 output (ZAS only) |
| Weatherproofing |
IP67 (Dust/Water), IK10 (Vandal-resistant) |
| Storage |
Micro SD up to 256GB |
| Power |
12V DC / PoE (802.3af) |
Extra Info
Smart Motion Detection (SMD 4.0)
Equipped with AI-powered detection, SMD 4.0 intelligently filters out non-threatening motion triggers such as pets, falling leaves, or shifting light patterns. This ensures motion alerts are limited to meaningful events involving humans or vehicles—resulting in fewer false alarms and more efficient monitoring.
AI Scene Self-Adaption (AI SSA)
This feature automatically optimizes video quality by adjusting image settings to suit changing lighting environments. Whether facing fog, heavy rain, bright sunlight, or deep shadows, the camera ensures consistently clear and balanced footage without the need for manual intervention.
Wide Motorised Zoom Range
With a 2.7–13.5mm motorised lens, the camera offers a horizontal field of view ranging from 109° (wide) to 30° (narrow). This flexibility makes it perfect for a variety of surveillance needs—from wide coverage of building exteriors to focused views down long corridors, driveways, or fenced zones.
IK10 Vandal-Resistant Housing
Designed for tough environments, the IK10-rated housing offers high impact resistance, making the camera ideal for use in public areas, schools, commercial buildings, or warehouse facilities where tampering or vandalism may occur. Its durable build ensures long-term performance and protection.
Flexible Mounting Options
The camera supports versatile installation across different environments, whether it's ceiling-mounted in an indoor hallway or wall-mounted outdoors. It’s compatible with multiple optional accessories such as the PFA137 junction box, PFB220C ceiling mount, and PFB203W wall bracket—ensuring clean cabling and optimal viewing angles in any setup.
More About AcuPick – Precision Video Search Powered by AI
Dahua’s AcuPick feature revolutionizes how you locate events in video surveillance footage. Instead of manually watching hours of clips, AcuPick intelligently filters and finds relevant footage based on AI-classified human or vehicle presence.
Highlights of AcuPick:
-
AI-Driven Precision – Differentiates between humans and vehicles for relevant search results.
-
Smart Filtering – Search using characteristics like clothing color or vehicle type—no need to know the exact time of an incident.
-
Instant Video Recall – Jump straight to key events with a few clicks.
-
False Alarm Reduction – Minimizes alerts triggered by non-critical motion.
-
Flexible Deployment – Works with Dahua’s smart cameras or AI-compatible NVRs.
Practical Applications:
-
Retail & Offices – Trace customer movement or detect unauthorized access.
-
Car Parks & Driveways – Locate vehicle activity instantly.
-
Public Spaces – Search for individuals using visual traits.
-
Gated Residences – Review vehicle arrivals or visitor interactions quickly.
AcuPick transforms passive surveillance into active, intelligent security management—saving valuable time and enhancing operational effectiveness.
Q&A
Does this model support remote zoom and focus?
Yes, the lens is motorised and can be controlled remotely via the NVR or web interface.
Can I use this camera outdoors?
Absolutely. It’s both IP67 waterproof and IK10 vandal-proof, perfect for exposed areas.
What’s the difference between ZAS and ZS models?
The ZAS variant includes audio and alarm I/O ports, while ZS does not.
Does it work with other brands of NVR?
Yes, it's ONVIF compliant and supports integration with third-party systems like Milestone and Genetec.
What’s the maximum SD card capacity?
Up to 256GB Micro SD is supported for local recording.
Is this camera PoE powered?
Yes, it supports PoE (802.3af) and also works with a 12V DC power supply.
Comparison Table
DH-IPC-HDBW3866RP-ZAS-AUS vs DH-IPC-HFW3866TP-ZAS-AUS
| Feature |
DH-IPC-HDBW3866RP-ZAS-AUS (Dome) |
DH-IPC-HFW3866TP-ZAS-AUS (Bullet) |
| Camera Type |
Dome (Vandal-Resistant) |
Bullet |
| Resolution |
8MP (3840 × 2160) |
8MP (3840 × 2160) |
| Lens Type |
Motorised 2.7–13.5mm |
Motorised 2.7–13.5mm |
| Field of View |
109° – 30° |
113° – 31° |
| Night Vision |
IR up to 40m |
IR up to 60m |
| AI Features |
SMD 4.0, Perimeter Protection, AI SSA |
SMD 4.0, Perimeter Protection, AI SSA |
| Audio |
Built-in Mic + RCA Audio I/O (ZAS) |
Built-in Mic + Audio I/O |
| Alarm I/O |
1 input / 1 output (ZAS) |
1 input / 1 output |
| Weather Rating |
IP67 |
IP67 |
| Vandal Resistance |
IK10 (impact-resistant) |
No IK rating |
| Storage |
Micro SD (up to 256GB) |
Micro SD (up to 256GB) |
| Power |
12V DC / PoE (802.3af) |
12V DC / PoE (802.3af) |
| Best Use Case |
High-traffic, vandal-prone zones (schools, car parks) |
Outdoor areas needing longer-range IR (perimeters, vehicle monitoring) |
Summary Recommendation
Choose the DH-IPC-HDBW3866RP-ZAS-AUS if you need:
- A vandal-resistant dome camera for public or high-traffic areas
- Robust protection with IK10 impact resistance and IP67 waterproofing
- Clean, discreet mounting under ceilings or soffits
- Smart AI detection with flexible motorised zoom for detailed coverage
- Audio and alarm I/O for interactive or alert-triggered setups (ZAS variant)
Choose the DH-IPC-HFW3866TP-ZAS-AUS if you need:
- A bullet-style camera with longer IR night vision range (up to 60m)
- High-resolution 4K footage with remote zoom for large outdoor areas
- Visible deterrence with an easy-to-aim form factor
- Durable outdoor performance with IP67 weatherproofing
- Full AI features, audio I/O, and local recording in a traditional bullet housing
