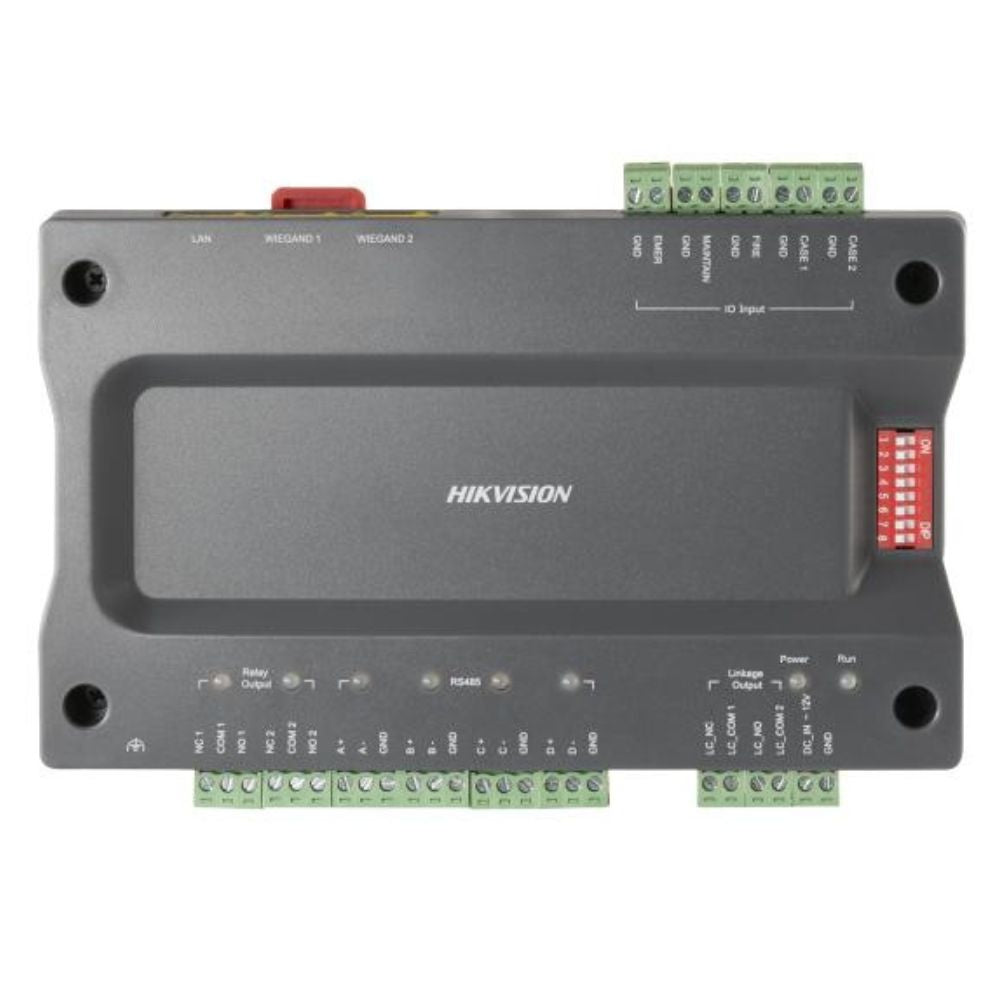

The Hikvision DS-K2M0016A is a distributed elevator controller designed to extend elevator access control by supporting up to 16 relay outputs. It communicates with the master elevator controller via RS-485, providing flexible floor button control and secure integration for large-scale building projects. With DIP switch configuration, relay type support, and tamper protection, it ensures reliable and scalable elevator management.
Key Features
-
RS-485 Communication – Links seamlessly with the master elevator controller (DS-K2210).
-
16 Relay Outputs – Controls elevator floor buttons through multiple relay types (Button, Call Elevator, Auto Button).
-
Flexible Configuration – DIP switches allow easy device addressing and relay type settings.
-
Scalable Design – Up to 8 distributed controllers can connect to a single master controller.
-
Event Reporting – Supports linkage with the master controller to send events to the central system.
-
Tamper Protection – Built-in tamper-proof function enhances system security.
-
Wide Environment Range – Operates reliably in harsh temperatures from -40 °F to 158 °F.
Downloads
Perfect For:
- Multi-story residential buildings
- Corporate office towers
- Hospitals and universities
- Hotels and high-rise apartments
- Industrial and government facilities with controlled elevator access
Installer Tips
-
Module Linking: Use RS-485 to connect up to 8 distributed controllers to a single master unit.
-
Relay Selection: Choose relay type (Button, Call Elevator, Auto Button) according to elevator system requirements.
-
Power Supply: Ensure a stable 12 VDC power source (±15%) for uninterrupted performance.
-
Environment: Verify humidity is below 90% (non-condensing) during installation.
-
Mounting: Designed for guide rail installation—check fit before deployment.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-K2M0016A |
| Type |
Distributed Elevator Controller |
| Processor |
32-bit |
| RS-485 Interfaces |
2 |
| Alarm Inputs |
2 |
| Relay Outputs |
16 |
| Buzzer |
1 |
| Tamper-Proof |
Yes |
| Power Supply |
12 VDC ±15% |
| Dimensions |
167 × 105 × 30 mm (6.57" × 4.13" × 1.18") |
| Working Temperature |
-40 °F to 158 °F |
| Working Humidity |
0–90% (non-condensing) |
| Installation |
Guide rail mounting |
Extra Info
Scalable Integration
The system is built for both small- and large-scale elevator projects. Each DS-K2210 master controller can manage up to 8 distributed sub-controllers, allowing seamless expansion across high-rise buildings or multi-wing facilities. This modular design ensures that security teams can scale the system as needed without replacing existing infrastructure.
Relay Flexibility
Engineered for compatibility, the unit supports multiple relay output types, enabling smooth integration with different elevator button panel designs and wiring setups. This flexibility means it can adapt to both new installations and retrofit projects, minimizing additional hardware costs while maintaining high reliability.
Secure & Reliable
The controller’s tamper-proof housing helps protect against unauthorized access, while RS-485 dual communication lines with redundancy ensure stable performance even if one line fails. This is particularly important in mission-critical environments such as corporate towers, government facilities, and residential complexes, where uninterrupted operation is essential.
Compact Form Factor
With its slim profile and DIN-rail mounting design, the controller fits neatly into crowded elevator control cabinets. The compact build reduces installation time and allows for efficient cable management, making it easier for technicians to set up and service the device without disrupting other components.
Q&A
Q1: How many floors can it control?
It supports up to 16 relays, each corresponding to a floor button in the elevator.
Q2: Can I connect multiple controllers?
Yes, up to 8 distributed controllers can be linked to a single DS-K2210 master controller.
Q3: What relay types are supported?
It supports Button Relay, Call Elevator Relay, and Auto Button Relay.
Q4: What installation method is used?
It is designed for guide rail installation inside elevator control systems.
Q5: Does it work in harsh conditions?
Yes, it operates reliably in temperatures from -40 °F to 158 °F with up to 90% humidity.
