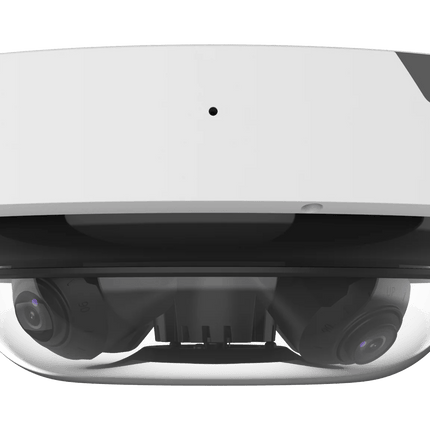

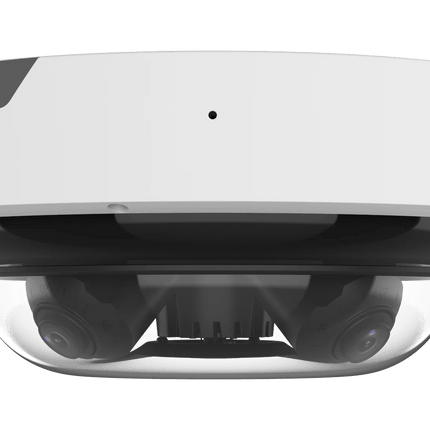

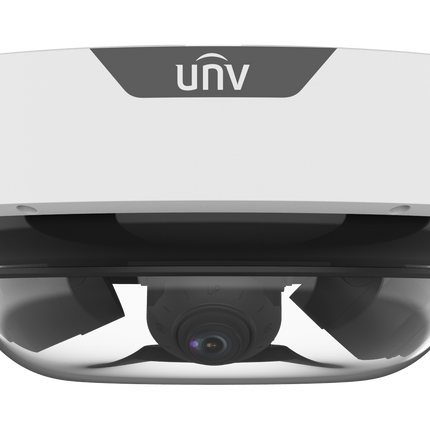

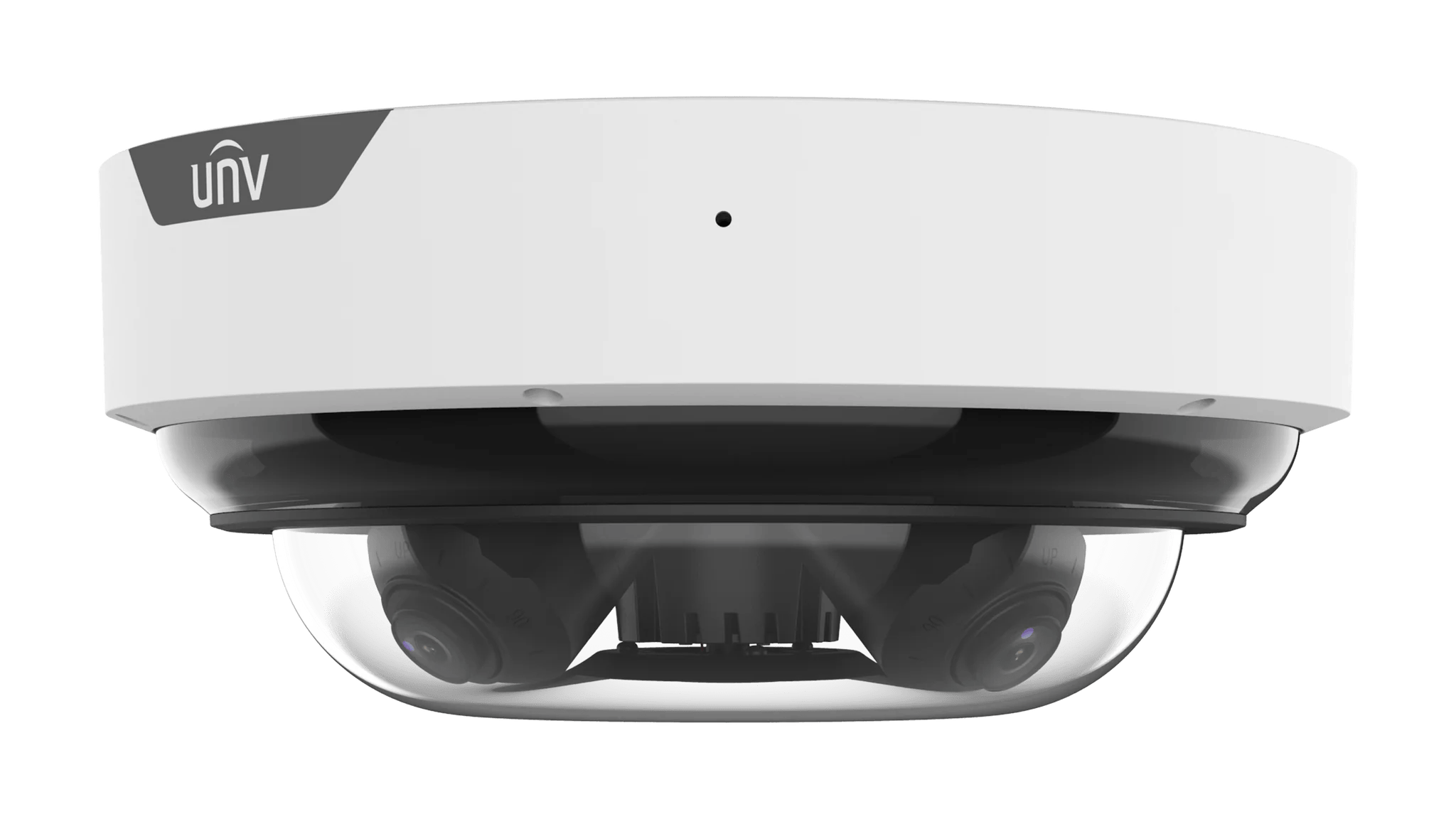

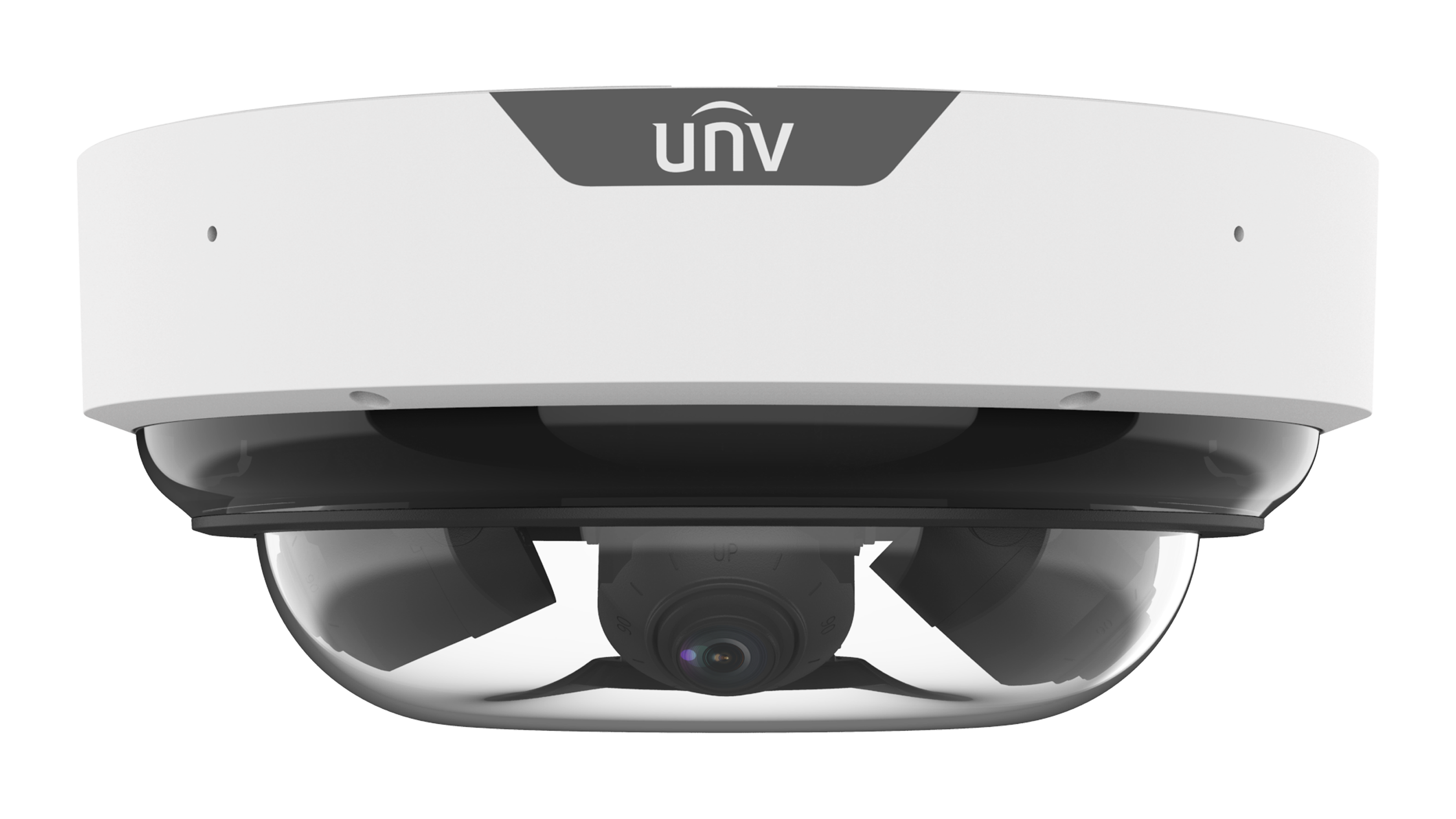

The Uniview IPC8645EA-ADZKM-I1 is a professional 4 × 5MP MultiView network dome camera designed for complex surveillance environments that require wide-area coverage using a single device. Featuring four independently adjustable lenses, advanced intelligent analytics, Wise-ISP imaging, and durable IK10/IP67 protection, it delivers high-quality monitoring for commercial, industrial, and large-scale security applications.
Key Features
-
Four-Lens MultiView System – One IP camera with four independent channels, each lens adjustable (pan/tilt/rotation) to cover multiple angles simultaneously, ideal for complex scenes.
-
High-Resolution Output – Each channel delivers up to 5MP (2880 × 1620) at 30 fps, providing superior clarity across all viewing angles.
-
Advanced AI Functions – Supports intelligent intrusion prevention (line cross, intrusion, area entry/exit) with false-alarm filtering for humans, vehicles, and non-motorized objects.
-
People Counting – Real-time people flow counting and crowd-density monitoring for business analytics and safety management.
-
Wise-ISP & Lighthunter Technology – Ensures excellent performance even in low-light environments with vivid details and reduced noise.
-
130 dB Optical WDR – Maintains image clarity in challenging lighting conditions with high contrast.
-
Robust Protection – IP67 weatherproof and IK10 vandal-resistant housing for reliable outdoor installation.
-
Versatile Video Compression – Ultra 265, H.265, H.264, and MJPEG supported for optimized bandwidth and storage.
Perfect For:
- Commercial buildings and perimeter coverage
- Parking areas, warehouses, and loading docks
- Campus surveillance and wide-area monitoring
- Malls, transport hubs, and public spaces
- Industries requiring multi-directional coverage
Installer Tips
-
Lens Adjustment – Each lens supports independent pan, tilt, and rotation. Carefully align each channel to eliminate blind spots.
-
Use PoE for Simplified Wiring – Powered by PoE (IEEE 802.3bt), reducing cabling complexity during multi-lens installations.
-
Optimize AI Accuracy – For intrusion functions, avoid pointing lenses directly at moving foliage, lights, or reflective surfaces.
-
Best Placement for People Counting – Mount at proper height and angle to ensure reliable counting in entry/exit areas.
-
Maximize Low-Light Quality – Benefit from Lighthunter by avoiding installation facing direct light sources.
Downloads
Quick-Read Specs
| Image Sensor |
4 × 1/2.7" CMOS |
| Resolution |
5MP per lens (2880 × 1620 @ 30fps) |
| Lenses |
4 independent motorized lenses (pan/tilt/rotate) |
| WDR |
130 dB Wide Dynamic Range |
| Low-Light Tech |
Lighthunter / Wise-ISP |
| IR Distance |
Up to 30 meters |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| AI Functions |
Intrusion Detection, Line Crossing,
Region Entrance/Exit, People Counting,
Human/Vehicle Classification |
| Network |
1 × RJ45 (10/100/1000 Mbps), ONVIF, RTSP, TCP/IP |
| Power |
PoE (IEEE 802.3bt), Max ~22W |
| Durability |
IP67 Weatherproof, IK10 Vandal Resistant |
| Operating Temperature |
–30°C to +60°C |
| Storage |
MicroSD card up to 256GB |
| Audio |
Built-in microphone |
| Dimensions |
Ø 191 mm × 155 mm |
| Weight |
Approx. 1.5–1.7 kg |
