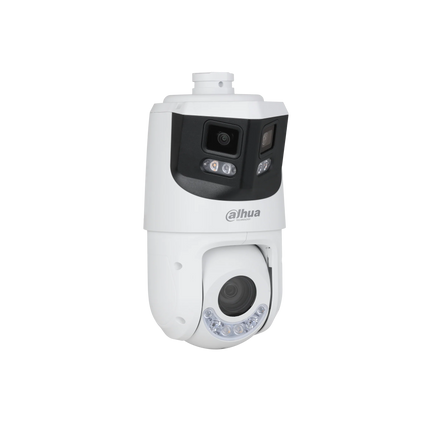

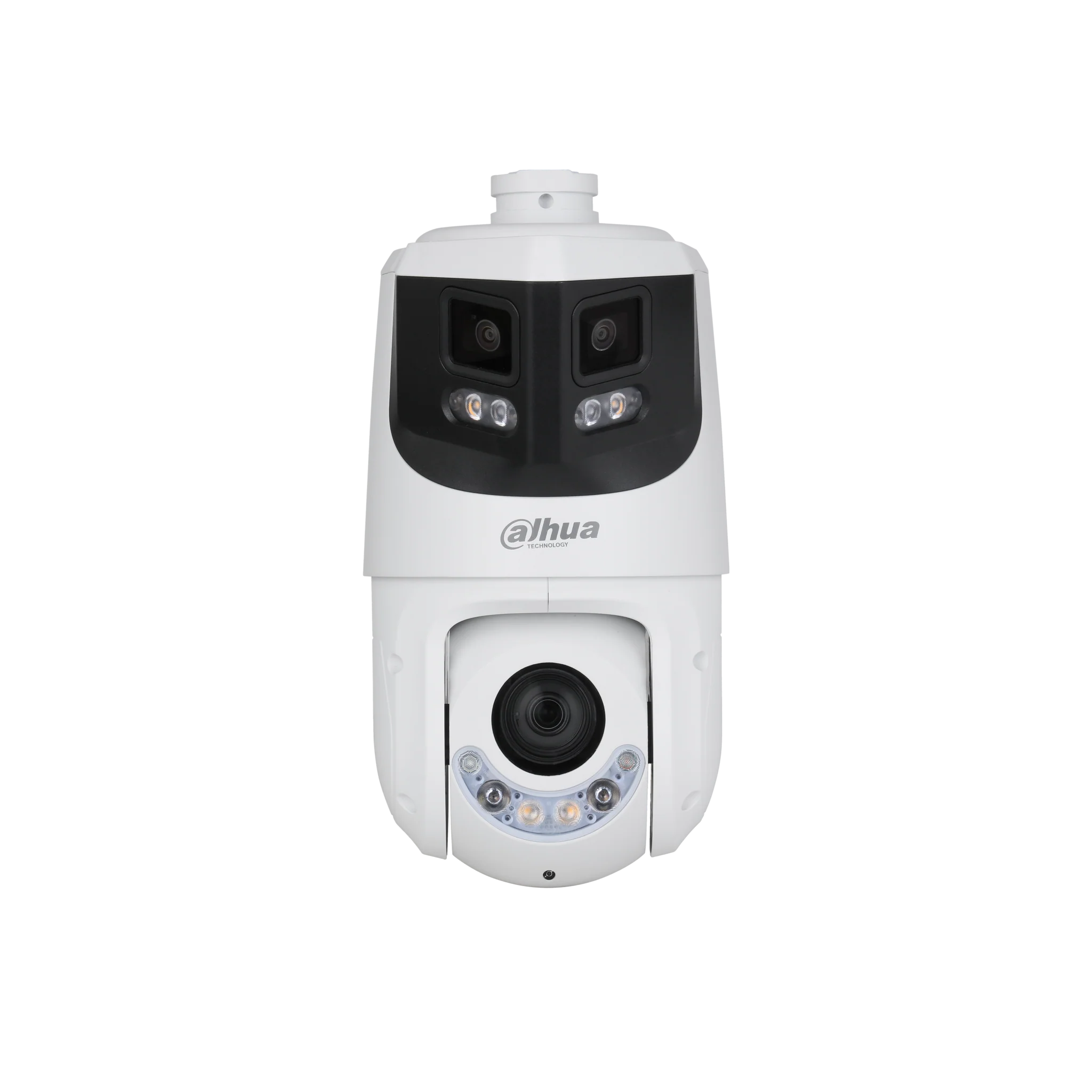

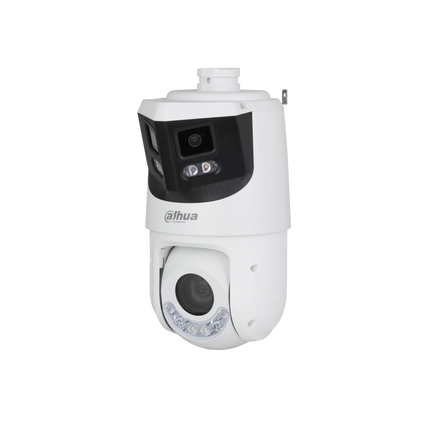

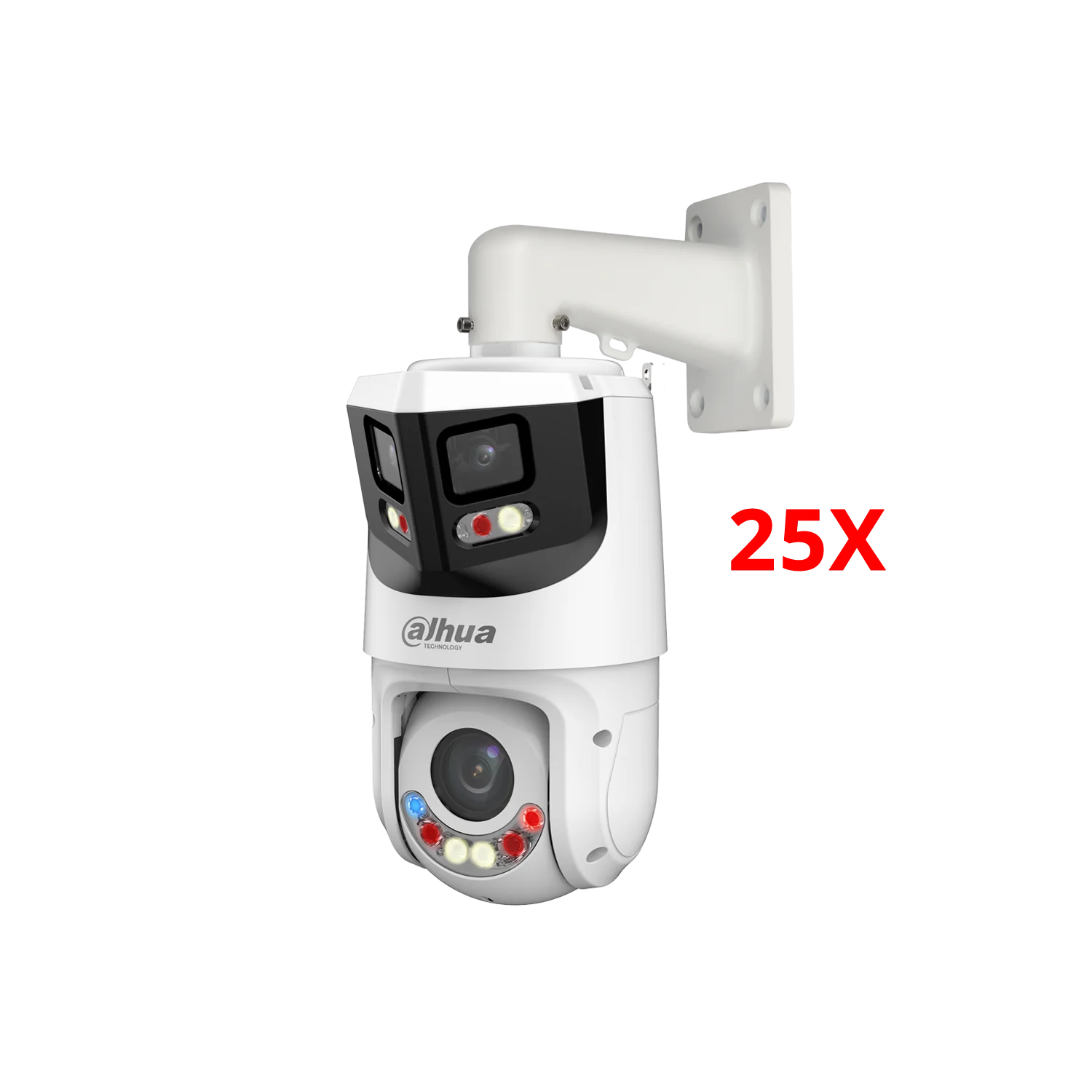

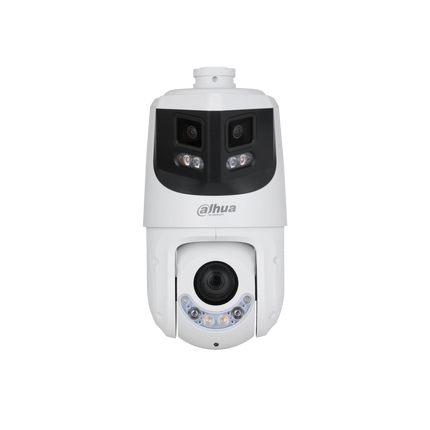

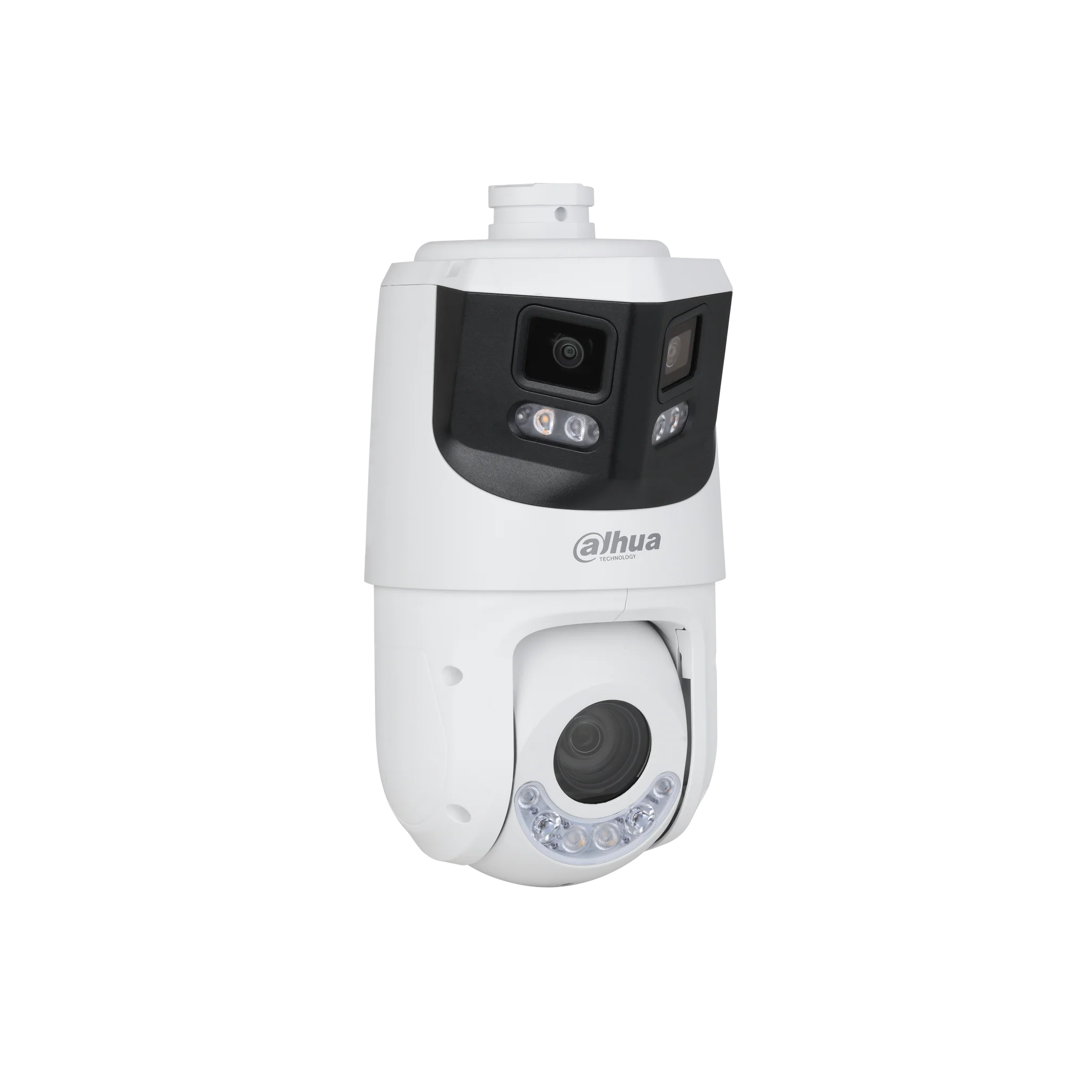

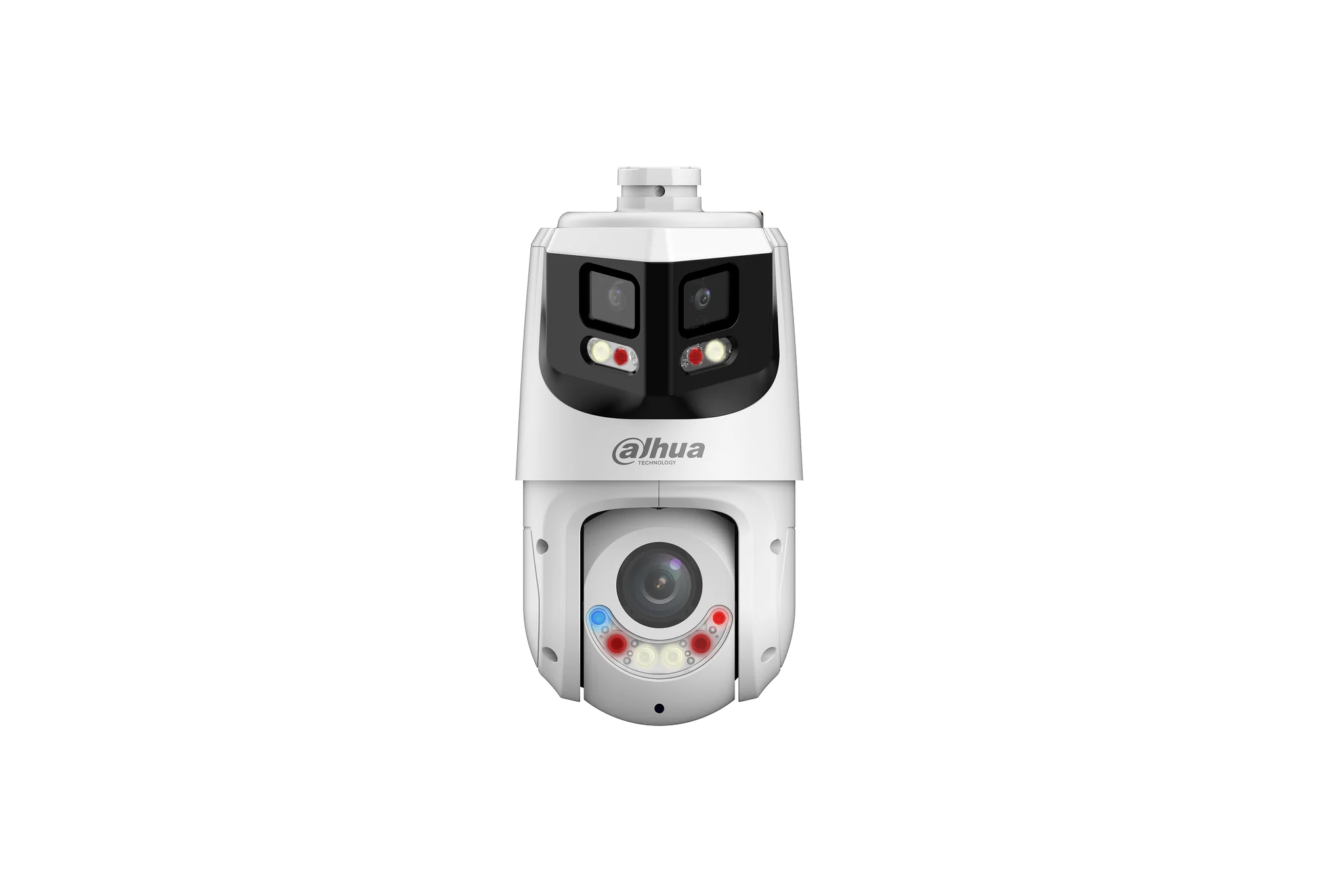

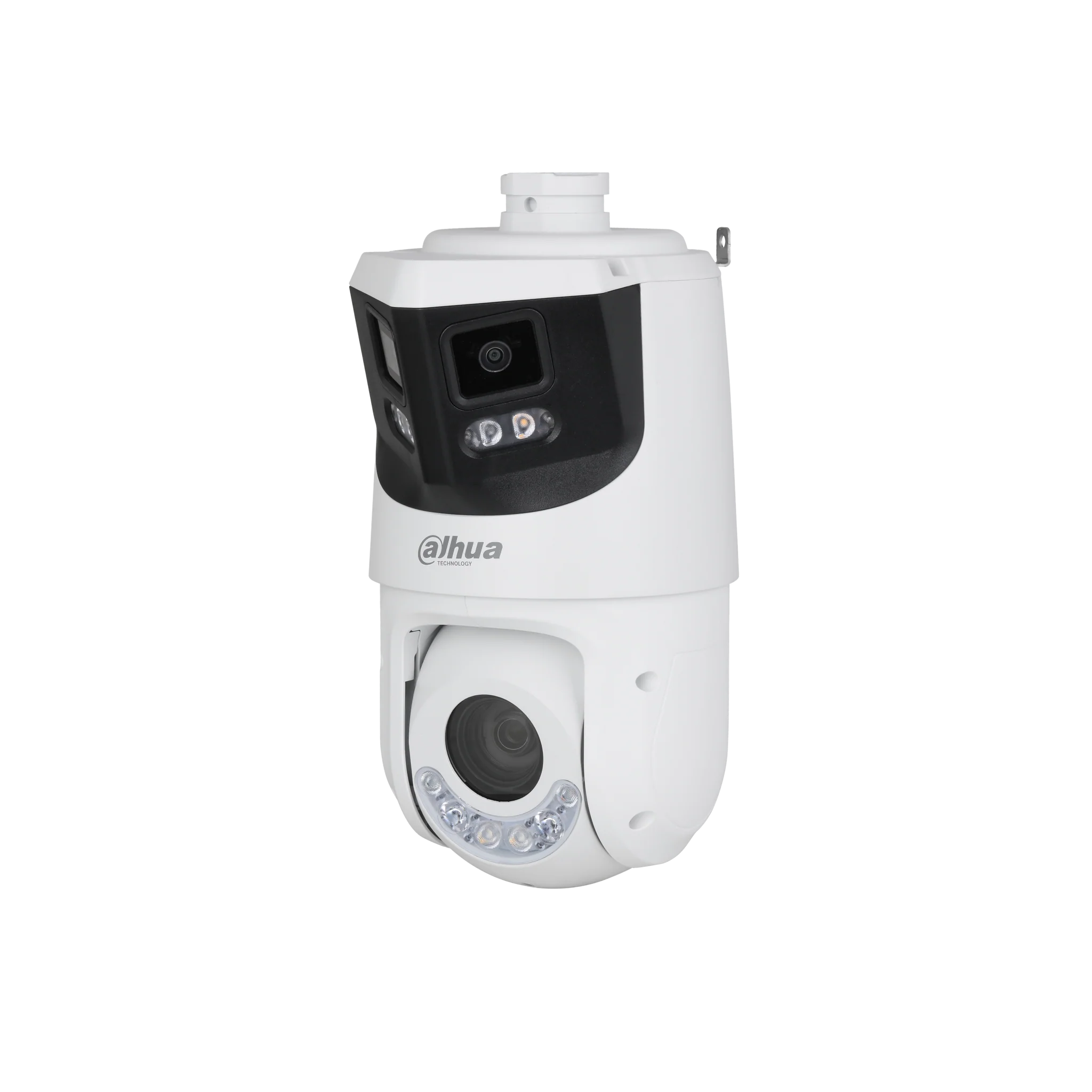

Camera
|
|
Image Sensor
|
Panorama: 1/2.7" CMOS; Detail: 1/2.8" CMOS
|
|
Pixel
|
Panorama: 8 MP; Detail: 4 MP
|
|
Max. Resolution
|
Panorama: 4096 × 1860; Detail: 2560 × 1440
|
|
ROM
|
Panorama: 4 GB; Detail: 4 GB
|
|
RAM
|
Panorama: 2 GB; Detail: 1 GB
|
|
Electronic Shutter Speed
|
1 s–1/30,000
|
|
Scanning System
|
Progressive
|
|
Min. Illumination
|
Panorama:
0.005 lux@F1.4 (Color, 30 IRE);
0.0005 lux@F1.4 (B/W, 30 IRE);
0 lux (illuminator on)
Detail:
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
|
|
Illumination Distance
|
Panorama: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white
light)
Detail:
100 m (328.08 ft) (IR);
50 m (131.23 ft) (white light)
|
|
Illuminator On/Off Control
|
Panorama:
Manual; Auto; Off
Detail:
Zoom Prio; Manual; Auto; Of
|
|
Illuminator Number
|
Panorama: 2 (IR light); 2 (White light); Detail: 2 (IR
light); 2 (Warm light)
|
| Lens |
|
Focal Length
|
Panorama: 2.8 mm; Detail: 5 mm–125 mm
|
|
Max. Aperture
|
Panorama: F1.4; Detail: F1.6-F3
|
|
Field of View
|
Panorama: H: 180°; V: 86°; Detail: H: 51.9°–3.0°; V:
39.7°–2.2°; D: 63.1°–3.7°
|
|
Optical Zoom
|
Panorama: NA;Detail: 25 ×
|
|
Focus Control
|
Auto; manual; semi-auto
|
|
Close Focus Distance
|
Panorama: 0.6 m (1.97 ft); Detail: 0.1 m–0.5 m (0.33"–
1.64")
|
|
Iris Control
|
Panorama: NA; Detail: Auto; manual; iris prio
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recogniz
e
|
|
Panoram
a: 2.8
mm;
Detail: 5
mm–125
mm
|
2,500 m
( 8202.1
0 ft)
|
987.5 m
( 3239.8
3 ft))
|
500 m
( 1640.4
2 ft)
|
|
PTZ
|
|
Pan/Tilt Range
|
Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°
|
|
Manual Control Speed
|
Pan: 0.1°/s–180°/s;
Tilt: 0.1°/s–90°/s
|
|
Preset Speed
|
Pan: 0.1°/s–180°/s;Tilt: 0.1°/s–90°/s
|
|
Preset
|
300
|
|
Tour
|
8 (up to 32 presets per tour)
|
|
Pattern
|
5
|
|
Scan
|
5
|
|
Power-off Memory
|
Yes
|
|
Idle Motion
|
Preset;Pattern;Tour;Scan
|
|
Intelligence
|
|
IVS (Perimeter Protection)
|
Tripwire; intrusion; crossing fence detection; loitering
detection; abandoned/missing object; fast moving;
parking detection; people gathering; human alarm
classification; linkage tracking
|
|
Auto Tracking
|
Auto tracking 3.0
|
|
SMD
|
SMD4.0
|
| Active Deterrence |
| Light Warning |
Red-blue light warning
Flash duration: 5 s–30 s
Flash frequency: high, medium, low |
| Sound Warning |
Offers 11 sound alarm and 10 custom sound alarms can
be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10. |
|
Video
|
|
Video Compression
|
Smart H.265+;H.265;Smart
H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
|
|
Streaming Capability
|
3 streams
|
|
Resolution
|
Panorama: 8M (4096 × 1860); 2M (2048 × 928); 1080p
(1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704
× 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352
× 240); Detail: 4M (2560 × 1440); 3M (2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF
(352 × 288/352 × 240)
|
|
Video Frame Rate
|
Main stream: 4 MP/3 MP/1080p/1.3 MP/720p@
(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@(1–25/30 fps)
Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps)
|
|
Bit Rate Control
|
CBR; VBR
|
|
Video Bit Rate
|
Panorama:
H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps；
Detail:
H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps;
|
|
Day/Night
|
Panorama: Auto; Color; B/W; Electronic
Detail: Auto; Color; B/W; Electronic
|
|
BLC
|
Yes
|
|
WDR
|
Panorama: DWDR; Detail: 120 dB
|
|
HLC
|
Yes
|
|
White Balance
|
Panorama: Auto; indoor; outdoor; tracking; manual;
sodium lamp; natural light; street lamp
Detail: Auto; indoor; outdoor; tracking; manual; sodium
lamp; natural light; street lamp
|
|
Gain Control
|
Panorama: Auto; manual; gain prio
Detail: Auto; manual; gain prio
|
|
Noise Reduction
|
Panorama: 2D NR; 3D NR
Detail: Auto: 2D NR; 3D NR
|
|
Motion Detection
|
Yes
|
|
Region of Interest (RoI)
|
Yes
|
|
Image Stabilization
|
Panorama: NA
Detail: Optical Image Stabilization (OIS)
|
|
Defog
|
Panorama: Electronic
Detail: Electronic
|
|
Digital Zoom
|
Panorama: NA
Detail: 16 ×
|
|
Image Rotation
|
Panorama: NA
Detail: 180°
|
|
S/N Ratio
|
Panorama: ≥55 dB
Detail: ≥55 dB
|
|
Audio
|
| Audio Compression |
PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2,
G.722.1, G.729 |
|
Network
|
| Network Port |
RJ-45 (100/1,000 Base-T) |
| Network Protocol |
HTTP;HTTPS;TCP/
IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.
1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;
PPPoE;RTMP;Bonjour;NFS |
| Interoperability |
ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method |
Unicast/Multicast |
| User/Host |
20 (total bandwidth: 64 M) |
| Storage |
Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser |
web5.0:
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 52 and later versions;
Safari 10 and later versions |
| Management Software |
DMSS; DSS Pro |
| Mobile Client |
iOS; Android |
|
Certification
|
| Certifications |
CE: EN55032/EN55024/EN50130-4 |
|
Port
|
| Alarm I/O |
1/1 |
| Audio I/O |
2/1 |
| Alarm Linkage |
Capture; recording; send email; preset; tour; pattern;
alarm digital input; audio; warning light |
| Alarm Event |
Motion/tampering detection; audio detection;
network disconnection detection; IP conflict
detection; memory card state detection; memory
space detection |
|
Power
|
| Power Supply |
12 VDC, 3 A ± 10%;PoE (802.3at) |
| Power Consumption |
Basic: 14 W;
Max: 25 W (illuminator + heating glass + Siren and Light
Active Deterrence + ICR + PTZ) |
|
Environment
|
| Operating Temperature |
–40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66;TVS 6000 V lightning proof; surge protection;
voltage transient protection |
|
Structure
|
| Product Dimensions |
194.2 mm × 160 mm × 311 mm (7.65" × 6.30" × 12.24")
(L × W × H) |
| Net Weight |
3.1 kg (6.83 lb) |
|
Accessories
|
| PFB300C |
Ceiling Mount Bracket |
| PFA150 |
Pole Mount Bracket |
| PFA151 |
Corner Mount Bracket |
| PFA111 |
Mount Adapter Component |
| PFB303S |
Parapet Mount Bracket |
| PFB301S-E |
Plane Mount Bracket |
| DH-PFA126 |
Water-proof Junction Box |
