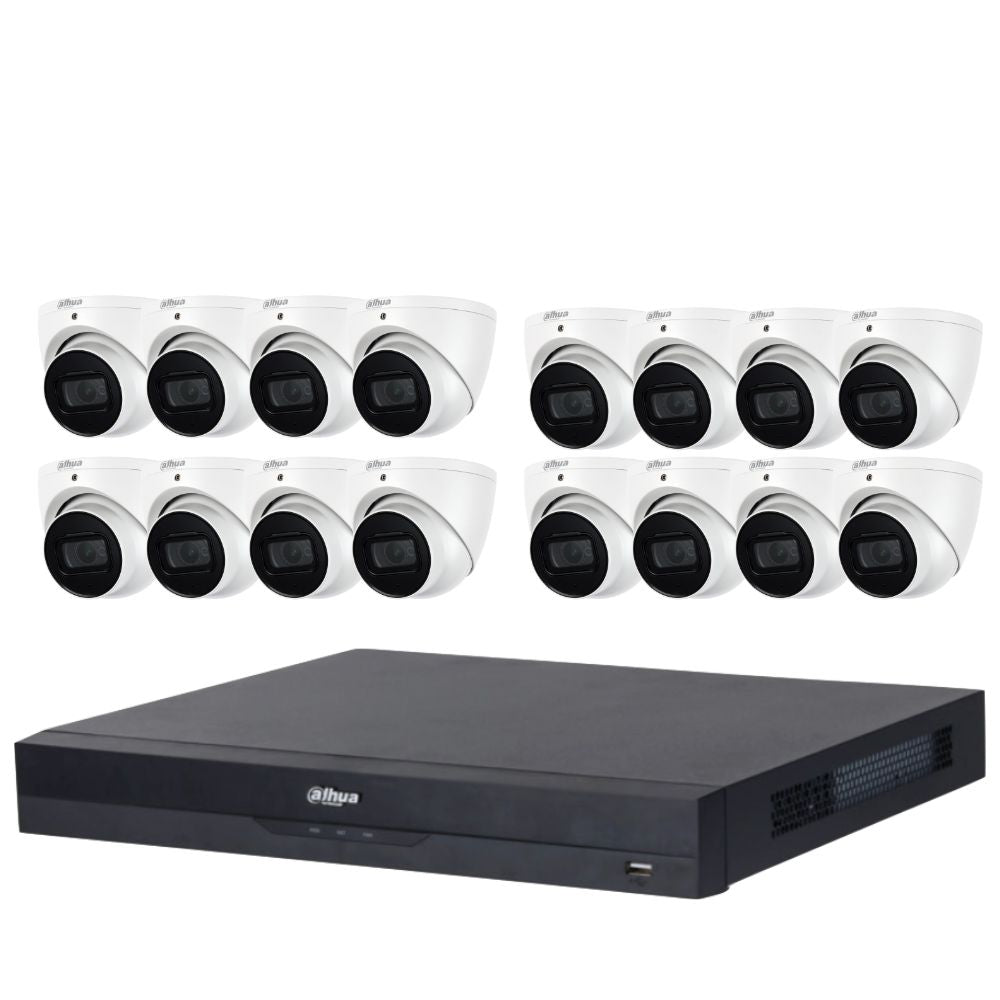

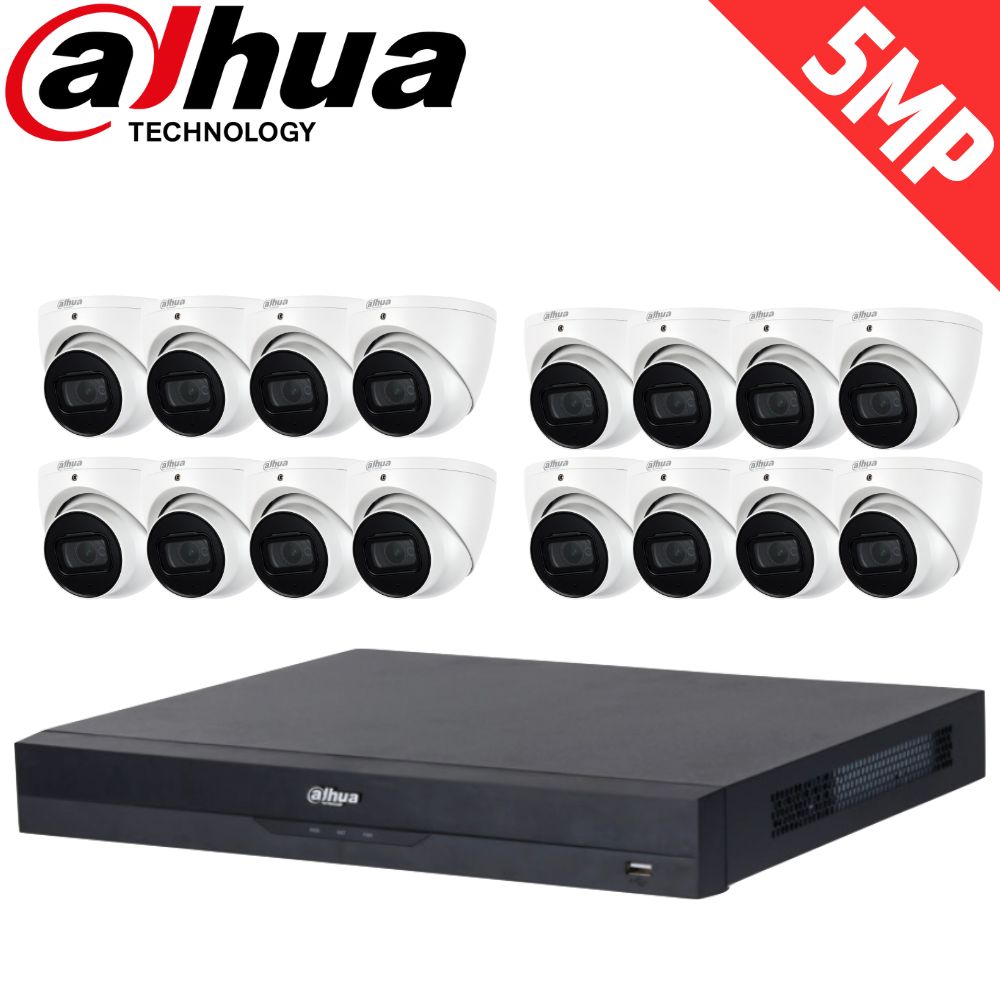

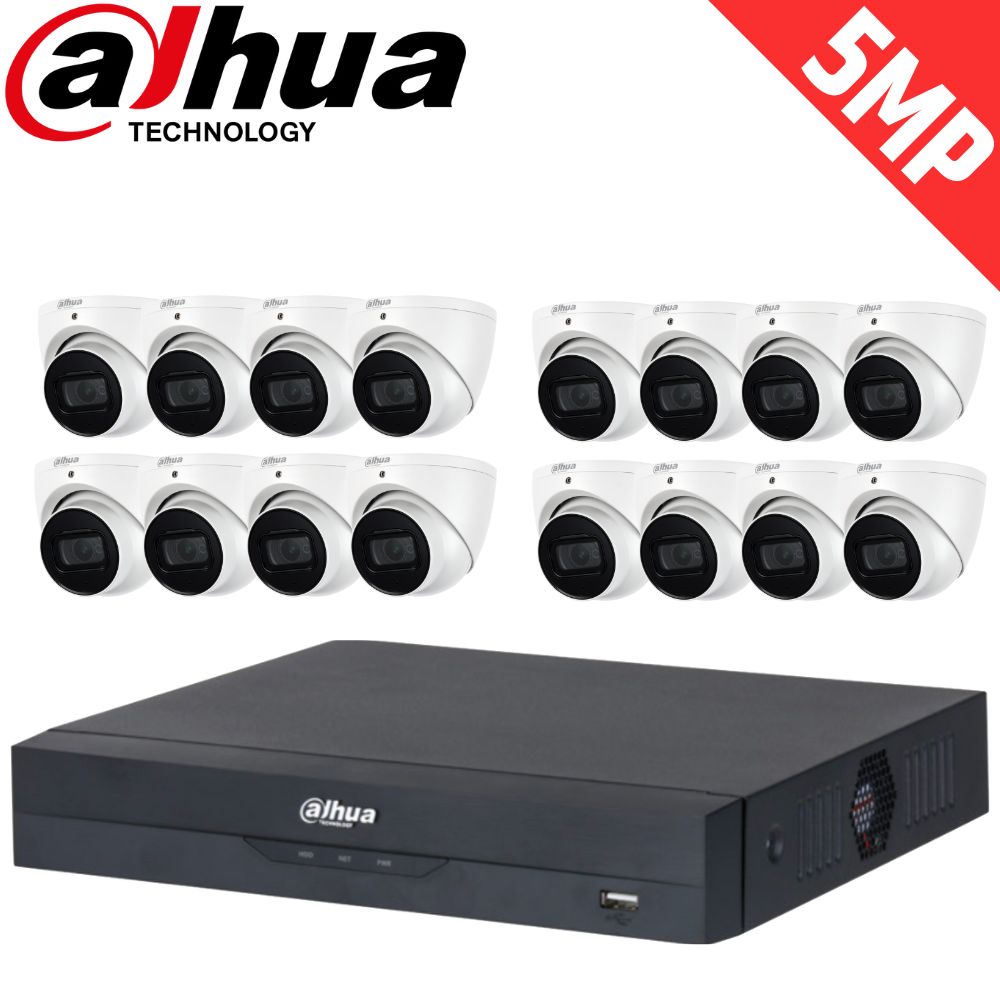

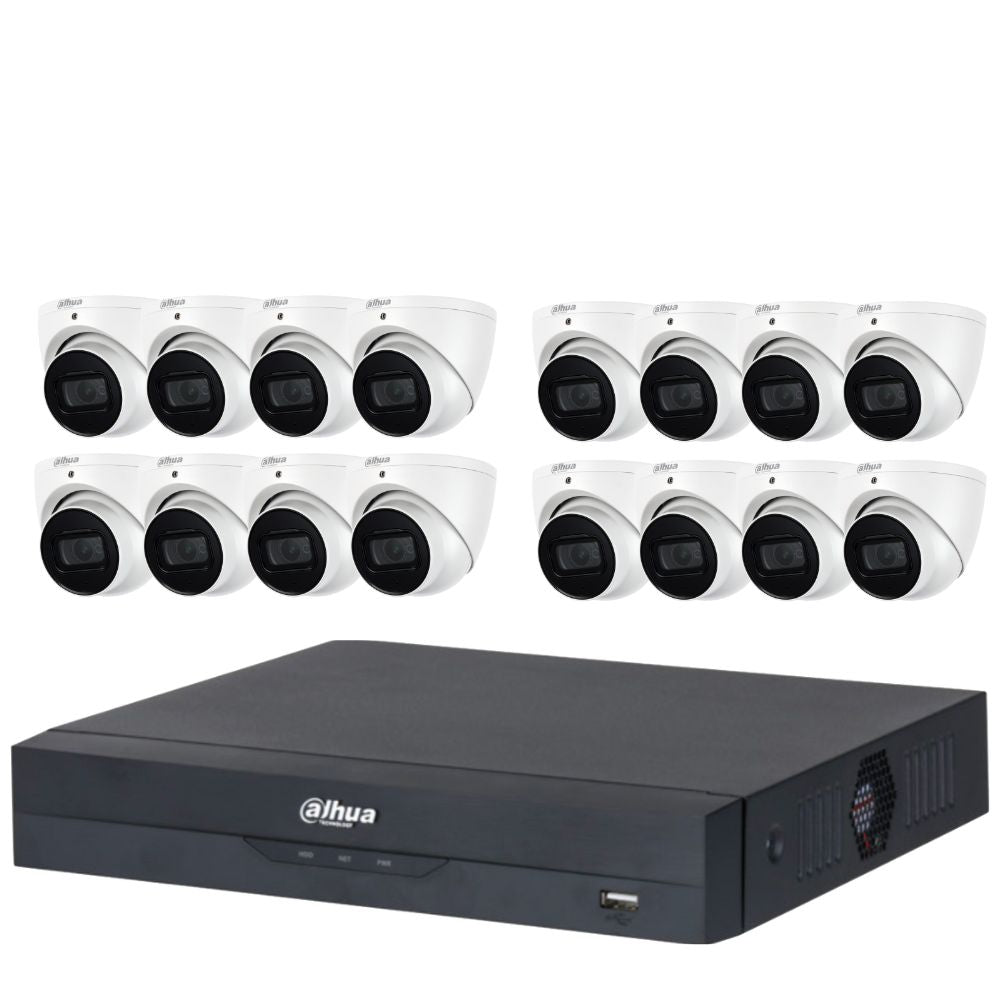

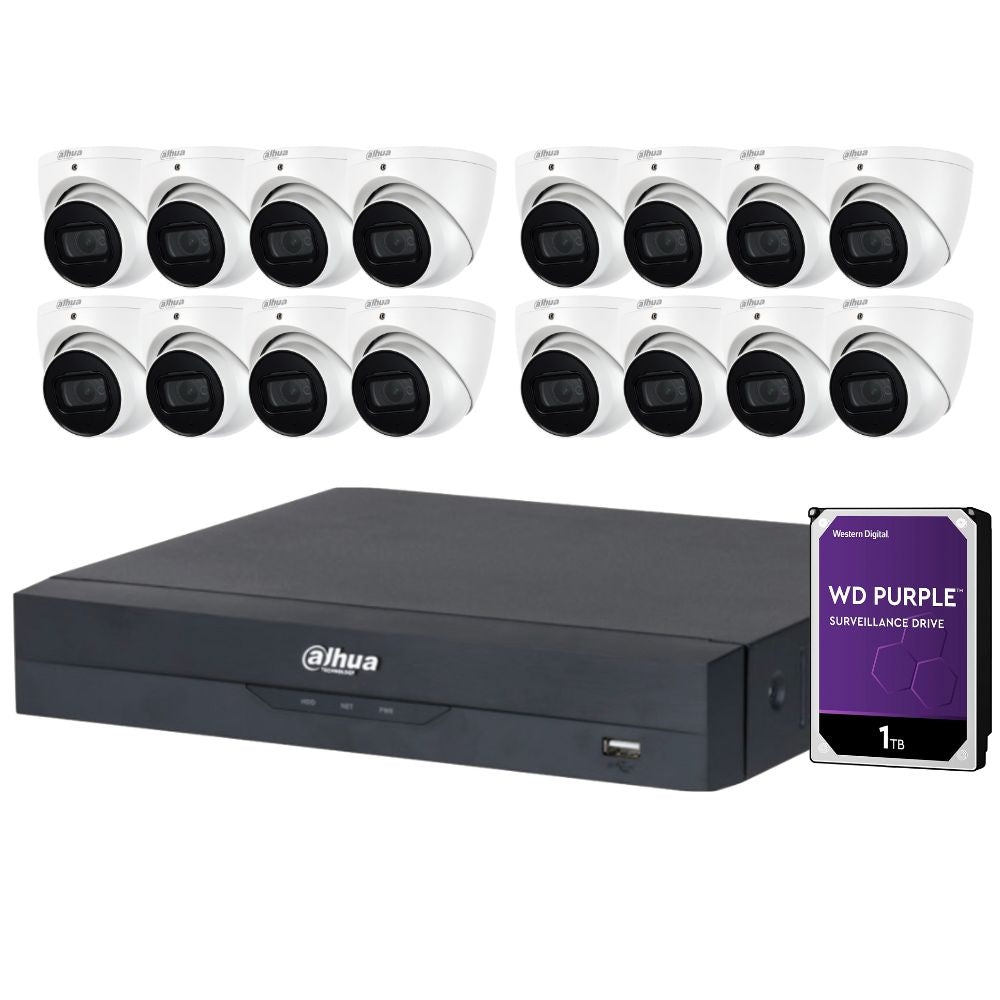

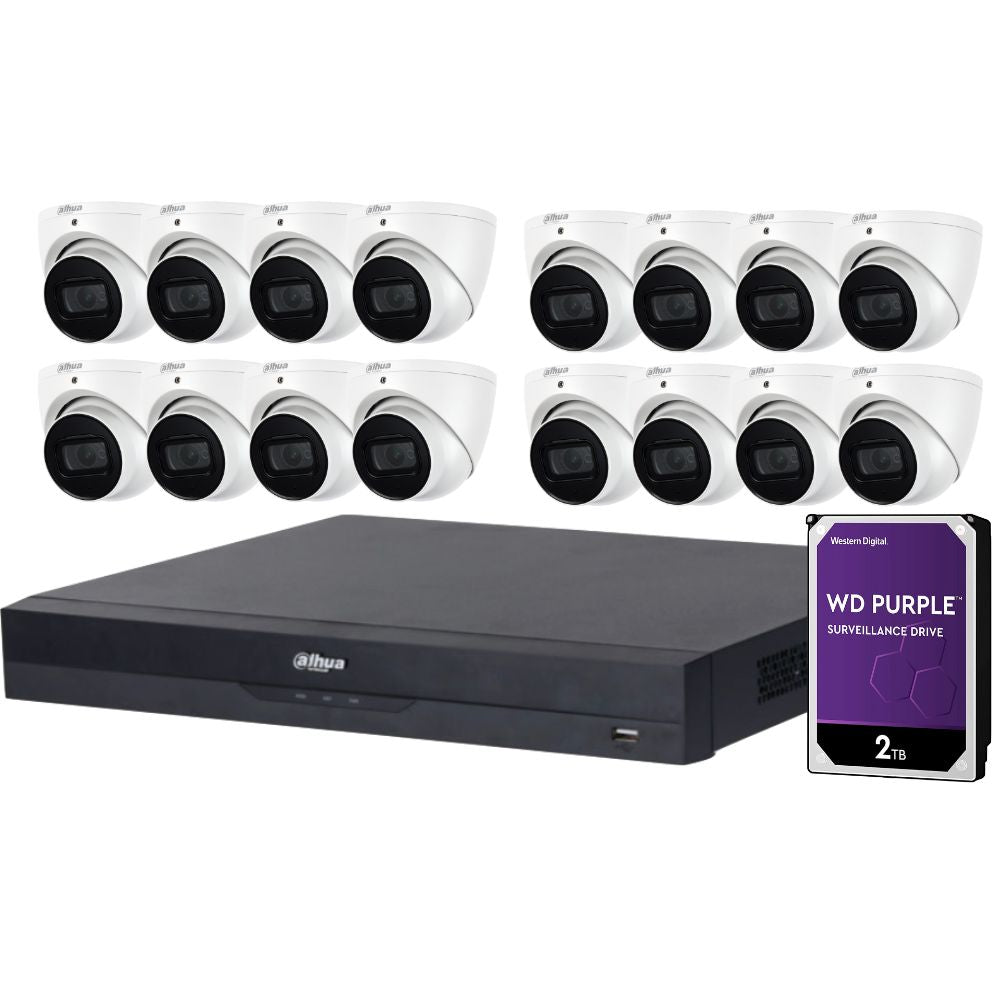

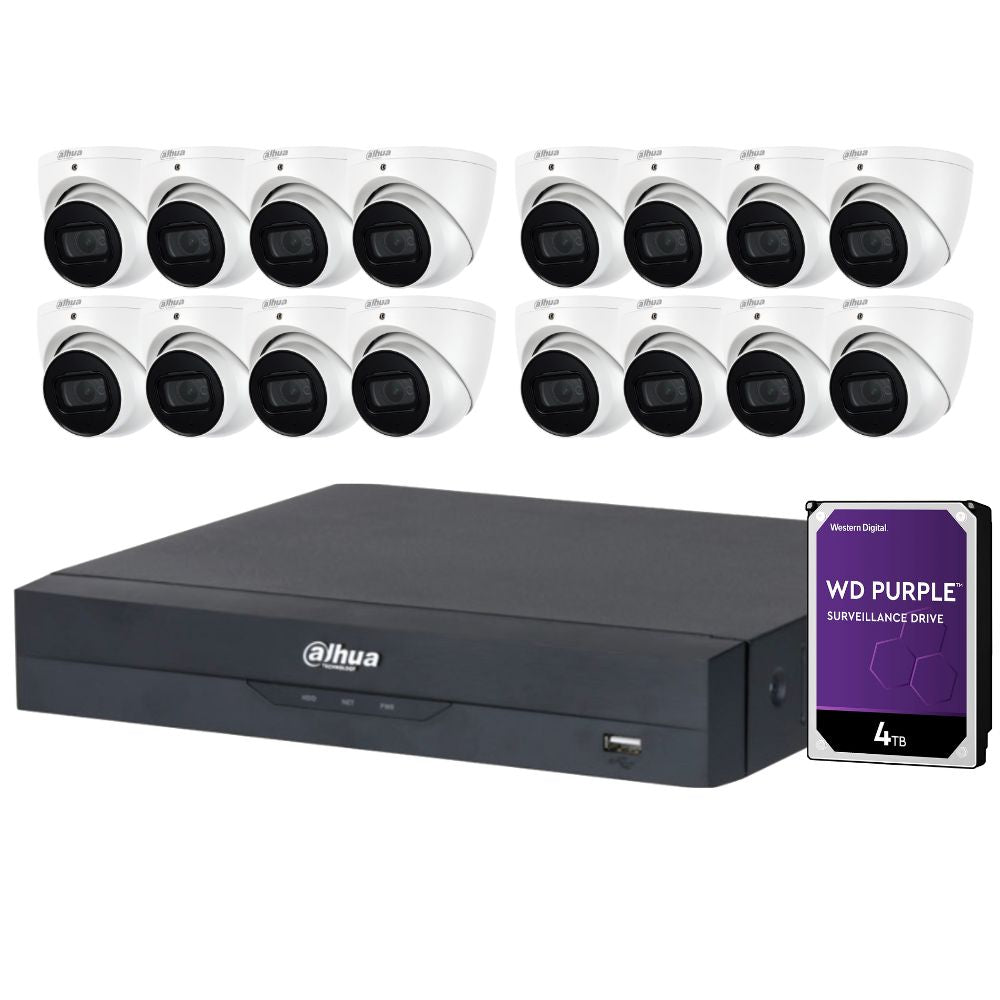

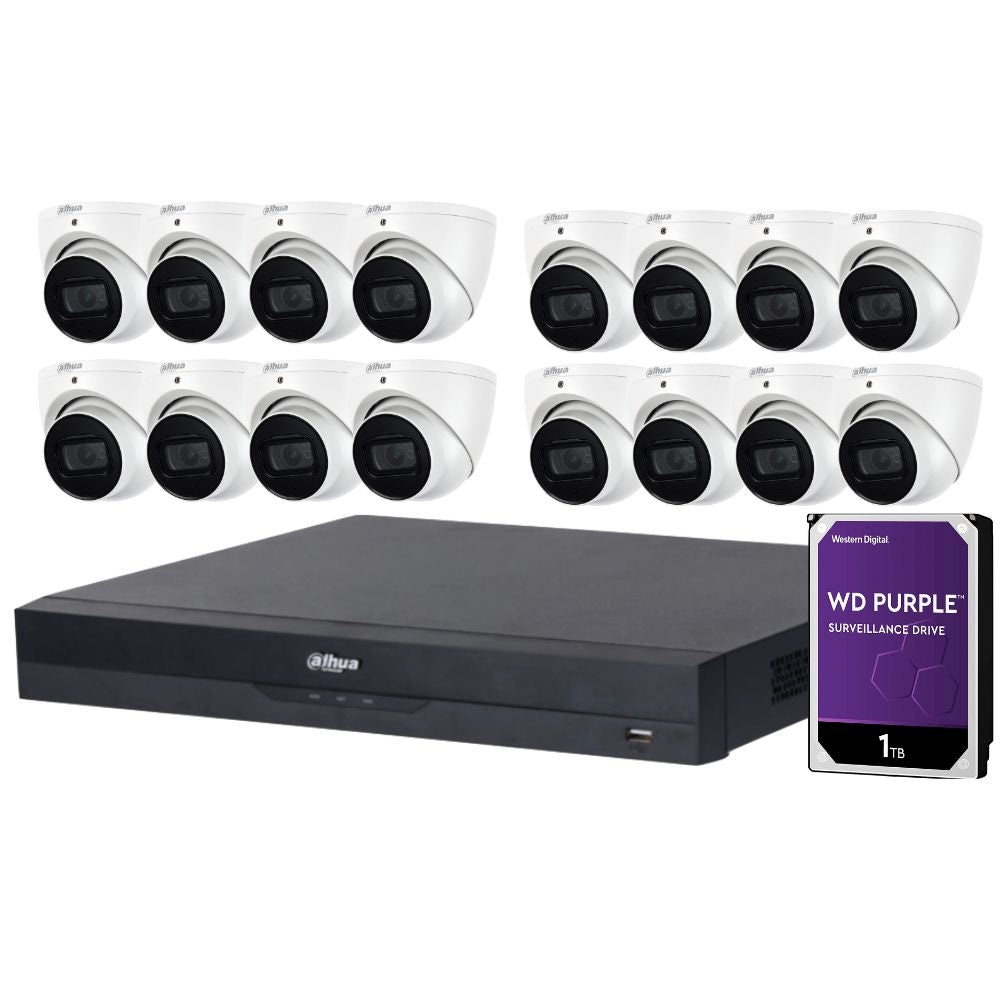

Dahua 16-Channel Security Kit: 16MP WizSense AI NVR, 16 X 5MP Lite Turret, Starlight, SMD

Description

Description

This Dahua Security Kit provides dependable and straightforward surveillance by integrating the latest WizSense AI Series NVR and the ever-reliable 5-megapixel Lite Series cameras. This combination results in a system that adds AI capabilities such as Smart Motion Detect from the NVR to improve the number of cameras in the systems.

Alongside the new features, this system also provides Starlight low-light sensors and built-in microphones.

Kit Includes

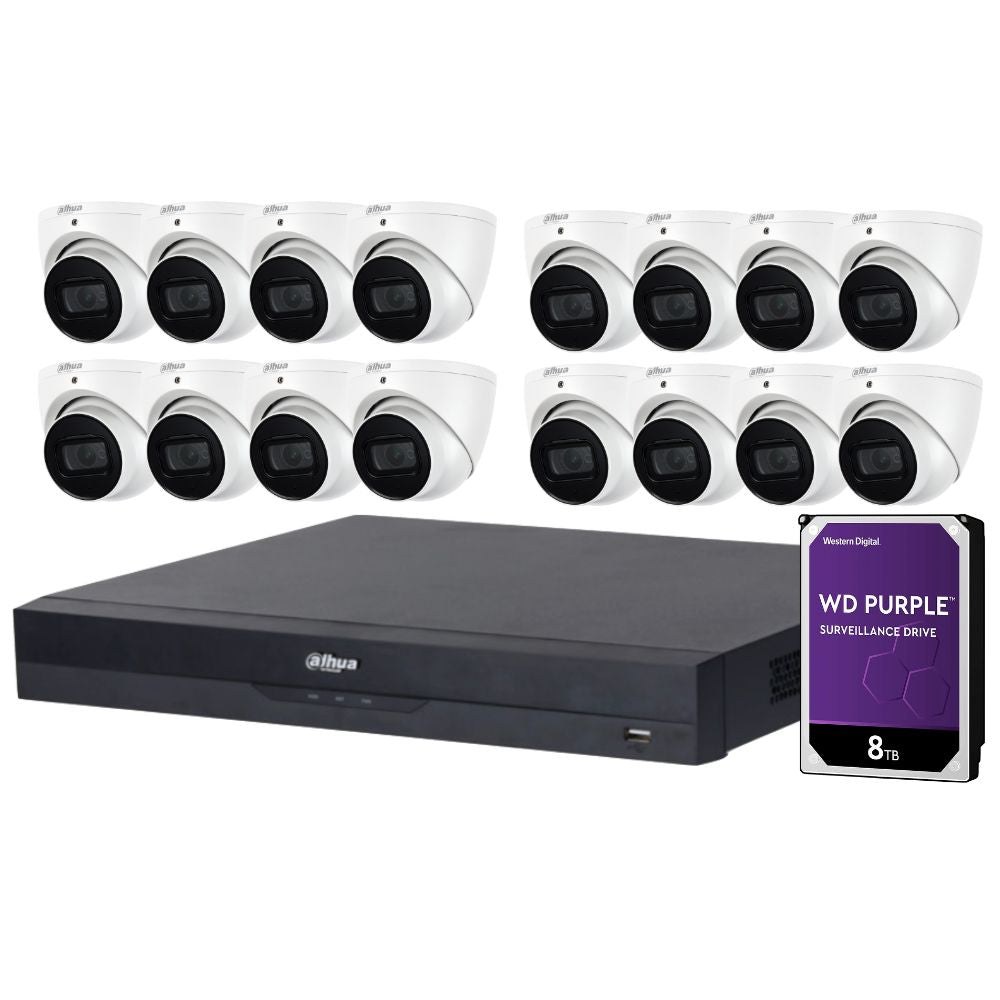

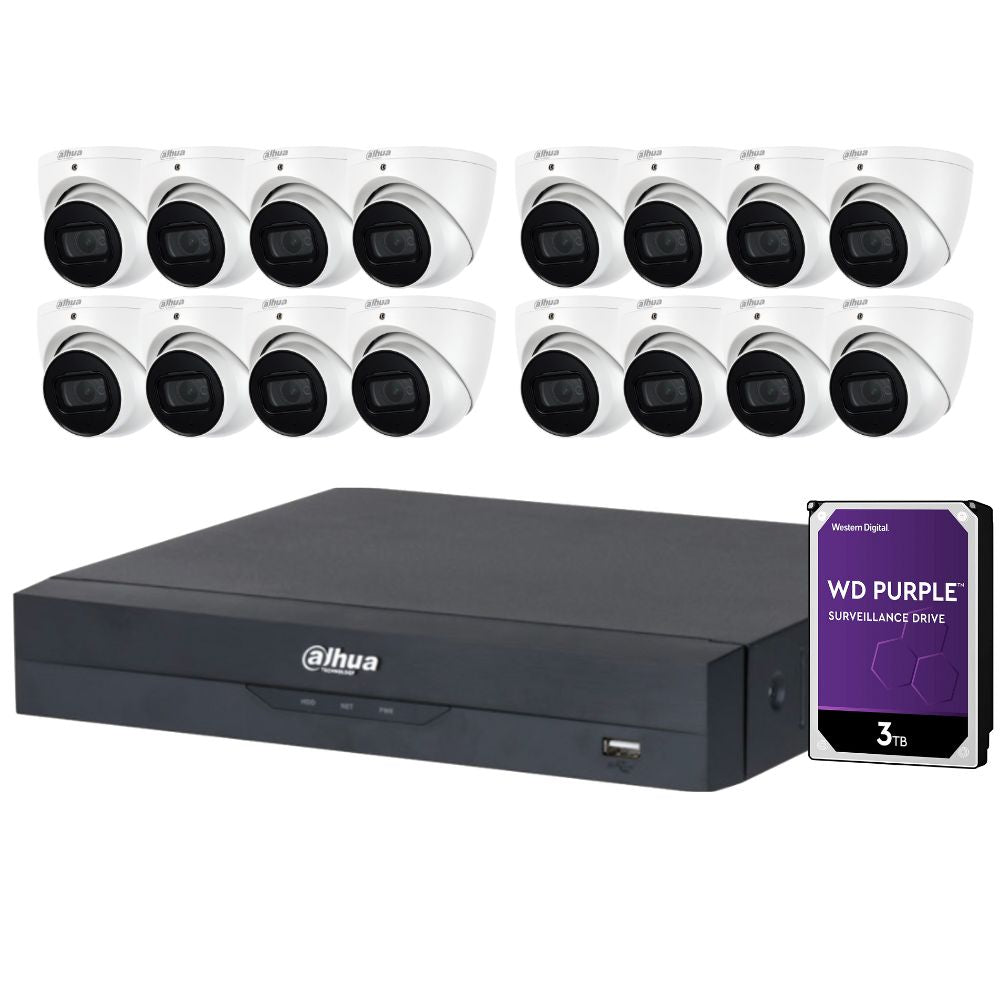

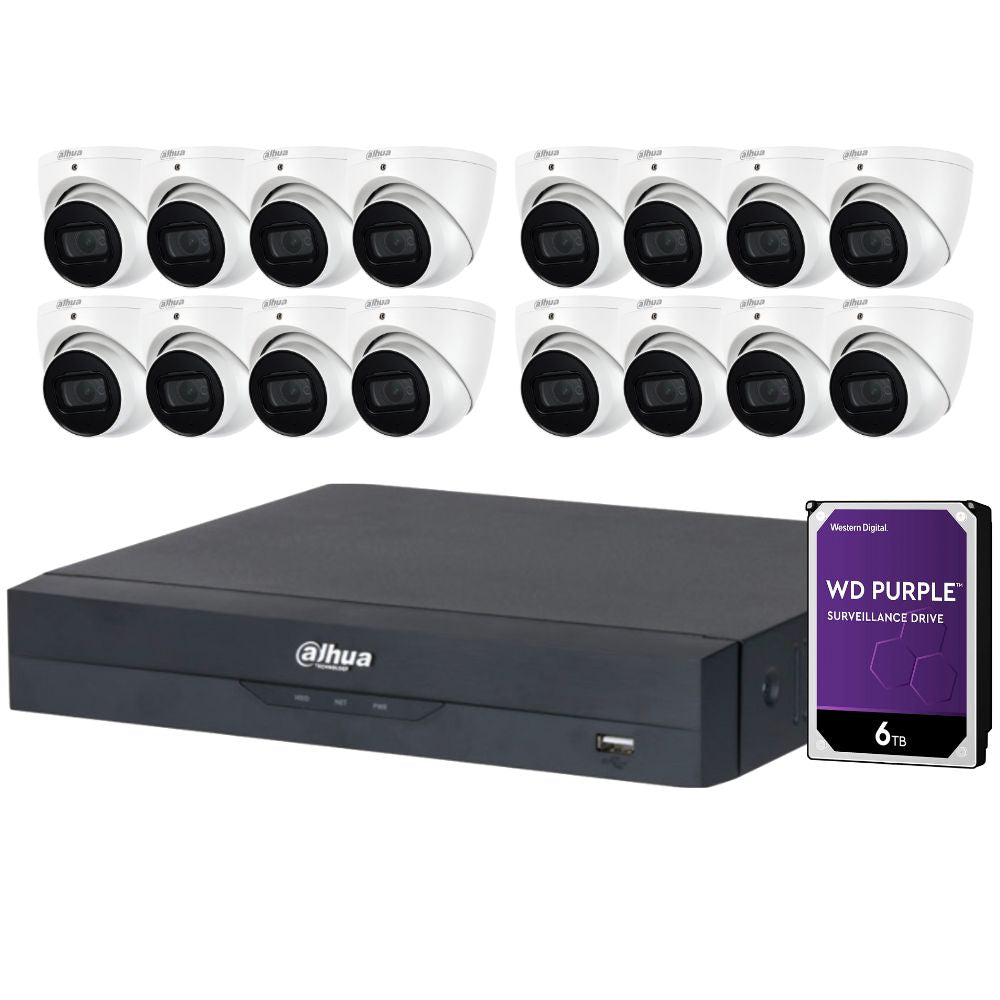

    • A hard drive is only included if an HDD capacity is included in the purchase.
    • HDD will come pre-installed in the NVR.
    • CAT5e or CAT6 ethernet cables are required for the operation of these devices.
    • Cables are not included in this bundle but can be purchased separately.
    • Camera mounts, brackets, and junction boxes are available for purchase.
    • They are optional and the cameras can be installed without them.

Camera Features

  • Records up to 5MP, 1/2.7'' CMOS image sensor, high image definition.
  • Built-in Infrared LED, with a maximum range of 30 meters.
  • Equipped with a Built-in Microphone
  • ROI, SMART H.264+/H.265+, flexible coding.
  • Starlight sensor generates clear images in near-complete darkness.
  • Rotation mode, WDR, 3D DNR, HLC, BLC, and digital watermarking, applicable to various monitoring scenes.
  • Intelligent Video Surveillance (IVS) smart functions such as tripwire and intrusion detection.
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).
  • 3 Years Back-to-Base Manufacturer Warranty!

Recorder Features

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  • The new AI Series supports increased bandwidth and improved decoding capability
  • Access, storage or forwarding at 256 Mbps (180 Mbps when AI function is enabled).
  • Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
  • AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
  • AI by Camera: Face detection and recognition, perimeter protection; SMD Plus;
  • ANPR; people counting; stereo analysis; heat map.
  • Security baseline 2.3
  • Up to 16-Channel SMD: Smart Motion Detection effectively eliminates false alerts, as it can filter humans and vehicles in motion detection.
  • Smart Motion Detection Plus, filters the motion detection alarm triggered by non-concerned target and recognize human and vehicle effectively, sending alarms when a human or vehicle intrudes.
  • Increased bandwidth and improved decoding capability.
  • Supports cameras with Quick Pick Technology: Quick Pick can quickly detect targets by attributes such as the colour of clothing and vehicles, and accurately locate targets in search, facilitating enhanced search efficiency and retrieval.
  • Supports high-precision face recognition by facial attributes in image search and face attribute search.
  • Smart Illumination based on conditions, compatible with dual illuminator cameras such as TiOC2.0
  • Supports EPTZ (with compatible cameras): Zoom in and track multiple humans and vehicles (up to 3) when an alarm is triggered, similar to PTZ linkage. Tracks target until it disappears.
  • Enhanced Mode: Extends POE transmission up to 200m.
  • Supports One-Click Disarming for Active deterrence and push notifications.

More Info

Smart H.265+ & Smart H.264+

With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission.

Wide Dynamic Range

With advanced Wide Dynamic Range (WDR) technology, the Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark areas can get clear video even in a high-brightness environment or with a backlight shadow.

Starlight

With advanced image processing and optical technology, Dahua Starlight technology can provide clear colourful video in an environment of low illuminance. It widely applies to various environments of low illuminance.

Intelligent Video Surveillance

With an advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.

Durable IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure works normally after soaking in 1 m deep water for 30 minutes.

Wide Voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to an outdoor environment with unstable voltage.

Downloads
Tech Specs

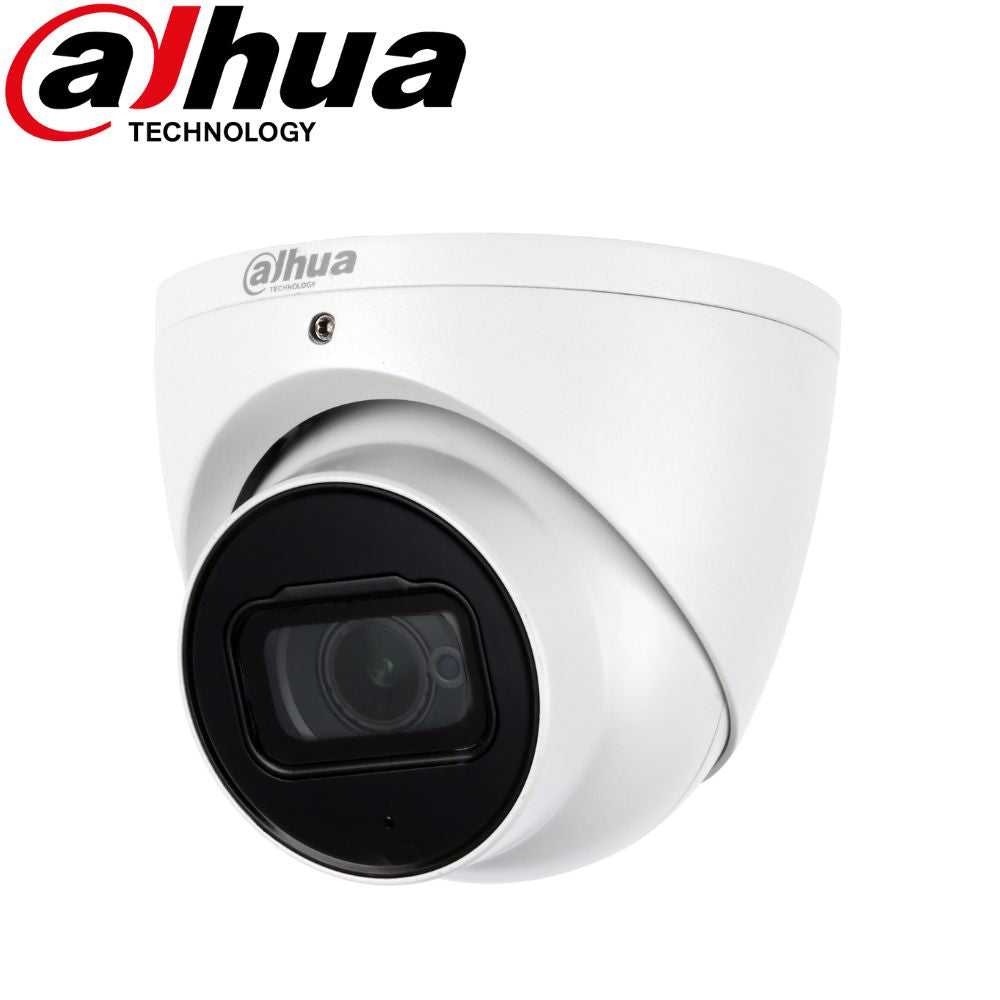

Dahua 5MP Turret Lite - DH-IPC-HDW2531EMP-AS-0280B-S2-AUS
Camera
Image Sensor 1/2.7” 5 Megapixel progressive CMOS
Effective Pixels 2592 (H) × 1944 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.008 Lux @F1.6
S/N Ratio ?56 dB
IR Distance 30 m (98.43 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 2
Pan/Tilt/Rotation Range Pan: 0?–360?; Tilt: 0?–78?; Rotation: 0?–360?
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal 103.0° × Vertical 71.0° × Diagonal 132.0°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.9 m (2.95 ft)
DORI Distance Detect: 56.0 m (183.8ft)
Observe: 22.4 m (73.49f)
Recognize: 11.2 m (36.75ft)
Identify: 5.6 m (18.37ft)
Smart event
General IVS Analytics Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG(only supported by the sub stream)
Smart Codec Yes,Smart H.265+/ Smart H.264+
Video Frame Rate Main stream:
2592 × 1944 (1 fps-20 fps)
2688 × 1520 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
Stream Capability 2 streams
Resolution 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32Kbps ~ 8192Kbps H.265: 12Kbps ~ 8192Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726; AAC
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF(Profile S/Profile G); CGI; P2P; Milestone; Genetec
User/Host 20
Edge Storage FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Browser IE, Chrome, Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <7.2W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Temperature -40° C to +60° C (-40° F to +140° F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 93.6 mm × ?106 mm (3.7" × ?4.2")
Net Weight 530 g (1.1 lb)
Gross Weight 800 g (1.7 lb)

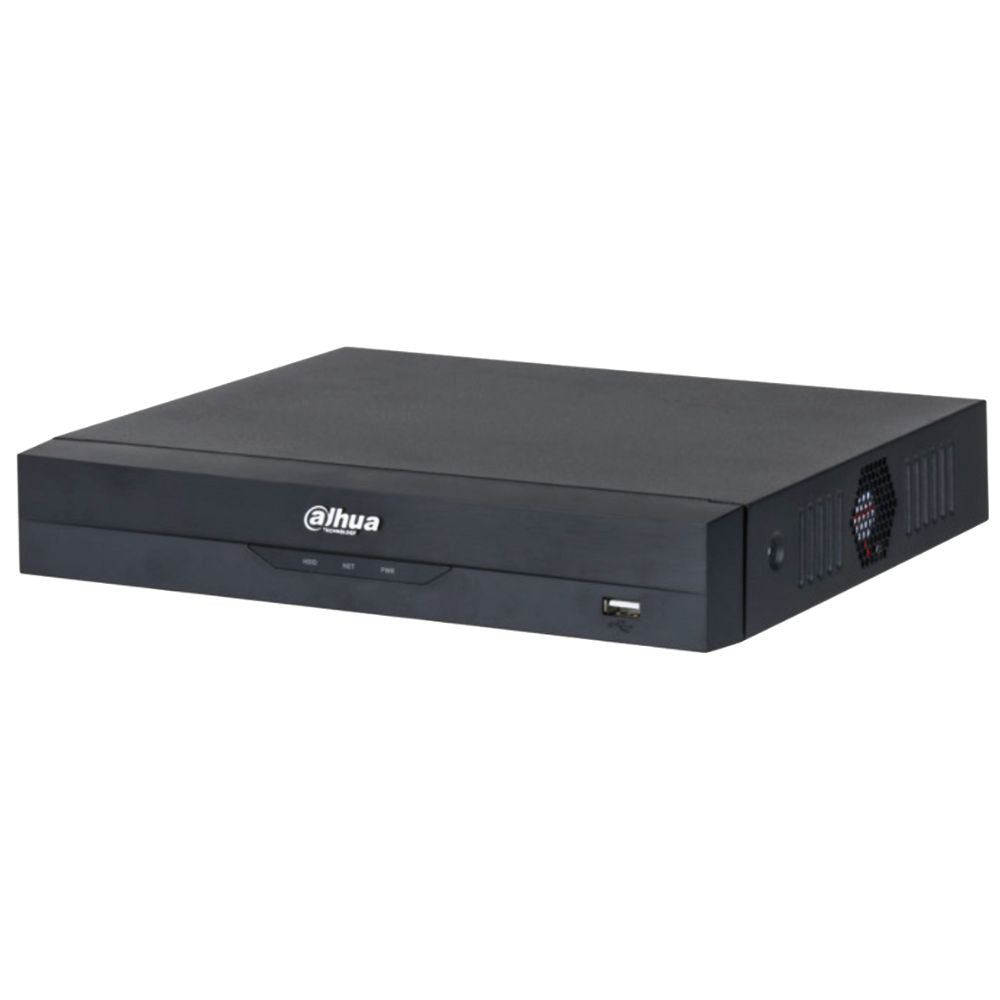

Dahua 16-Channel WizSense NVR: 16MP - DHI-NVR4216-16P-AI/ANZ
Face Detection | Perimeter Protection | SMD 4.0 | Smart H.265+ Encoding

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
AI
AI by Recorder Face detection, face recognition, perimeter protection,
and SMD Plus;
AI by Camera Face detection; face recognition; perimeter protection;
SMD Plus; ANPR; people counting; stereo analysis; heat
map
Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)
2 channels, 10 IVS rules for each channel
Perimeter Performance of
AI by Camera (Number of
Channels)
8 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask;
beard
Face Detection
Performance of AI by
Recorder (Number of
Channels)
1 channel (up to 12 face images/s each channel)
Face Detection
Performance of AI by
Camera (Number of
Channels)
8 channels
Face Recognition
Face Database Capacity Up to 10 face databases with 200,00 images, with a
total capacity of 2.5 G. Name, gender, birthday, address,
credential type, credential No., countries & regions and
state can be added to each face image.
Face Recognition
Performance of AI by
Recorder (Number of
Channels)
8-channel FD (by camera) + FR (by recorder),image
stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video
stream: 12 face images/s
Face Recognition
Performance of AI by
Camera (Number of
Channels)
8 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor
vehicle , reducing false alarms caused by leaves, rain and
lighting condition change
SMD Plus by Camera 8 channels
Vehicle License Plate Comparison
ANPR by Camera (Number
of Channels)
4 channels
License Plate Database
Capacity
1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist
Audio and Video
Access Channel 16 channels
Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording
and 256 Mbps outgoing
AI-enabled: 180 Mbps incoming, 180 Mbps recording and
180 Mbps outgoing
Resolution 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p;
960p; 720p; D1; CIF
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5
MP@30 fps; 8-channel 4 MP@30 fps
AI-enabled: 1-channel 16 MP@30 fps; 2-channel
12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel
5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel
1080p@30 fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for
VGA and HDMI is configurable.
Multi-screen Display 1st Screen: 1/4/8/9
2nd Screen: 1/4/8/9
Third-party Camera
Access
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF,
Canon
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;
FTP; Alarm Server; IP Search (Support Dahua IP camera;
DVR; NVS; etc.); P2P; auto register
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
Recording Playback
Multi-channel Playback Up to 16 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)
Storage
Disk Group Yes
Alarm
General Alarm Motion detection; privacy masking; video loss; scene
changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage error; disk full; IP
conflict; MAC conflict; login locked; and cybersecurity
exception
Intelligent Alarm Face detection; face recognition; perimeter protection;
SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio;
buzzer; log; preset; email

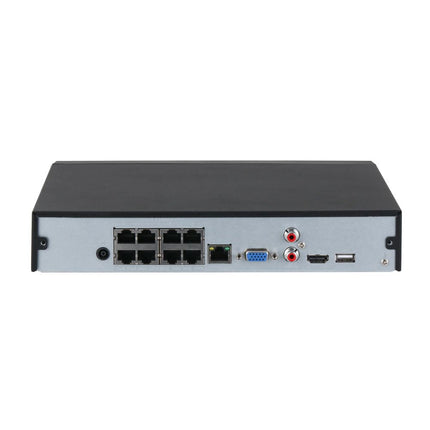

Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input 4 channels
Alarm Output 2 channels
HDD Interface 2 SATA ports, up to 16 TB.The maximum HDD capacity
varies with environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 16 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 100–240 VAC, 47-63 Hz
Power Consumption Total output of NVR is <10 W(without HDD) Total output
power of PoE is 72W,the maximum output power of
asingle port is 25.5W
Net Weight 2.60 kg (5.73 lb)
Gross Weight 3.80 kg (8.38 lb)
Product Dimensions 375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" ×
2.09") (W × L × H)
Packaging Dimensions 451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" ×
5.79") (W × L × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH)
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Videos

Day Sample

Night Sample

Dahua Starlight Technology

3-Years Warranty

The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

  • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
  • We will not cover inbound shipping of the return to us.
  • We will cover outbound shipping for any replacements to the customer.
  • We will need the serial number of the product and your order number.
  • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
  • Dahua 16-Channel Security Kit: 16MP WizSense AI NVR, 16 X 5MP Lite Turret, Starlight, SMD

    Product form

    SKU: DH-16CHL16X5MPT-0TB
