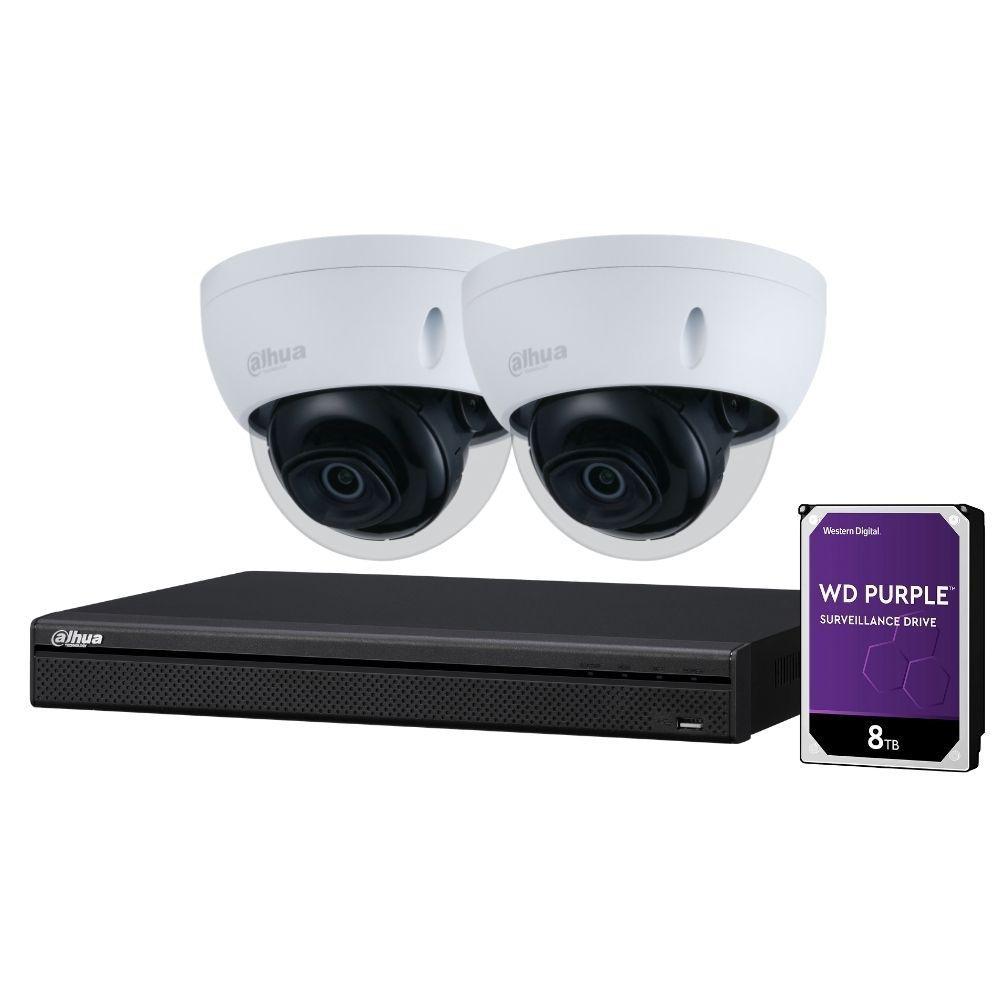

Dahua 4-Channel Security Kit: 8MP (Ultra HD) NVR, 2 X 5MP Fixed Dome, WizSense + Starlight

SKU DH-4CHL2X5MPD+0TB
by Dahua
Save up to $293.00 Save $105.00
Original price $576.00
Original price $576.00 - Original price $1,556.00
Original price $576.00
Current price $471.00
$471.00 - $1,263.00
Current price $471.00
Upgrade Hard Drive: No Hard Drive
Upgrade NVR: 4CH NVR 8MP Lite - DHI-NVR4104HS-P-4KS2/L
Description
Description

Dahua 4-Channel Security Kit: 8MP (Ultra HD) NVR, 2 X 5MP Fixed Dome

This Dahua Security Kit is built around a 4-Channel 8MP (4K Ultra HD) NVR (NVR4104HS-P-4KS2/L). It comes with 5MP Dome Cameras (IPC-HDBW3541E-S). The cameras are equipped with Dahua's WizSense for advanced AI features and the Starlight technology which increases visual clarity in low-light environments.

WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.

Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.

Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

Features

  • 2 x 5MP Dome Cameras. Equipped with a 2.8mm Fixed lens. Supports up to 2592 × 1944 resolution.
  • Quad-Core 4-Channel 8MP (4K Ultra HD) NVR. Supports 2-Channel @ 8MP (30fps). HDMI/VGA simultaneous video output.
  • Plug & Play setup with 4 Independent PoE network interfaces. Max 80Mbps Incoming Bandwidth. Supports Smart Search and Audio Input/Output.
  • OPTIONAL UPGRADE: 8-Channel 8MP NVR (NVR4108HS-8P-4KS2/L) with 8 independent PoE (Plug and Play) ports or 16-Channel 8MP NVR (NVR4216-16P-4KS2) with 16 independent PoE ports.
  • Features Smart H.265+/H.265/Smart H.264+/H.264 high-efficiency video encoding and Triple-Streaming.
  • Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection.
  • Smart Motion Detection Plus (SMD+), dramatically reduces false alarms in motion detection by only detecting humans and vehicles.
  • Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
  • Starlight technology generates clear colour images in near-complete darkness.
  • Built-in Infrared LED with a maximum IR distance of 50 meters (164 feet).
  • 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
  • 1 x SATA III port, with a maximum capacity of up to 6TB for each HDD.
  • 3 Years Back-to-Base Manufacturer Warranty!

Kit Includes


More Info
More Info

Dahua IPC-HDBW3541E-S Security Camera

SMD Plus
With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission.

Perimeter Protection
With a deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In the restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection are based on the target type (such as tripwire, intrusion, fast-moving, parking detection, loitering detection, and gathering detection) are largely reduced.

Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colourful video. Even in an environment of minimum illumination, this technology can guarantee a good image effect.

Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, the Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark areas can get clear video even in a high brightness environment or with backlight shadow.

Weather-Proof IP67 Rating
The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can works normally after soaking in 1-meter deep water for 30 minutes.

Wide Voltage Range
The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to the outdoor environment with unstable voltage.

Tech Specs
Tech Specs

Dahua IPC-HDBW3541E-S Security Camera


Camera

Image Sensor

1/2.7” 5Megapixel progressive CMOS

Max. Resolution

2592 (H) ×1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30IRE)

0.0005 Lux@F1.6 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

56 dB

Illumination Distance

50 m (164.0 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°; Tilt: 0°–65°; Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.3 ft) 6 mm: 3.2 m (10.5 ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine an intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG(only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (2592 × 1944@1–20 fps)

(2688 × 1520@1–25/30 fps)

sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)

third stream (1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; scene changing; intensity change; tripwire; intrusion; SMD

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone;

Genetec

Scene Self-adaptation (SSA)

Yes

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<7.3W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than 95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

81 mm × ?109.9 mm (3.2" × ?4.3")

Net Weight

378 g (0.8 lb)

Gross Weight

523 g (1.2 lb)



Dahua NVR4104HS-P-4KS2/L 4-Channel Network Video Recorder


System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

4/8 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity

2ch@4K(30fps)/8ch@1080P(30fps)

Multi-screen Display

4CH: 1/4

8CH: 1/4/8/9

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate

80Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

Video Loss and Tampering

Alarm input

N/A

Alarm output

N/A

Playback and Backup

Playback

4CH: 1/4

8CH: 1/4/9

Search Mode

Time /Date, MD and Exact Search

(accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface

1 RJ-45 Port (10/100Mbps)

Ethernet Port

1 Independent 100Mbps Ethernet Port

PoE

4 Ports(IEEE802.3at/af)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

1 SATA III Port, Up to 6 TB capacity for each HDD

HDD Mode

Single

Auxiliary Interface

USB

2 ports (1 Rear USB2.0, 1 Front USB2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC48V/1.5A

Power Consumption

NVR: <7.5W (Without HDD)

PoE: Max 25.5W for a single port, 50W in total

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

Compact 1U, 260mm×224.9mm×47.6mm

(10.2" x 8.9" x 1.9")

Net Weight

0.8kg (1.76 lb) (without HDD)

Gross Weight

1.6kg(3.53 lb)(without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL60950-1
