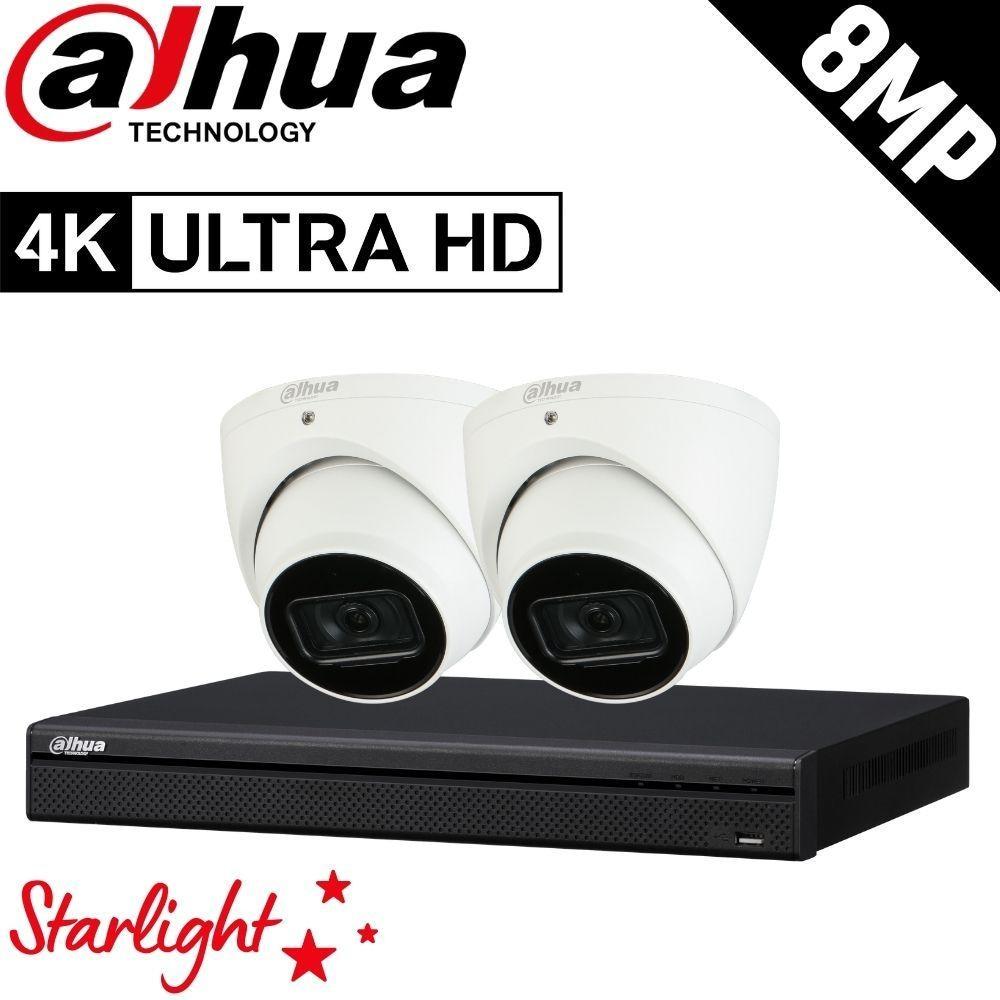

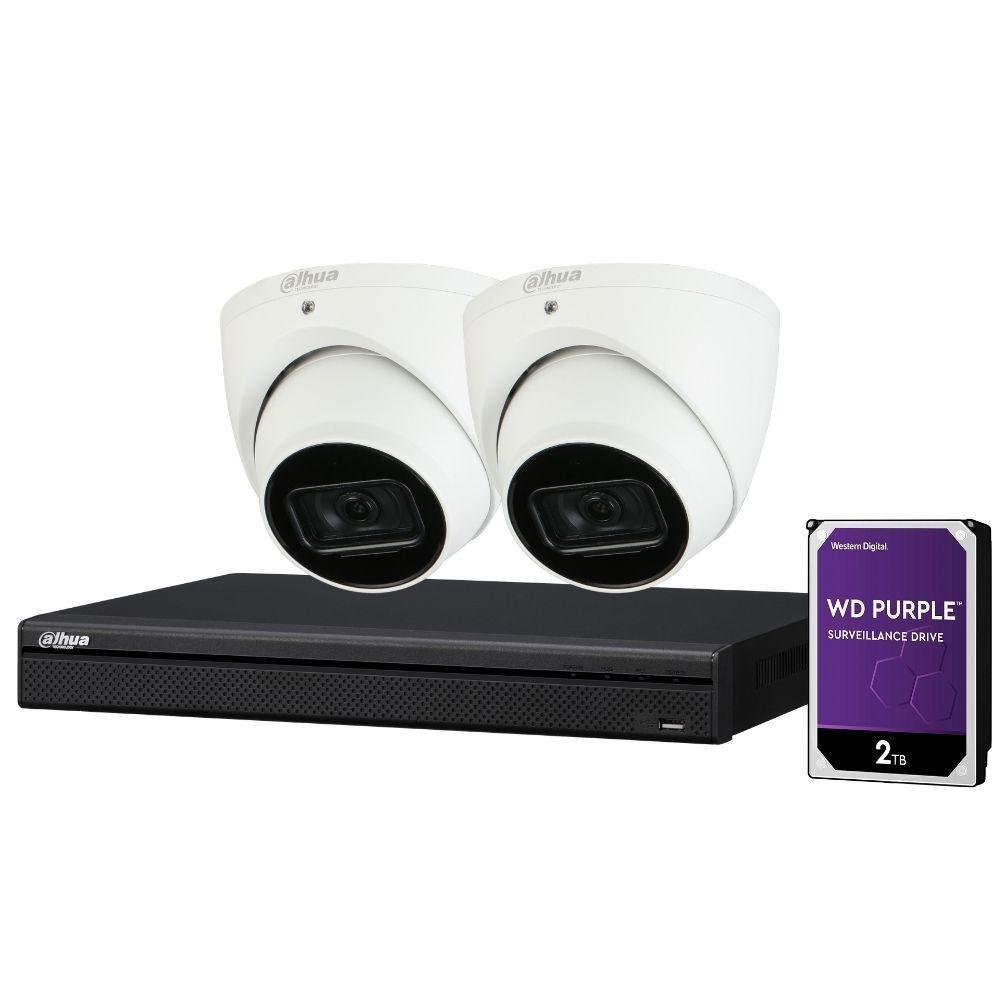

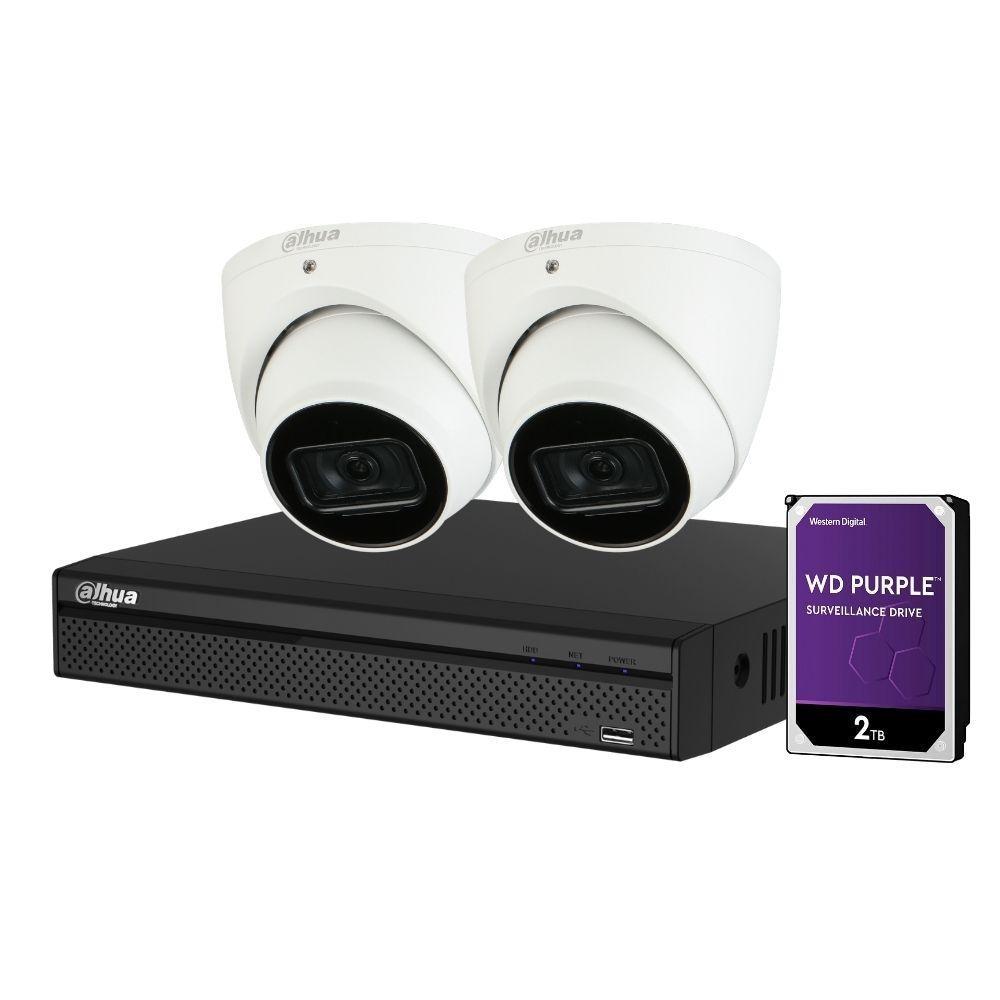

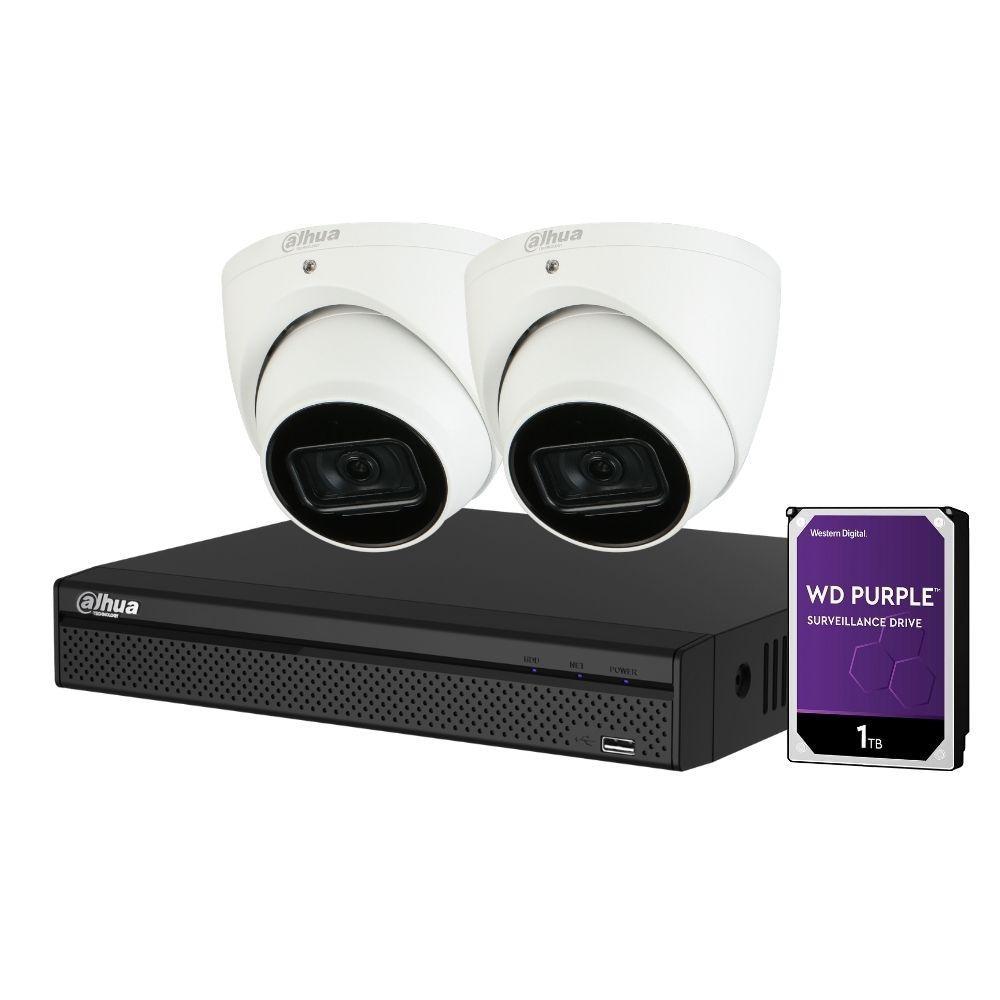

Dahua 4-Channel Security Kit: 8MP (Ultra HD) NVR, 2 x 8MP Fixed Turret, Lite + Starlight

Description

Description

Starting February 2023, the 16-Channel Lite NVR Version of this system will be sold with the latest Dahua 16-Channel WizSense AI NVR instead.

Old Model: DHI-NVR4216-16P-4KS2/L
New Model: DHI-NVR4216-16P-AI/ANZ

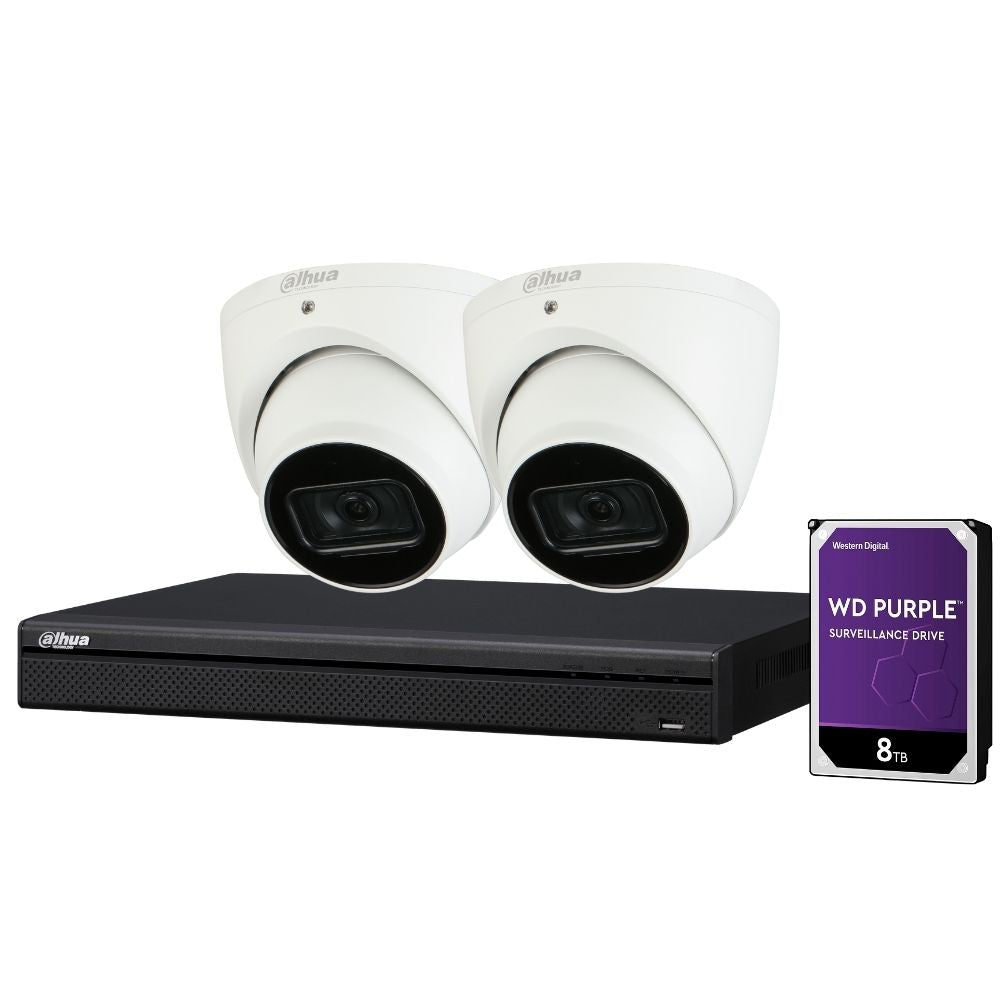

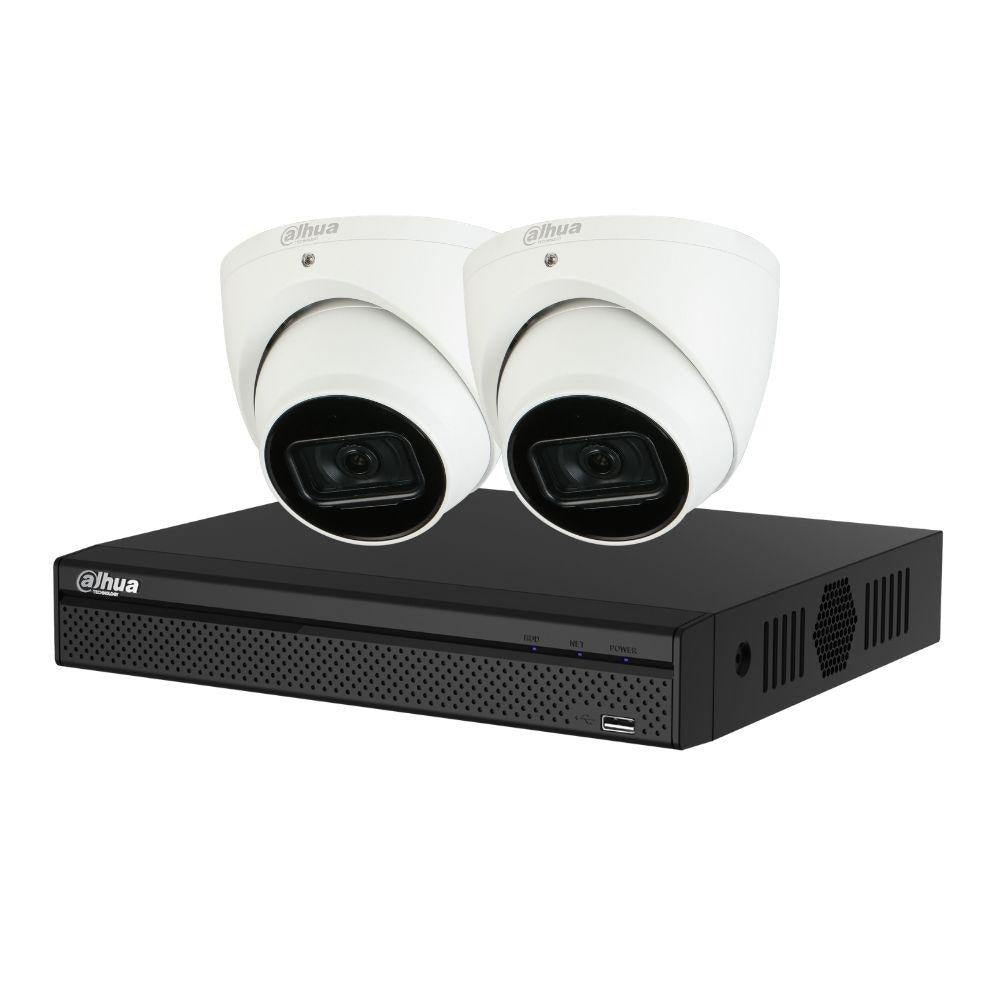

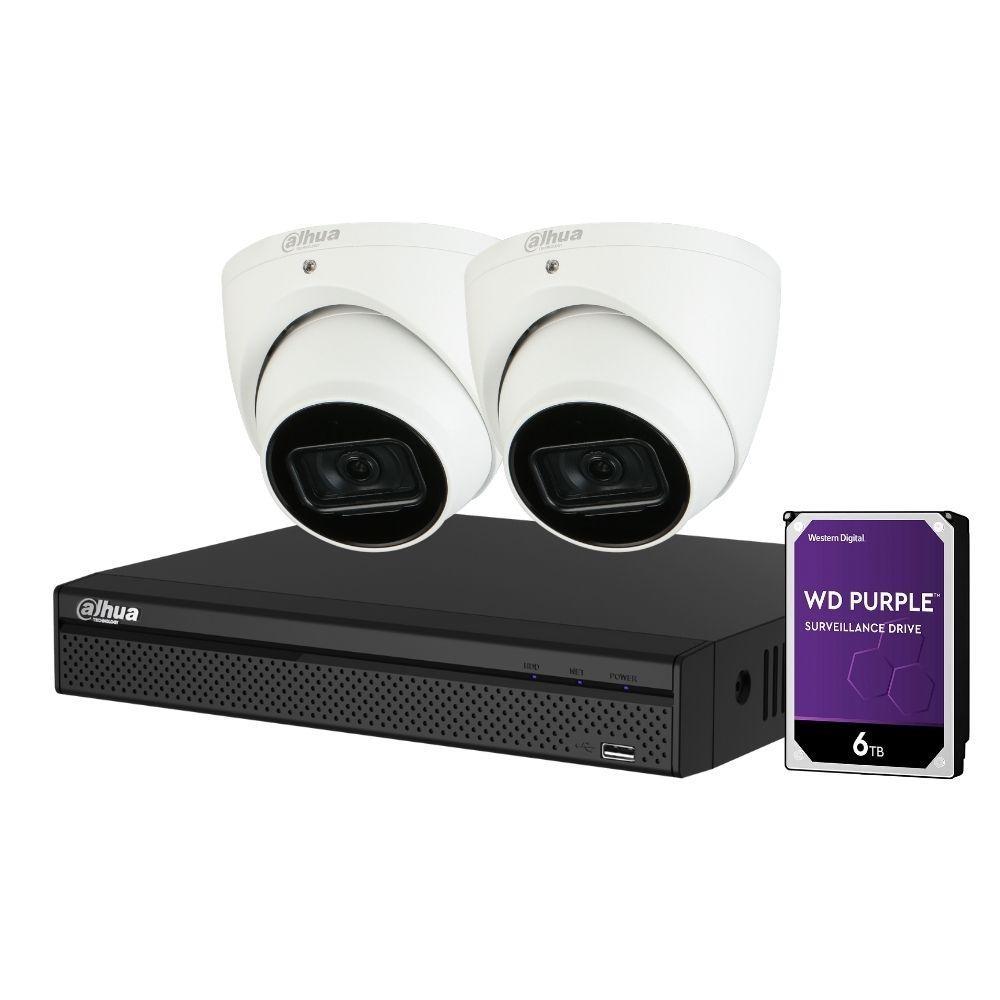

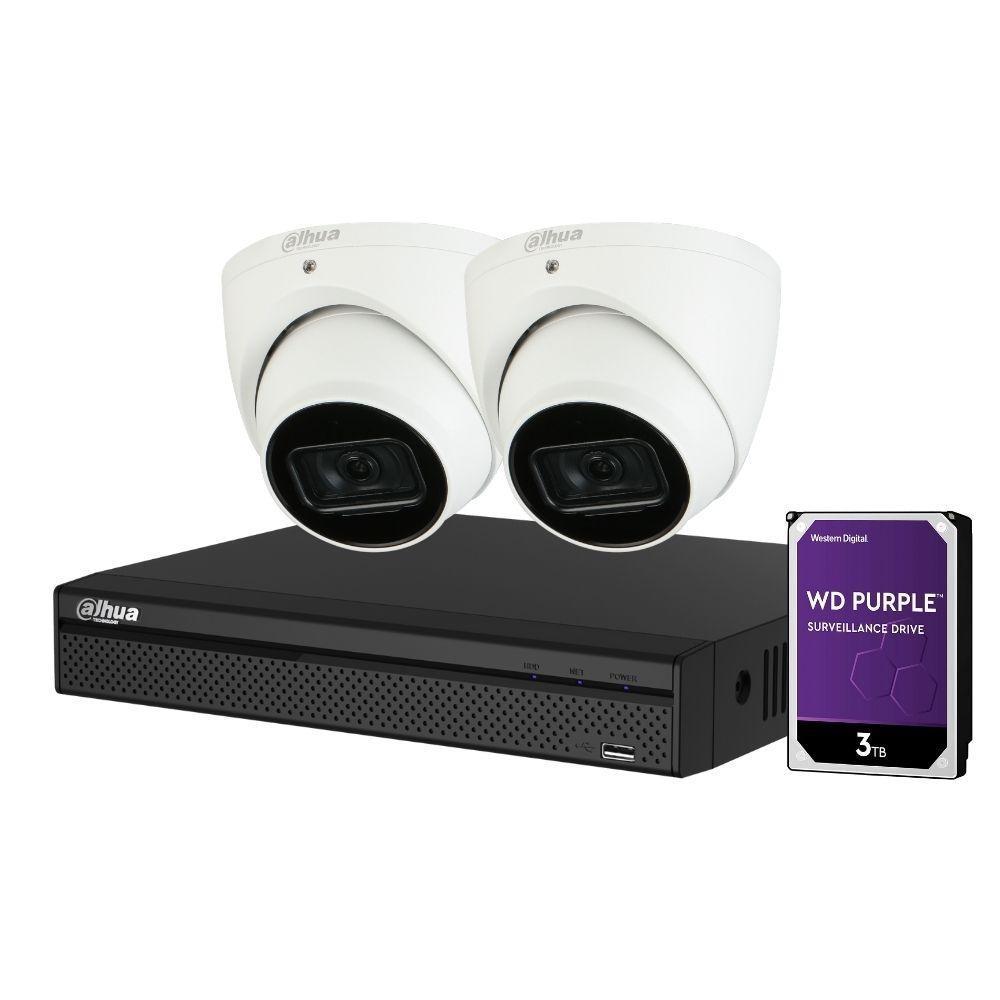

Dahua 4-Channel Security Kit: 8MP (Ultra HD) NVR, 2 x 8MP Fixed Turret

This Dahua Security Kit is built around a 4-Channel NVR (NVR4104HS-P-4KS2/L) that supports up to 8-megapixel (4K Ultra HD) resolution. It comes with turret cameras (DH-IPC-HDW2831EMP-AS-0280B-S2) that capture up to 8-megapixel resolution. The cameras are equipped with Dahua's Intelligent Video Surveillance (IVS) and Starlight technology which adds advanced features and increases visual clarity in low-light environments.

Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as tripwire and intrusion detection.

Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

Features

  • Quad-Core 4-Channel NVR supports up to 8 Megapixel (4K Ultra HD) resolution. Supports 2-Channel @ 8 Megapixel 4K (30fps). HDMI/VGA simultaneous video output.
  • New UI interface with an easier operation for Improved User Experience.
  • 2 x Turret Cameras that record up to 8 Megapixel resolution. Equipped with a 2.8mm Fixed lens. Supports up to 3840 × 2160 resolution. Built-in Mic.

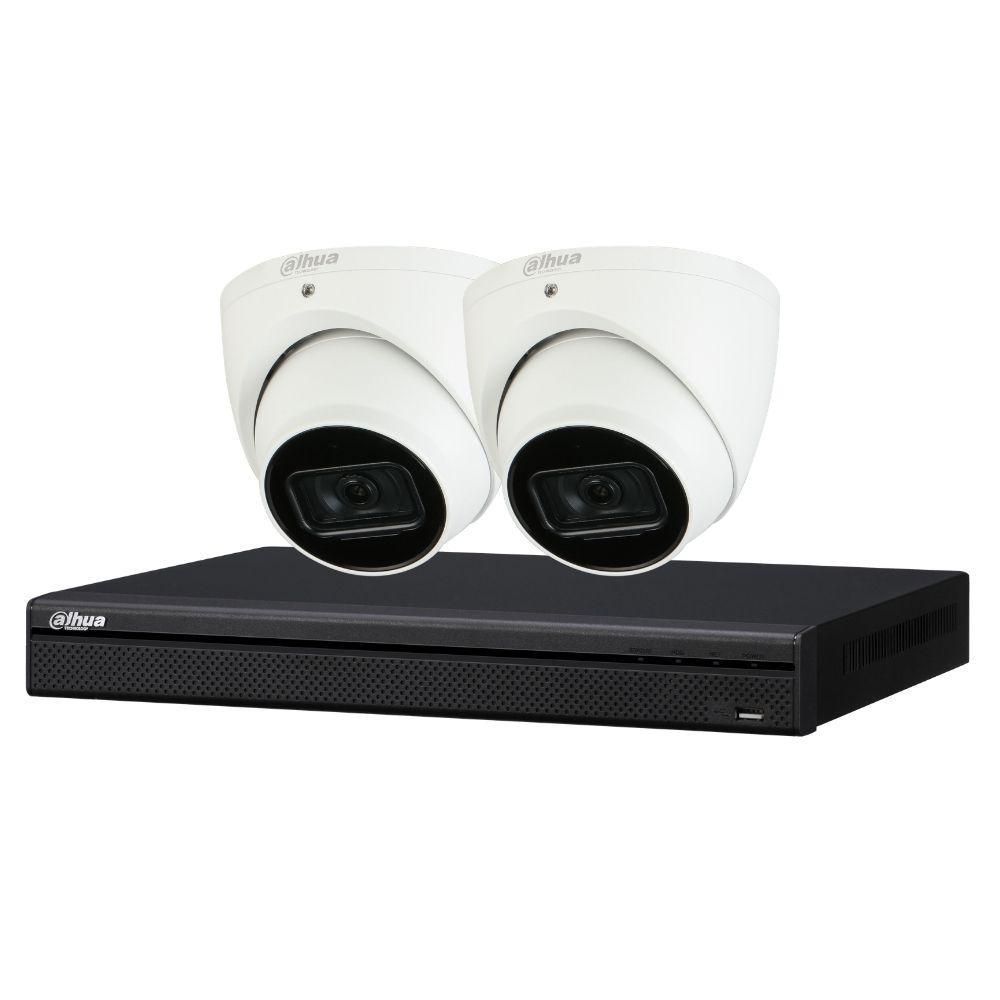

  • OPTIONAL UPGRADE: 8-Channel 8MP NVR (DHI-NVR4108HS-8P-4KS2/L) with 8 independent PoE (Plug and Play) ports or 16-Channel 8MP NVR (DHI-NVR4216-16P-4KS2/L) with 16 independent PoE ports.
  • Plug & Play setup with 4 independent PoE network interfaces. Max 80Mbps Incoming Bandwidth. Supports Smart Search and Audio Input/Output.
  • Features up to H.265+ high-efficiency video encoding and Dual-Streaming.
  • Supports Starlight technology, generates clear colour images in near-complete darkness.
  • 120 dB Wide Dynamic Range (WDR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
  • Supports Intelligent Video System (IVS). NVR recognises and records video that contains IVS data on all IP channels such as Tripwire and Intrusion violations.
  • Built-in Infrared LED, with a maximum range of 30 meters.
  • Supports Live camera viewing and Playback on smart devices with Free app (Called DMSS for iOS) and gDMSS for Android)
  • 1 x SATA port, with a maximum capacity of up to 6TB for a single HDD.
  • 3 Years Back-to-Base Manufacturer Warranty!

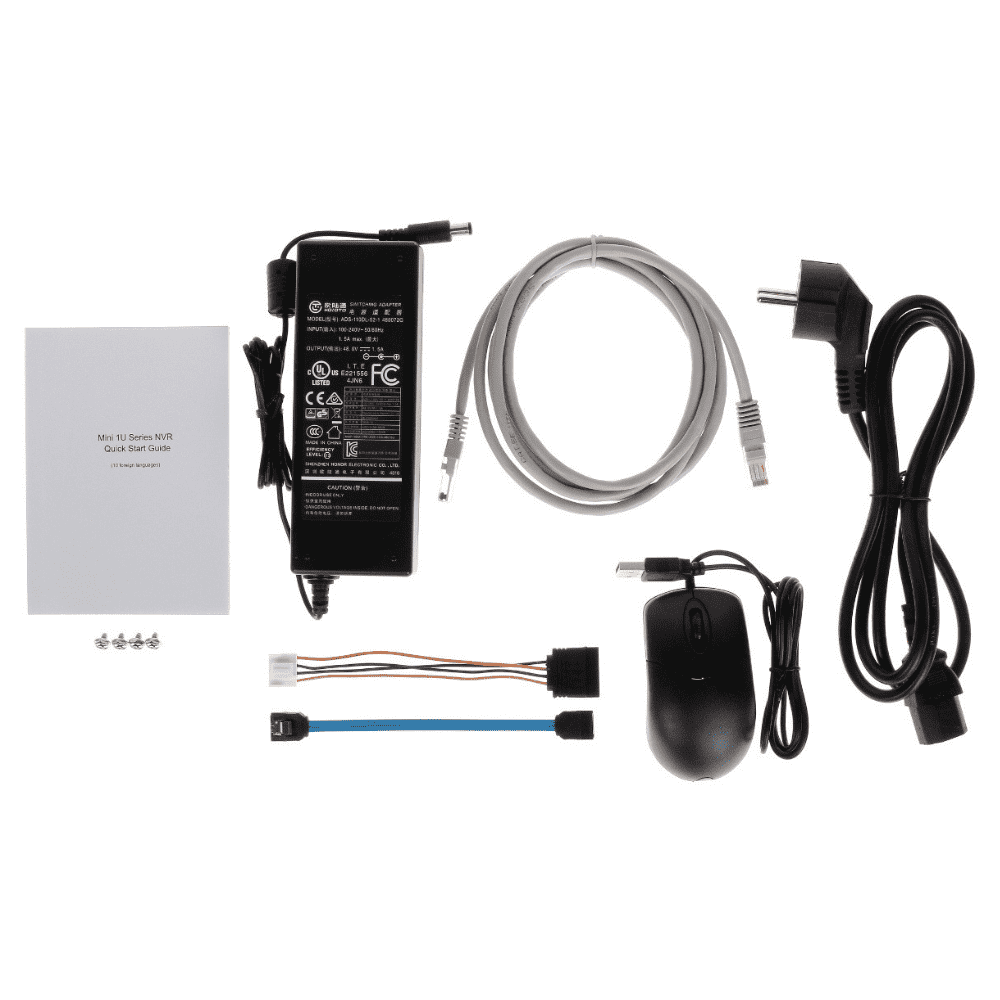

Kit Includes

Downloads

Tech Specs

Dahua IPC-HDW2831EMP-AS-S2 Security Camera

Camera
Image Sensor 1/2.7” 8Megapixel progressive CMOS
Effective Pixels 3840 (H) ×2160 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.009 Lux@F2.0
IR Distance 30 m (98.43 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
3.6 mm
Max. Aperture F2.0

F2.0
Field of View 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°

3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.0 m (3.3 ft)
3.6 mm: 1.9 m (6.2 ft)
Smart Event
General IVS Analytics Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)
Stream Capability 2 streams
Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–8192 Kbps

H.265: 12 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726; AAC
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20
Edge Storage Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser IE

Chrome

Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 7.2W
Environment
Operating Conditions –40°C to +55°C (–40°F to +131°F)/less than = 95% RH
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Protection IP67
Structure
Casing Metal
Dimensions 93.6 mm × F106 mm (3.7" × F4.2")
Net Weight 530 g (1.1 lb
Gross Weight 800 g (1.7 lb)

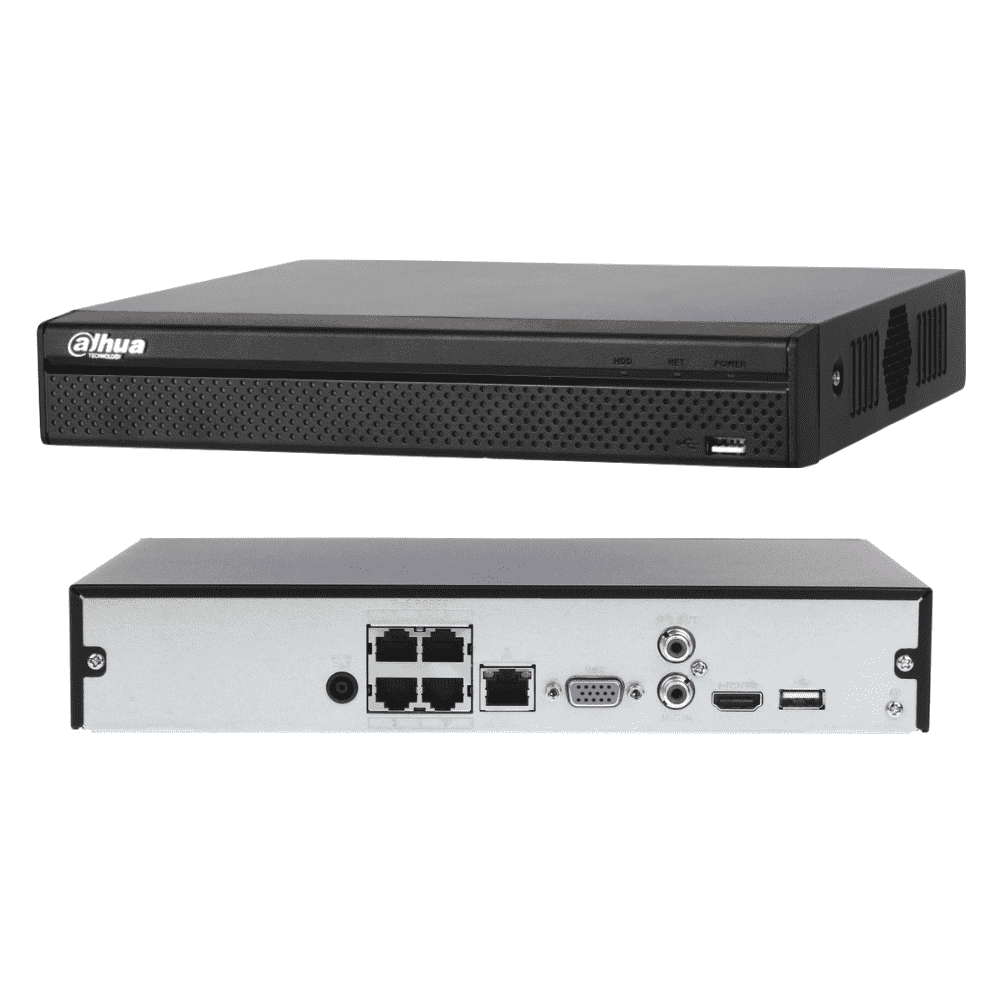

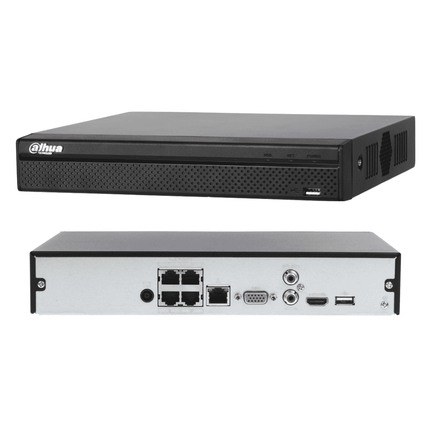

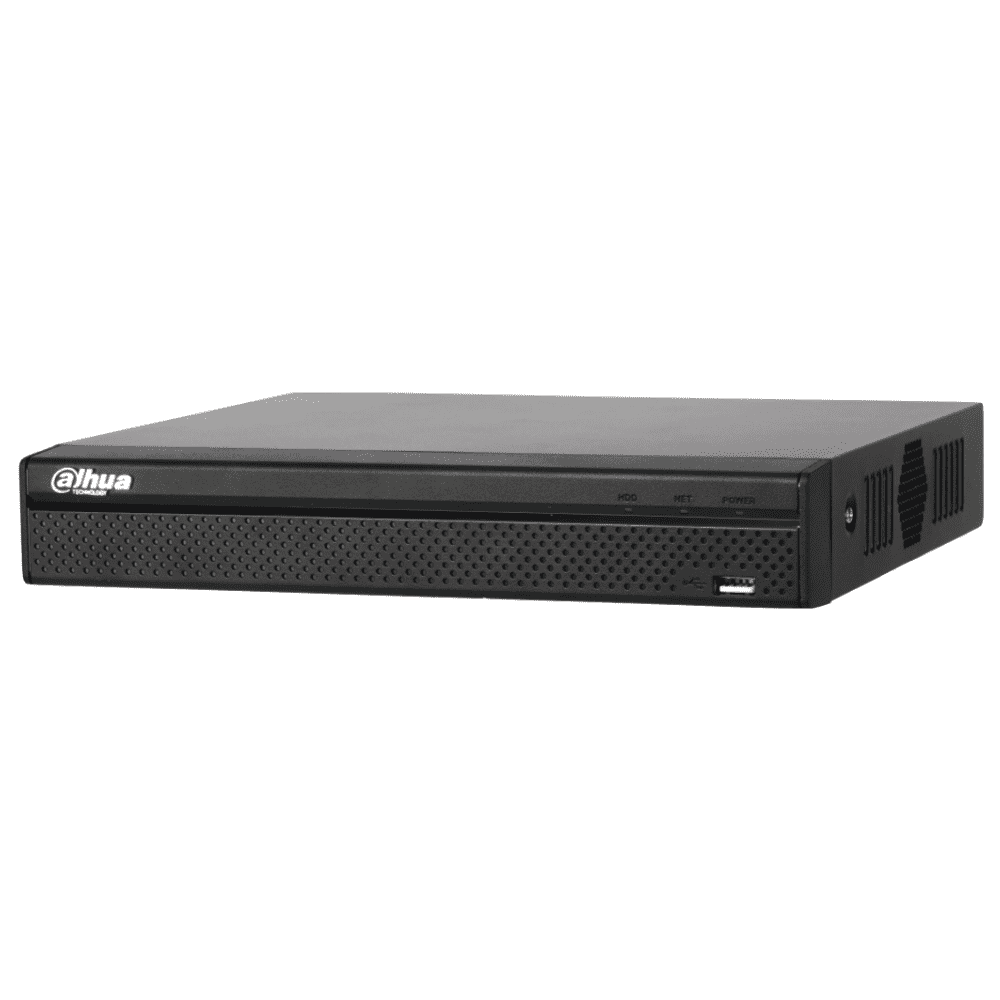

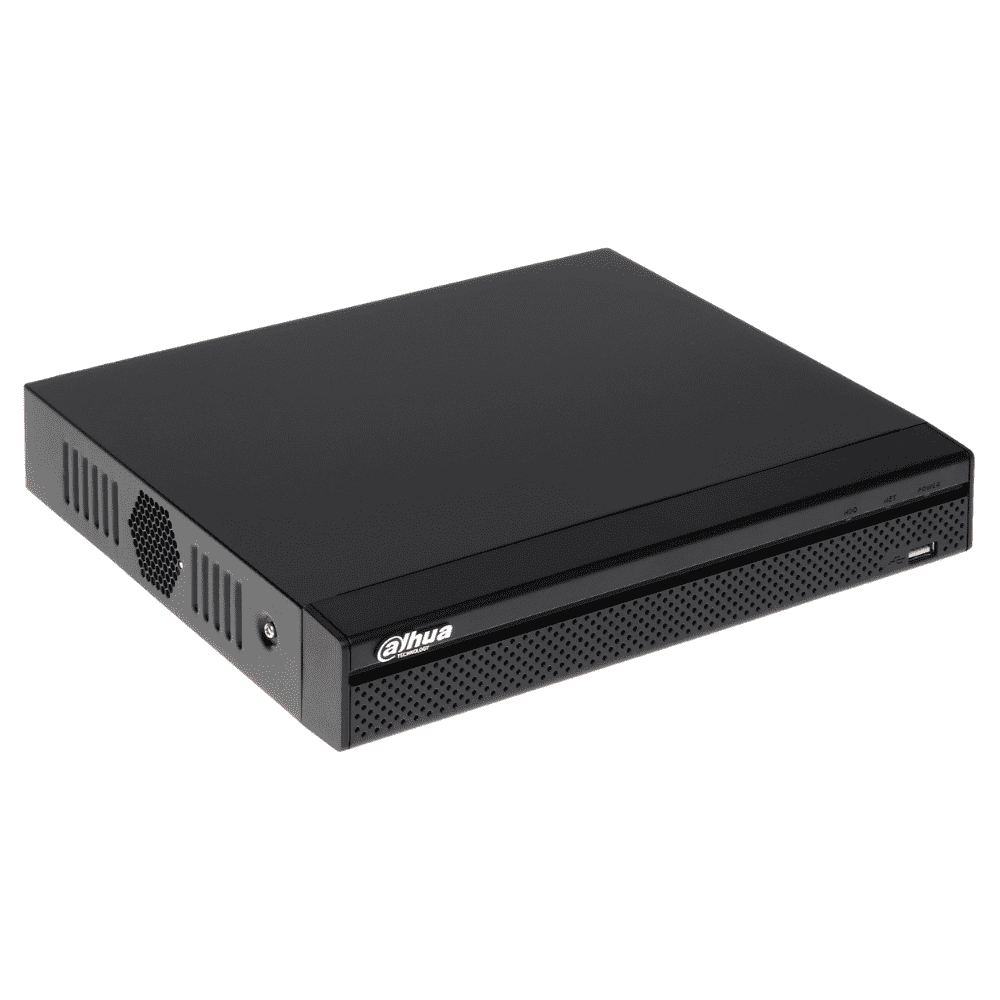

Dahua 4 Channel Network Video Recorder: 8MP (4K) Compact Lite Series - DHI-NVR4104HS-P-4KS2/L

System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Aduio and Video

IP Camera Input

4/8 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity

2ch@4K(30fps)/8ch@1080P(30fps)

Multi-screen Display

4CH: 1/4

8CH: 1/4/8/9

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate

80Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

Video Loss and Tampering

Alarm input

N/A

Alarm output

N/A

Playback and Backup

Playback

4CH: 1/4

8CH: 1/4/9

Search Mode

Time /Date, MD and Exact Search

(accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface

1 RJ-45 Port (10/100Mbps)

Ethernet Port

1 Independent 100Mbps Ethernet Port

PoE

4 Ports(IEEE802.3at/af)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

1 SATA III Port, Up to 6 TB capacity for each HDD

HDD Mode

Single

Auxiliary Interface

USB

2 ports (1 Rear USB2.0, 1 Front USB2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC48V/1.5A

Power Consumption

NVR: <7.5W (Without HDD)

PoE: Max 25.5W for a single port, 50W in total

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

Compact 1U, 260mm×224.9mm×47.6mm

(10.2" x 8.9" x 1.9")

Net Weight

0.8kg (1.76 lb) (without HDD)

Gross Weight

1.6kg(3.53 lb)(without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL60950-1
Videos

Day Sample

Night Sample

Dahua Starlight Technology

Read more

Dahua 4-Channel Security Kit: 8MP (Ultra HD) NVR, 2 x 8MP Fixed Turret, Lite + Starlight

Product form

SKU: DH-4CHL2X8MPT+0TB

    Out of stock

    $571.00 Incl. GST

      • 30-Day Returns Policy
      • Back to Base Australian Warranty & Tech Support
      • Australian Stock, No Grey Import Products
      📌 Download Datasheet - Dahua_IPC-HDW2831EMP-AS-S2_Security_Camera_Datasheet.pdf
      📌 Download Datasheet - DHI-NVR4104HS-P-4KS2L_datasheet_20191127.pdf
