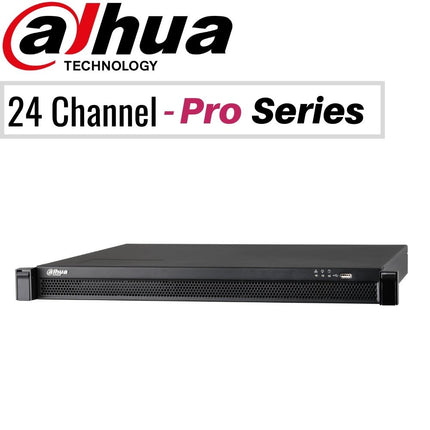

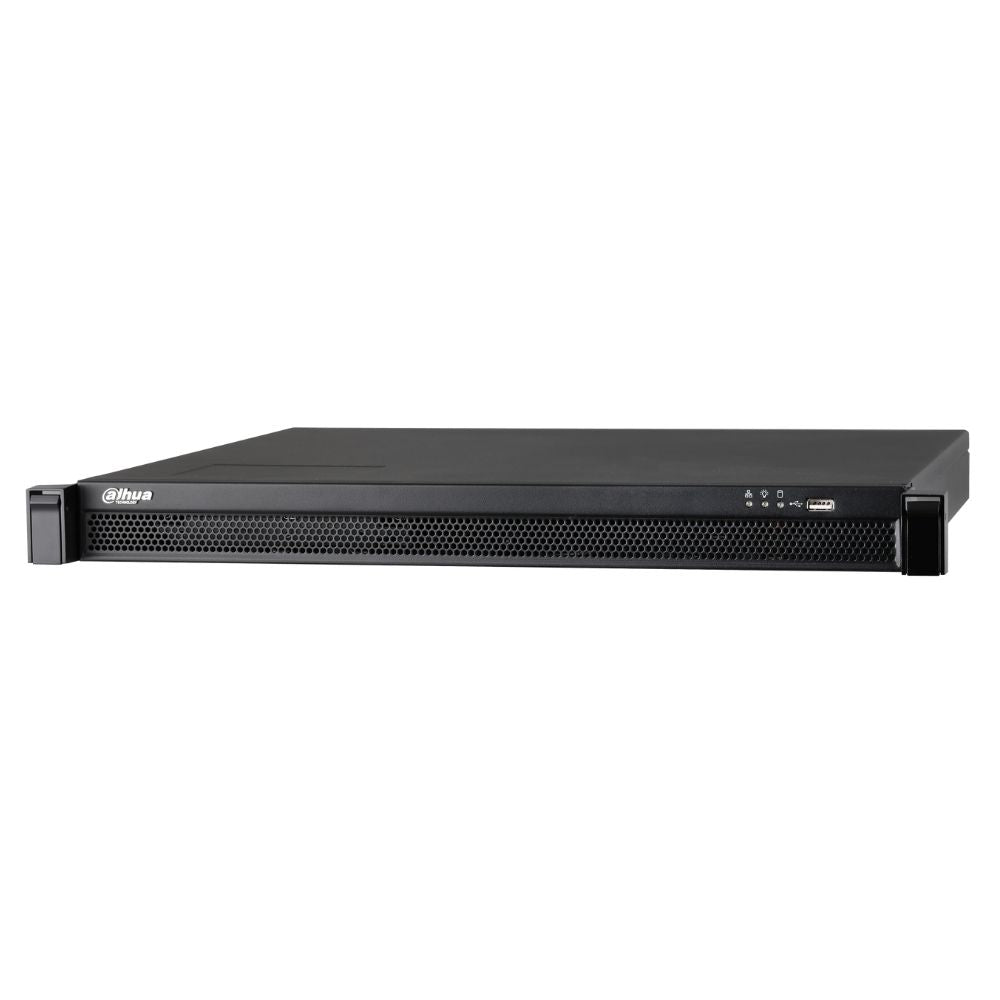

Dahua 24 Channel Network Video Recorder: 12MP(4K) Pro - DHI-NVR5224-24P-4KS2

Description

Description

The new Dahua DHI-NVR5224-24P-4KS2 Pro Series network video recorder is ideal for applications requiring high resolution recording and high performance. It has 24 dedicated PoE ports for connecting, streaming and powering 24 IP cameras. It supports a max 320Mbps Incoming Bandwidth and recording resolutions up to 12 megapixels.

As well as 4K image processing, the NVR supports edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.

Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications from public safety, water conservancy, transportation and city centres, to education and financial institutions or home solutions.

The NVR is compatible with numerous third-party devices, which makes it the perfect solution for surveillance systems that work independently of video management systems (VMS). It features an open architecture design that supports multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with 4K cameras.

The DHI-NVR5224-24P-4KS2 supports features such as Fisheye Dewarping, Heat Map, Automatic Number Plate Recognition, Intelligent Video System smart detections such as Tripwire and intrusion detection, face detection and people counting.

Features

  • 24-channel IP video access
  • Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
  • Max 320 Mbps incoming bandwidth
  • Up to 12MP resolution for live view and playback
  • 1-channel fisheye dewarping (AI by NVR)
  • AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
  • Support IPC UPnP, 24 PoE ports
  • 2 SATA III Ports, Up to 8 TB capacity for each HDD

Downloads
Tech Specs

System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

24 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI (up to 3840 x 2160), 1 VGA

Resolution

3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

Multi-screen Display

1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

Record Rate

320Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

4 Channel, Low Level Effective, Green Terminal Interface

Relay Output

2 Channel, NO/NC Programmable, Green Terminal Interface

Playback and Backup

Sync Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network

Interface

1 RJ-45 Ports (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Ports

PoE

24 ports (IEEE802.3af/at)

Network Function

HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.)

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Storage

Internal HDD

2 SATA III Ports, Up to 8 TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

SAS

N/A

Auxiliary Interface

USB

2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )

RS232

1 Port, for PC Communication and Keyboard

RS485

N/A

Electrical

Power Supply

Single, AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption

<16W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

1U, 440mm x 419.96mm x 43.65mm ;

(17.3" x 16.5" x 1.7")

Net Weight

4.5kg (9.9 lb) (without HDD)

Gross Weight

6.45kg (14.2 lb)

Installation

Rack-mounted

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2015

UL

UL 60950-1 and CAN/CSA C22.2 No.60950-1
Videos


3-Years Warranty

Dahua’s 3 year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, SECSOURCE will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please contact our support team at support@secsource.com.au or 1300 049 519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.

Please note, we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation with one of our team and they have given you an RMA number and return address.

Read more

Dahua 24 Channel Network Video Recorder: 12MP(4K) Pro - DHI-NVR5224-24P-4KS2

Product form

SKU: DHI-NVR5224-24P-4KS2

Out of stock

$1,228.00 $828.00 Incl. GST

    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
    📌 Download Datasheet - DHI-NVR5224-24P-4KS2_datasheet_20210113.pdf
