Dahua Security Camera: 2MP PTZ, 2.7~8.1mm - DH-SD1A203T-GN-S2

Description

Description

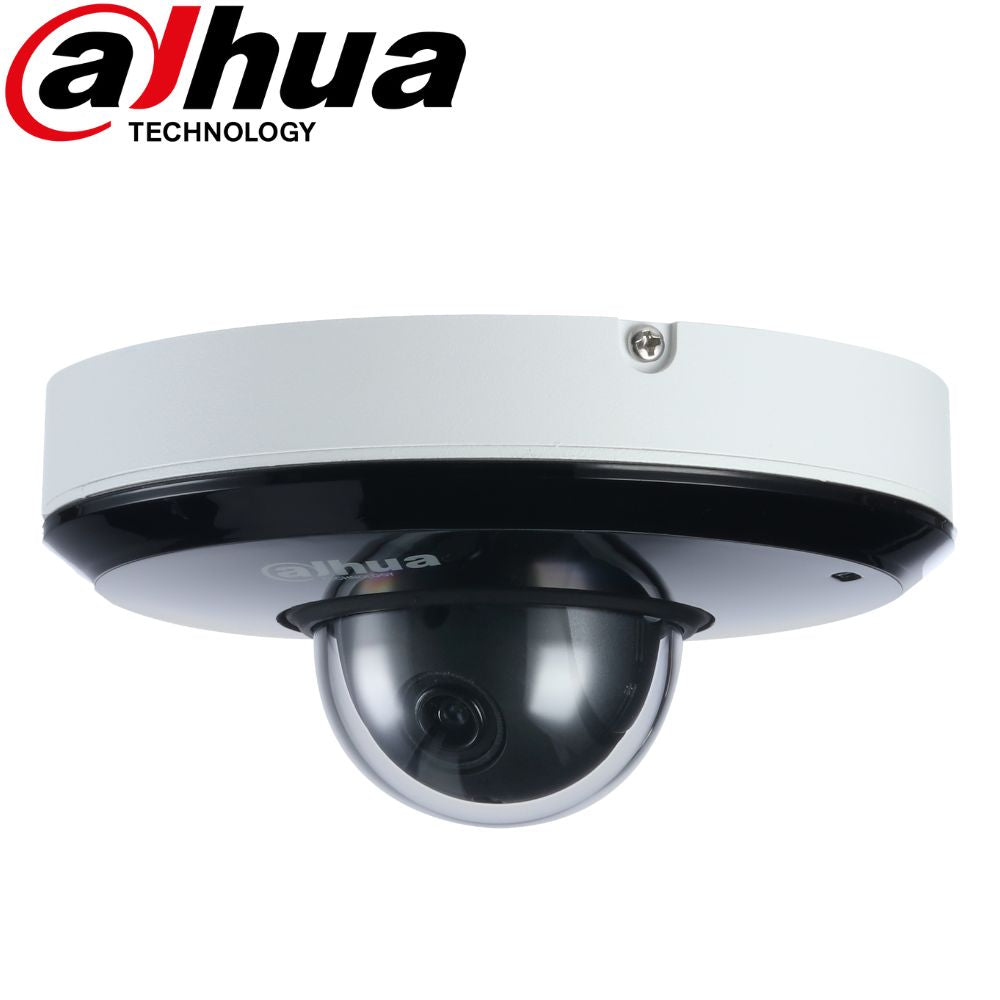

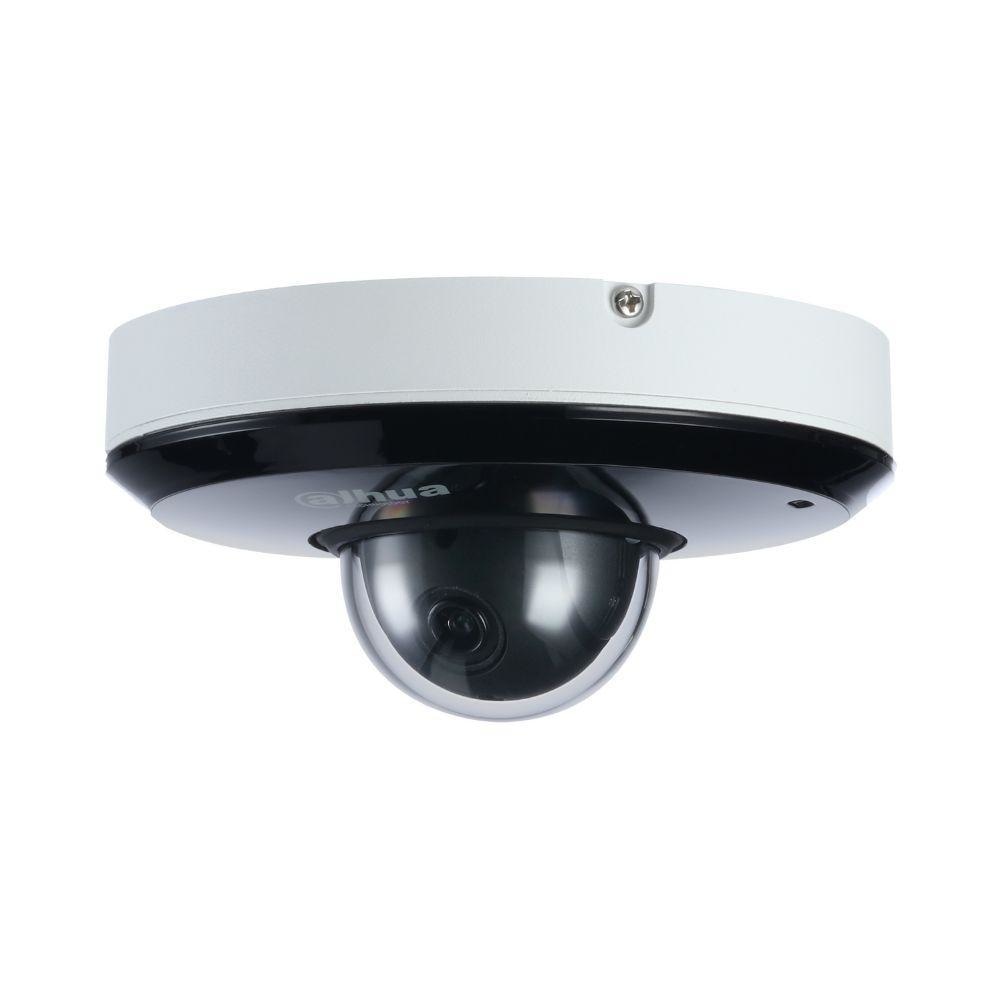

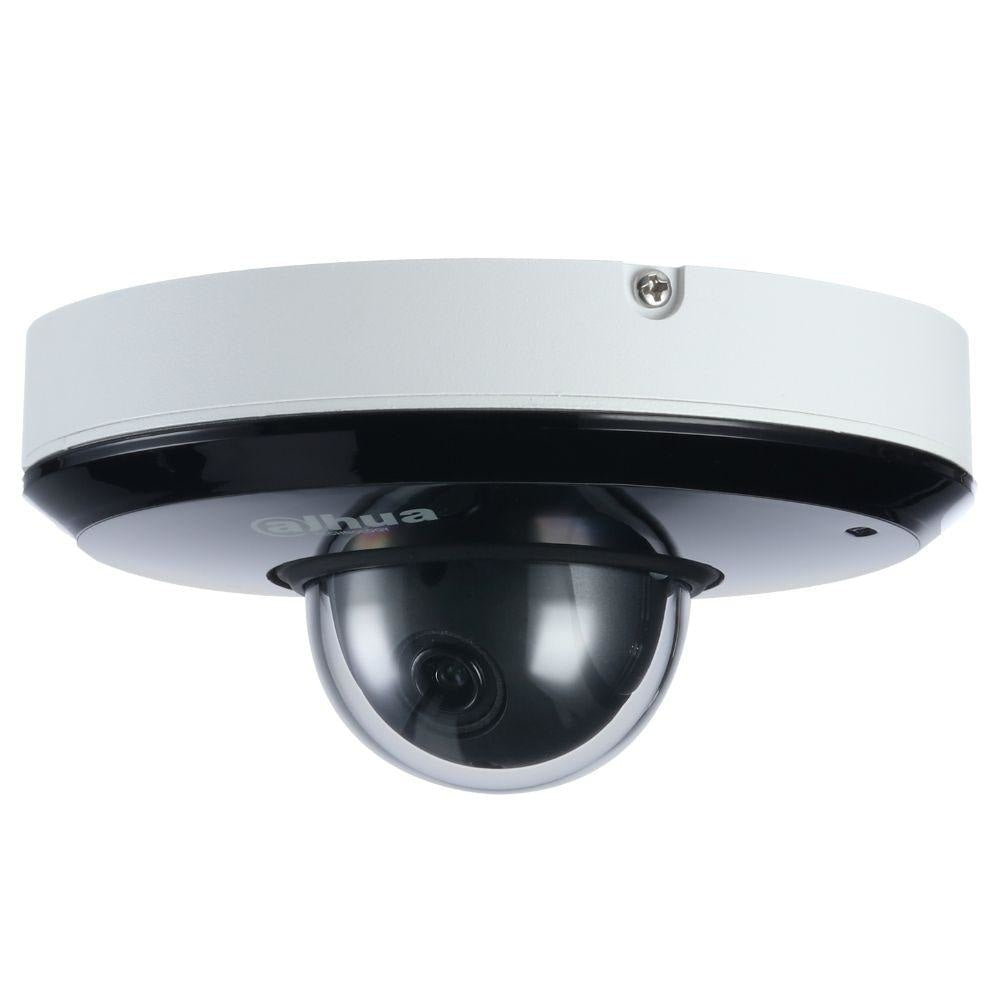

Dahua SD1A203T-GN Security Camera

Dahua's Pan-Tilt-Zoom cameras are designed to allow better monitoring through remotely controlling the direction of the device. PTZ cameras are often equipped with powerful zoom capabilities to improve in-demand visual clarity for points or targets of interest.

Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

Features

  • Records up to 2 Megapixel resolution.
  • Equipped with a 2.7~8.1mm Motorized lens.
  • Supports up to 1920 × 1080 resolution.
  • Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
  • Pan-Tilt-Zoom allows remotely controlling the direction and the zoom to provide in-demand coverage towards points of interest.
  • Capable of up to 16x Digital Zoom and up to 3x Optical Zoom.
  • STARVIS™ sensors offer a set of optical features to balance light throughout the scene, resulting in clear images in low-light environments.
  • Starlight technology generates clear images in near-complete darkness.
  • 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
  • Built-in Infrared LED, with a maximum range of 15 meters.
  • Supports Power-Over-Ethernet (PoE) installations.

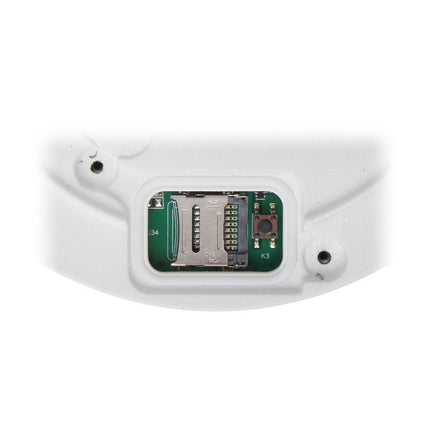

  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Resistant" Ingress Protection Rating (IP66).
  • 3 Years Back-to-Base Manufacturer Warranty!

Downloads
Tech Specs

Dahua SD1A203T-GN Security Camera


Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

512M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30, 000s

Minimum Illumination

Color: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8; 0Lux@F1.8 (IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 15m (49.2ft)

IR On/Off Control

Auto/Manual

IR LEDs

3

Lens

Focal Length

2.7mm~8.1mm

Max. Aperture

F1.8

Angle of View

H: 105.6° ~ 35.2°

Optical Zoom

3x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 5° ~ 90°

Manual Control Speed

Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s

Preset Speed

Pan: 80° /s; Tilt: 40° /s

Presets

300

PTZ Mode

8 Tour

Speed Setup

Human-oriented focal Length/speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/Tour if there is no command in the specified period

Protocol

DH-SD

Intelligence

Event Trigger

Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly

Auto Tracking

N/A

IVS

Tripwire, Intrusion, Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/720P(1 ~ 25/30fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR(120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

N/A

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711mu/G.726/AAC

Network

Ethernet

RJ-45 (10XBase-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB, ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Interface

Video Interface

N/A

RS485

N/A

Audio I/O

Mic in/Line in, Line out

Alarm I/O

N/A

Electrical

Power Supply

DC 12V/1.5A, PoE(802.3af)

Power Consumption

7.8W, 10.5W (IR on)

Environmental

Operating Conditions

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

IK08

Construction

Casing

Metal

Dimensions

?128(mm) x 63(mm)

Net Weight

0.49kg(1.08lb)

Gross Weight

0.73kg(1.6lb)
Videos

Read more

Dahua Security Camera: 2MP PTZ, 2.7~8.1mm - DH-SD1A203T-GN-S2

Product form

SKU: DH-SD1A203T-GN-S2

$398.00 $273.00 Incl. GST

    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
    📌 Download Datasheet - Dahua_SD1A203T-GN_Security_Camera_Datasheet.pdf
