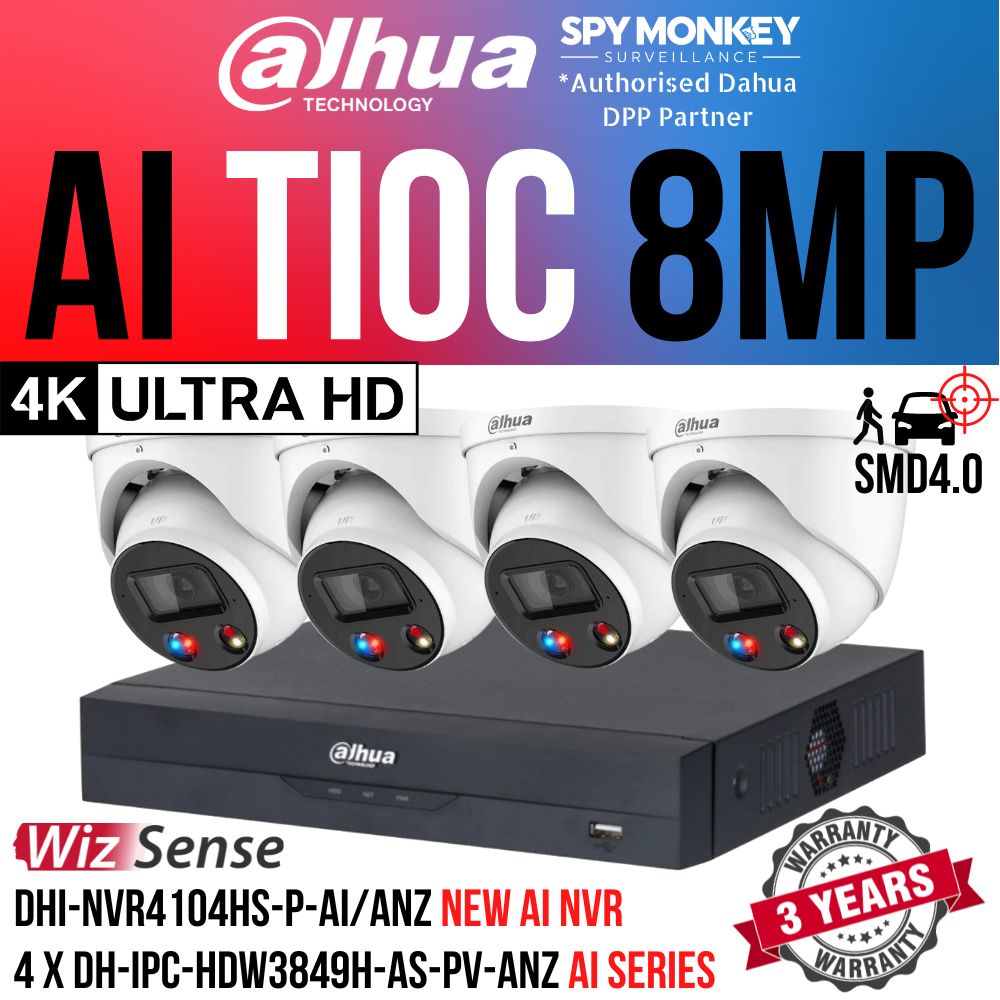

Dahua AI TiOC Security System: 4x 8MP TiOC 2.0 Turrets, 4CH 16MP WizSense NVR, SMD 4.0

Description

Description

This video highlights the features and functionalities of the TiOC 2.0 series. Device specifications may vary. Please refer to the datasheets for accurate specs or contact us for questions.

Dahua's Three-in-One Cameras 2.0 (TiOC 2.0) integrate multiple layers of protection into one single system. A TiOC surveillance system features WizSense AI, Active Deterrence, and 24/7 Full-Colour Nightvision as well as 2-way audio.

WizSense AI offers quick, quality, and reliable surveillance while minimising false alarms. AI Smart Motion Detect 4.0 will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognising changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR such as this kit.

Active Deterrence turns your system into responsive security that uses strobe lights and audio warnings or alarms to deter any would-be intruder.

24/7 Full-Colour intuitively maximises visual clarity in relevant situations by utilising LED lights to brighten the area in the event of a detected intrusion.

Click here to read our hands-on review of the Dahua TiOC 2.0 cameras.
Dahua TiOC Cameras - Adding Active Deterrence and AI To Your Surveillance Solution

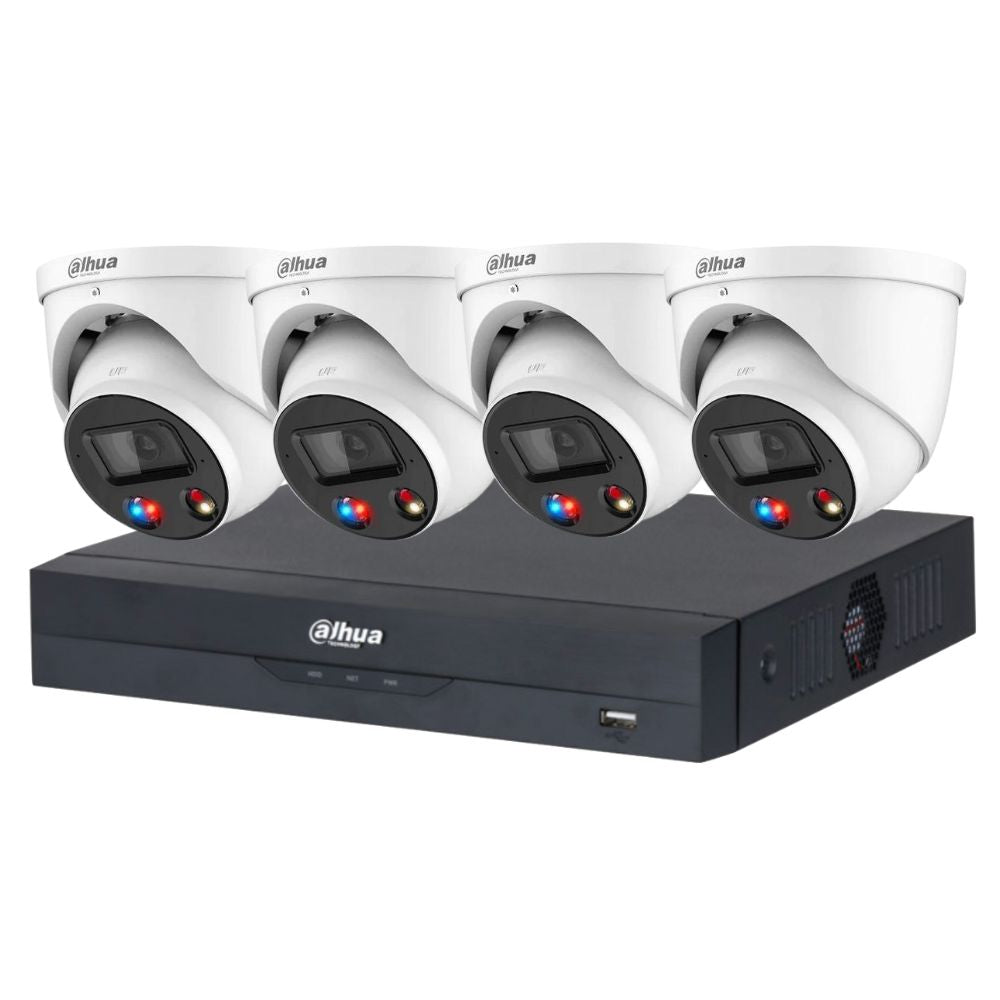

Kit Includes

*Only included if you select a variant with a specified capacity. It will come pre-installed in the NVR.
Cables and mounts are not included but are available for purchase.

Camera Features

  • 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition
    image.
  • Outputs max. 8 MP (3840 × 2160)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 30 m
    and warm light distance is 30 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable
    to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
    to various monitoring scenes.
  • Intelligent monitoring: Intrusion, and tripwire (the two functions support the
    classification and accurate detection of vehicles and humans).
  • Abnormality detection: Motion detection, privacy masking, scene
    changing, audio detection, no SD card, SD card full, SD card error,
    network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
    card; buit-in dual MICs; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • One press arming/disarming through alarm input.

Recorder Features

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  • The new AI Series supports increased bandwidth and improved decoding capability
  • Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
  • AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
  • AI by Camera: Face detection and recognition, perimeter protection; SMD Plus;
  • ANPR; people counting; stereo analysis; heat map.
  • Security baseline 2.3.
  • Up to 4-Channel SMD: Smart Motion Detection effectively eliminates false alerts, as it can filter humans and vehicles in motion detection.
  • Supports cameras with Quick Pick Technology: Quick Pick can quickly detect targets by attributes such as the colour of clothing and vehicles, and accurately locate targets in search, facilitating enhanced search efficiency and retrieval.
  • Supports high-precision face recognition by facial attributes in image search and face attribute search.
  • Smart Illumination based on conditions, compatible with dual illuminator cameras such as TiOC2.0
  • Supports EPTZ (with compatible cameras): Zoom in and track multiple humans and vehicles (up to 3) when an alarm is triggered, similar to PTZ linkage. Tracks target until it disappears.
  • Enhanced Mode: Extends POE transmission up to 200m.
  • Supports One-Click Disarming for Active deterrence and push notifications.

AI Coding - Smart H.265+

Focusing on humans and vehicles while encoding, AI coding ensures target image quality while saving 50% bandwidth and storage costs compared with standard H.265. AI Coding function is enabled by default in the newest firmware version.

These calculations are generated assuming all cameras included in the kit are recording 24/7 and are utilizing Smart H.265 encoding on a medium activity environment. Low scene activity doubles the estimated capacity while high scene activity reduces it by half (similar to the storage consumption of standard H.265 devices).

Estimated Hard Drive Capacity
Smart H.265+ Encoding (Medium Scene Activity)
1 Terabyte Hard Drive 1 Week, 3 Days, 4 Hours
2 Terabyte Hard Drive 2 Weeks, 6 Days, 8 Hours
3 Terabyte Hard Drive 4 Weeks, 2 Days, 12 Hours
4 Terabyte Hard Drive 5 Weeks, 5 Days, 16 Hours
6 Terabyte Hard Drive 8 Weeks, 5 Days, 1 Hour
8 Terabyte Hard Drive 11 Weeks, 4 Days, 9 Hours
10 Terabyte Hard Drive 14 Weeks, 3 Days, 18 Hours
12 Terabyte Hard Drive 17 Weeks, 3 Days, 2 Hours
14 Terabyte Hard Drive 20 Weeks, 2 Days, 11 Hours

Datasheets

Camera

Recorder

Tech Specs

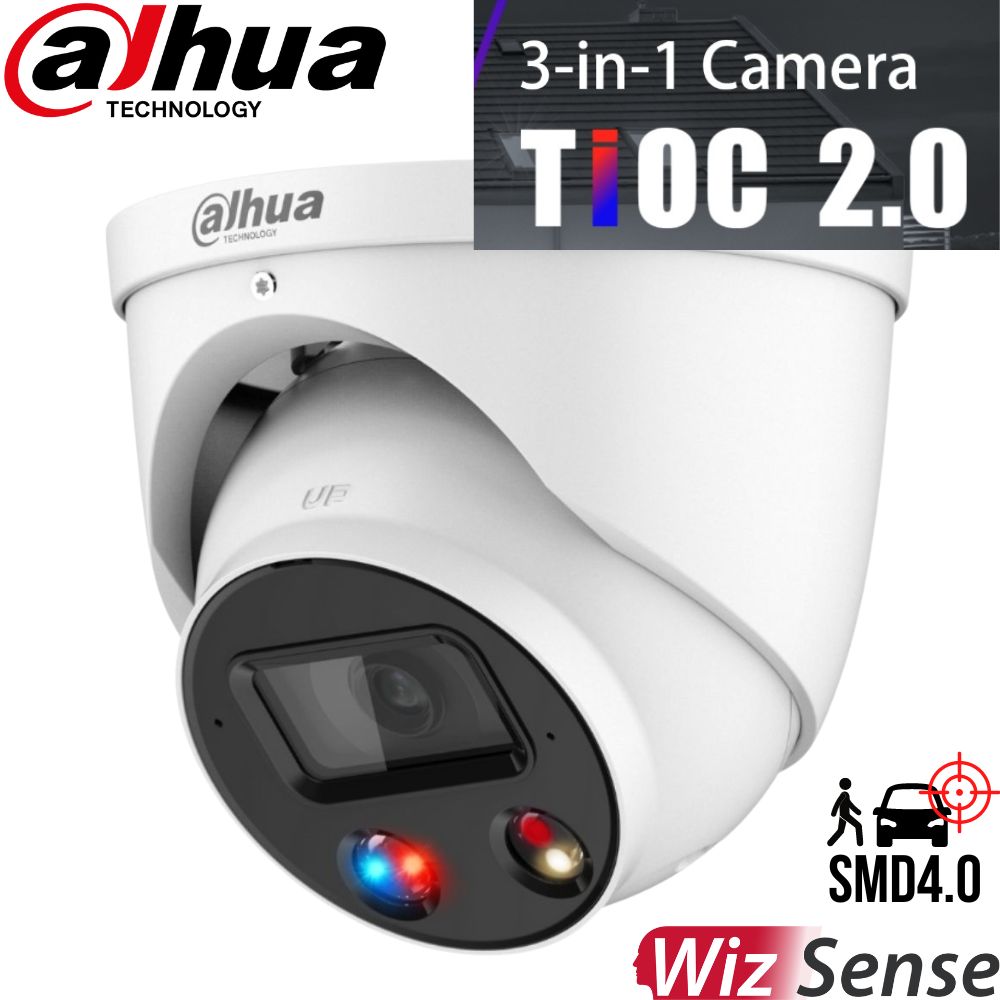

Dahua Security Camera: 8MP TiOC 2.0 Turret - DH-IPC-HDW3849H-AS-PV-ANZ
2.8mm Lens | Active Deterrence | WizSense AI | 24/7 Full-Colour | SMD 4.0 | SSA | Starlight


Camera
Image Sensor 1/2.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 85°; V: 45°; D: 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 91.0 m (298.56 ft) 36.4 m ( 119.42 ft) 18.2 m (59.71 ft) 9.1 m (29.86 ft)
3.6 mm 107.6 m (353.02 ft) 43.0 m ( 141.08 ft) 21.5 m (70.54 ft) 10.8 m (35.43 ft)
Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 4.0 Less false alarm, longer detection distance
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32kbps–8192 kbps H.265:12kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 5.2 W (12 VDC); 5.5 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 9.2W (DC12 V) 10.2 W (POE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.37" × Φ4.80")
Net Weight 745 g (1.64 lb)
Gross Weight 915 g (2.02 lb)

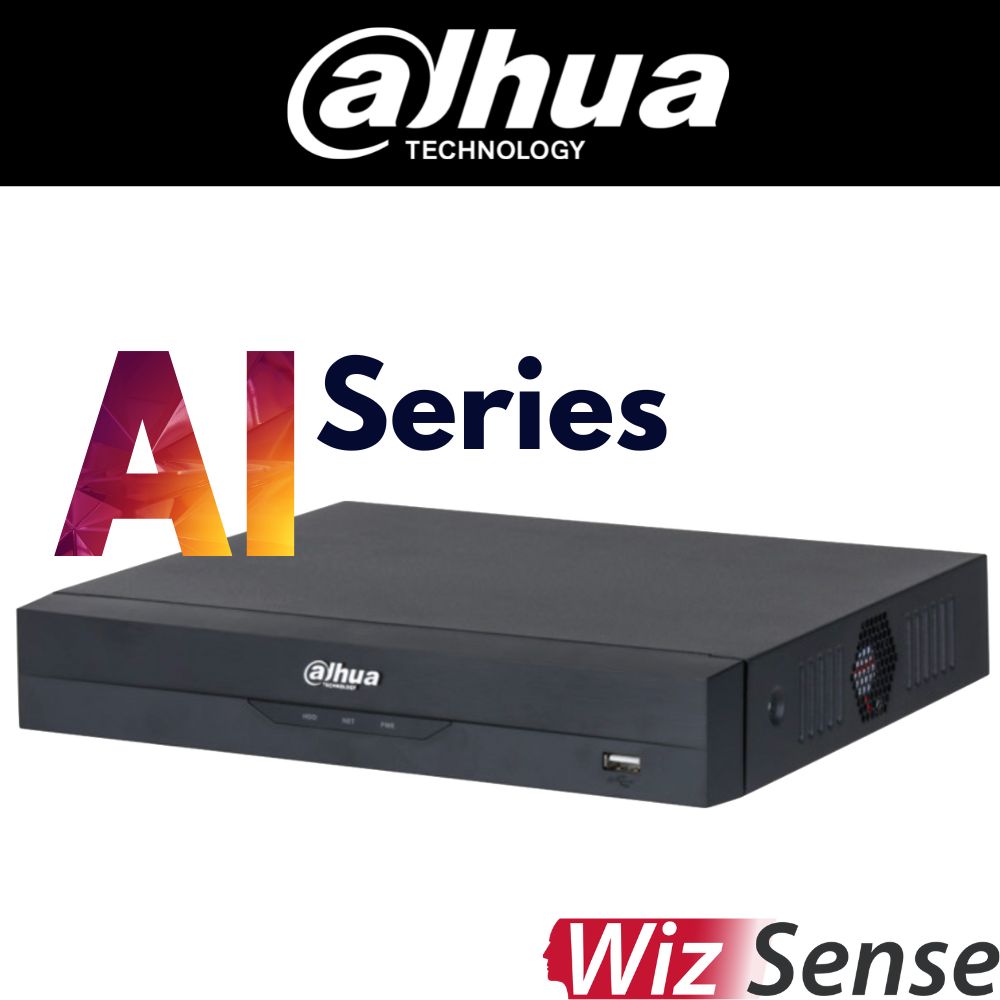

Dahua 4-Channel WizSense NVR: 16MP - DHI-NVR4104HS-P-AI/ANZ
Face Detection | Perimeter Protection | SMD 4.0 | Smart H.265+ Encoding
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
AI
AI by Recorder Face detection, face recognition, perimeter protection,
and SMD Plus;
AI by Camera Face detection; face recognition; perimeter protection;
SMD Plus; ANPR; people counting; stereo analysis; heat
map
Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)
2 channels, 10 IVS rules for each channel
Perimeter Performance of
AI by Camera (Number of
Channels)
4 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask;
beard
Face Detection
Performance of AI by
Recorder (Number of
Channels)
1 channel (up to 12 face images/s each channel)
Face Detection
Performance of AI by
Camera (Number of
Channels)
4 channels
Face Recognition
Face Database Capacity Up to 10 face databases with 200,00 images, with a
total capacity of 2.5 G. Name, gender, birthday, address,
credential type,
credential No., countries & regions and state can be
added to each face image.
Face Recognition
Performance of AI by
Recorder (Number of
Channels)
4-channel FD (by camera) + FR (by recorder),image
stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video
stream: 12 face images/s
Face Recognition
Performance of AI by
Camera (Number of
Channels)
4 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor
vehicle , reducing false alarms caused by leaves, rain and
lighting condition change
SMD Plus by Camera 4 channels
Vehicle License Plate Comparison
ANPR by Camera (Number
of Channels)
4 channels
License Plate Database
Capacity
1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist
Audio and Video
Access Channel 4 channels
Network Bandwidth 80 Mbps incoming, 80 Mbps recording and 80 Mbps
outgoin
Resolution 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p;
960p; 720p; D1; CIF
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
MP@30 fps; 4-channel 8 MP@30 fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12
MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5
MP@30 fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for
VGA and HDMI is configurable.
Multi-screen Display 1st Screen: 1/4
2nd Screen: 1/4
Third-party Camera
Access
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF,
Canon
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;
FTP; Alarm Server; IP Search (Support Dahua IP camera;
DVR; NVS; etc.); P2P; auto register
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
Recording Playback
Multi-channel Playback Up to 4 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection; privacy masking; video loss; scene
changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage error; disk full; IP
conflict; MAC conflict; login locked; and cybersecurity
exception
Intelligent Alarm Face detection; face recognition; perimeter protection;
SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio;
buzzer; log; preset; email
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
HDD Interface 1 SATA port, up to 16 TB.The maximum HDD capacity
varies with environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
PoE Por 4 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 53 VDC, 1.226 A
Power Consumption Total output of NVR is <10 W(without HDD) Total output
power of PoE is 36W,the maximum output power of
asingle port is 25.5W
Net Weight 0.86 kg (1.90 lb)
Gross Weight 1.88 kg (4.14 lb)
Product Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87")
(W × L × H)
Packaging Dimensions 333 mm × 89 mm × 315 mm (13.11" × 3.50" × 12.40")
(W × L × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH)
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Videos

3-Years Warranty

The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

  • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
  • We will not cover inbound shipping of the return to us.
  • We will cover outbound shipping for any replacements to the customer.
  • We will need the serial number of the product and your order number.
  • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
  • Dahua AI TiOC Security System: 4x 8MP TiOC 2.0 Turrets, 4CH 16MP WizSense NVR, SMD 4.0

    Product form

    SKU: DH-TIOC2_8MPT-X04-04CH-00TB

    $1,826.00 $1,560.00 Incl. GST

      • Guaranteed secure & safe checkout.

        paypal
      • FREE Express Courier Shipping for all orders over $100
      • 30-Day Returns Policy
      • Back to Base Australian Warranty & Tech Support
      • Australian Stock, No Grey Import Products

      Description

      Description

      This video highlights the features and functionalities of the TiOC 2.0 series. Device specifications may vary. Please refer to the datasheets for accurate specs or contact us for questions.

      Dahua's Three-in-One Cameras 2.0 (TiOC 2.0) integrate multiple layers of protection into one single system. A TiOC surveillance system features WizSense AI, Active Deterrence, and 24/7 Full-Colour Nightvision as well as 2-way audio.

      WizSense AI offers quick, quality, and reliable surveillance while minimising false alarms. AI Smart Motion Detect 4.0 will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognising changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR such as this kit.

      Active Deterrence turns your system into responsive security that uses strobe lights and audio warnings or alarms to deter any would-be intruder.

      24/7 Full-Colour intuitively maximises visual clarity in relevant situations by utilising LED lights to brighten the area in the event of a detected intrusion.

      Click here to read our hands-on review of the Dahua TiOC 2.0 cameras.
      Dahua TiOC Cameras - Adding Active Deterrence and AI To Your Surveillance Solution

      Kit Includes

      *Only included if you select a variant with a specified capacity. It will come pre-installed in the NVR.
      Cables and mounts are not included but are available for purchase.

      Camera Features

      • 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition
        image.
      • Outputs max. 8 MP (3840 × 2160)@25/30 fps.
      • H.265 codec, high compression rate, ultra-low bit rate.
      • Built-in warm light and IR LED; the max. IR illumination distance is 30 m
        and warm light distance is 30 m.
      • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable
        to various bandwidth and storage environments.
      • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
        to various monitoring scenes.
      • Intelligent monitoring: Intrusion, and tripwire (the two functions support the
        classification and accurate detection of vehicles and humans).
      • Abnormality detection: Motion detection, privacy masking, scene
        changing, audio detection, no SD card, SD card full, SD card error,
        network disconnection, IP conflict, illegal access, and voltage detection.
      • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
        card; buit-in dual MICs; 1-ch speaker; support two-way talk.
      • 12 VDC/PoE power supply.
      • IP67 protection.
      • Sound and light alarm (red and blue lights).
      • SMD 4.0.
      • One press arming/disarming through alarm input.

      Recorder Features

      • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
      • The new AI Series supports increased bandwidth and improved decoding capability
      • Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
      • AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
      • AI by Camera: Face detection and recognition, perimeter protection; SMD Plus;
      • ANPR; people counting; stereo analysis; heat map.
      • Security baseline 2.3.
      • Up to 4-Channel SMD: Smart Motion Detection effectively eliminates false alerts, as it can filter humans and vehicles in motion detection.
      • Supports cameras with Quick Pick Technology: Quick Pick can quickly detect targets by attributes such as the colour of clothing and vehicles, and accurately locate targets in search, facilitating enhanced search efficiency and retrieval.
      • Supports high-precision face recognition by facial attributes in image search and face attribute search.
      • Smart Illumination based on conditions, compatible with dual illuminator cameras such as TiOC2.0
      • Supports EPTZ (with compatible cameras): Zoom in and track multiple humans and vehicles (up to 3) when an alarm is triggered, similar to PTZ linkage. Tracks target until it disappears.
      • Enhanced Mode: Extends POE transmission up to 200m.
      • Supports One-Click Disarming for Active deterrence and push notifications.

      AI Coding - Smart H.265+

      Focusing on humans and vehicles while encoding, AI coding ensures target image quality while saving 50% bandwidth and storage costs compared with standard H.265. AI Coding function is enabled by default in the newest firmware version.

      These calculations are generated assuming all cameras included in the kit are recording 24/7 and are utilizing Smart H.265 encoding on a medium activity environment. Low scene activity doubles the estimated capacity while high scene activity reduces it by half (similar to the storage consumption of standard H.265 devices).

      Estimated Hard Drive Capacity
      Smart H.265+ Encoding (Medium Scene Activity)
      1 Terabyte Hard Drive 1 Week, 3 Days, 4 Hours
      2 Terabyte Hard Drive 2 Weeks, 6 Days, 8 Hours
      3 Terabyte Hard Drive 4 Weeks, 2 Days, 12 Hours
      4 Terabyte Hard Drive 5 Weeks, 5 Days, 16 Hours
      6 Terabyte Hard Drive 8 Weeks, 5 Days, 1 Hour
      8 Terabyte Hard Drive 11 Weeks, 4 Days, 9 Hours
      10 Terabyte Hard Drive 14 Weeks, 3 Days, 18 Hours
      12 Terabyte Hard Drive 17 Weeks, 3 Days, 2 Hours
      14 Terabyte Hard Drive 20 Weeks, 2 Days, 11 Hours

      Datasheets

      Camera

      Recorder

      Tech Specs

      Dahua Security Camera: 8MP TiOC 2.0 Turret - DH-IPC-HDW3849H-AS-PV-ANZ
      2.8mm Lens | Active Deterrence | WizSense AI | 24/7 Full-Colour | SMD 4.0 | SSA | Starlight


      Camera
      Image Sensor 1/2.8" CMOS
      Max. Resolution 3840 (H) × 2160 (V)
      ROM 128 MB
      RAM 512 MB
      Scanning System Progressive
      Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
      Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
      0.0004 lux@F1.0 (B/W, 30 IRE)
      0 lux (illuminator on)
      S/N Ratio ﹥ 56 dB
      Illumination Distance 30 m (98.43 ft) (IR)
      30 m (98.43 ft) (warm light)
      Illuminator On/Off Control Auto; manual
      Illuminator Number 1 (IR LED)
      1 (warm light)
      Pan/Tilt/Rotation Range Pan: 0°–360°
      Tilt: 0°–78°
      Rotation: 0°–360°
      Lens
      Lens Type Fixed-focal
      Mount Type M12
      Focal Length 2.8 mm; 3.6 mm
      Field of View 2.8 mm: H: 106°; V: 55°; D: 125°
      3.6 mm: H: 85°; V: 45°; D: 100°
      Iris Type Fixed
      Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
      3.6 mm: 2.8 m (6.23 ft)
      DORI Distance Lens Detect Observe Recognize Identify
      2.8 mm 91.0 m (298.56 ft) 36.4 m ( 119.42 ft) 18.2 m (59.71 ft) 9.1 m (29.86 ft)
      3.6 mm 107.6 m (353.02 ft) 43.0 m ( 141.08 ft) 21.5 m (70.54 ft) 10.8 m (35.43 ft)
      Intelligent
      IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
      SMD 4.0 Less false alarm, longer detection distance
      Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
      Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
      AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
      Video
      Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
      Smart Codec Smart H.265+; Smart H.264+
      AI Coding AI H.265; AI H.264
      Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
      Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
      Third stream: 1920 × 1080@(1 fps–30 fps)
      *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
      Stream Capability 3 streams
      Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
      Bit Rate Control CBR/VBR
      Video Bit Rate H.264: 32kbps–8192 kbps H.265:12kbps–8192 kbps
      Day/Night Auto (ICR)/Color/B/W
      BLC Yes
      HLC Yes
      WDR 120 dB
      Scene Self-adaptation Yes
      White Balance Auto; natural; street lamp; outdoor; manual; regional custom
      Gain Control Auto; manual
      Noise Reduction 3D NR
      Motion Detection OFF/ON (4 areas)
      Region of Interest (RoI) Yes (4 areas)
      Smart Illumination Yes
      Defog Yes
      Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
      Mirror Yes
      Privacy Masking 8 areas
      Audio
      Built-in MIC Yes
      Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
      Alarm
      Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
      Network
      Network RJ-45 (10/100 Base-T)
      SDK and API Yes
      Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
      Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
      Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP
      User/Host 20 (Total bandwidth: 72 M)
      Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
      Browser IE: IE8/9/11
      Chrome
      Firefox
      Management Software Smart PSS; DSS; DMSS
      Mobile Phone iOS; Android
      Certification
      Certification CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
      Port
      Audio Input 1 channel (RCA port)
      Audio Output 1 channel (RCA port)
      Alarm Input 1 channel in: 5 mA 3V–5 VDC
      Alarm Output 1 channel out: 300 mA 12 VDC
      Power
      Power Supply 12 VDC/PoE (802.3af)
      Power Consumption Basic: 5.2 W (12 VDC); 5.5 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 9.2W (DC12 V) 10.2 W (POE)
      Environment
      Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
      Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
      Protection Grade IP67
      Structure
      Casing Metal
      Dimensions 110.9 mm × Φ122.0 mm (4.37" × Φ4.80")
      Net Weight 745 g (1.64 lb)
      Gross Weight 915 g (2.02 lb)

      Dahua 4-Channel WizSense NVR: 16MP - DHI-NVR4104HS-P-AI/ANZ
      Face Detection | Perimeter Protection | SMD 4.0 | Smart H.265+ Encoding
      System
      Main Processor Industrial-grade processor
      Operating System Embedded Linux
      Operating Interface Web; Local GUI
      AI
      AI by Recorder Face detection, face recognition, perimeter protection,
      and SMD Plus;
      AI by Camera Face detection; face recognition; perimeter protection;
      SMD Plus; ANPR; people counting; stereo analysis; heat
      map
      Perimeter Protection
      Perimeter Performance AI
      by Recorder (Number of
      Channels)
      2 channels, 10 IVS rules for each channel
      Perimeter Performance of
      AI by Camera (Number of
      Channels)
      4 channels
      Face Detection
      Face Attributes Gender; age group; glasses; expressions; face mask;
      beard
      Face Detection
      Performance of AI by
      Recorder (Number of
      Channels)
      1 channel (up to 12 face images/s each channel)
      Face Detection
      Performance of AI by
      Camera (Number of
      Channels)
      4 channels
      Face Recognition
      Face Database Capacity Up to 10 face databases with 200,00 images, with a
      total capacity of 2.5 G. Name, gender, birthday, address,
      credential type,
      credential No., countries & regions and state can be
      added to each face image.
      Face Recognition
      Performance of AI by
      Recorder (Number of
      Channels)
      4-channel FD (by camera) + FR (by recorder),image
      stream: 12 face images/s
      1-channel FD (by recorder) + FR (by recorder), video
      stream: 12 face images/s
      Face Recognition
      Performance of AI by
      Camera (Number of
      Channels)
      4 channels
      SMD Plus
      SMD Plus by Recorder 4 channels: Secondary filtering for human and motor
      vehicle , reducing false alarms caused by leaves, rain and
      lighting condition change
      SMD Plus by Camera 4 channels
      Vehicle License Plate Comparison
      ANPR by Camera (Number
      of Channels)
      4 channels
      License Plate Database
      Capacity
      1. Create up to 20,000 plate numbers.
      2. Blocklist and allowlist
      Audio and Video
      Access Channel 4 channels
      Network Bandwidth 80 Mbps incoming, 80 Mbps recording and 80 Mbps
      outgoin
      Resolution 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p;
      960p; 720p; D1; CIF
      Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
      MP@30 fps; 4-channel 8 MP@30 fps
      AI enabled: 1-channel 16 MP@30 fps; 2-channel 12
      MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5
      MP@30 fps
      Video Output 1 HDMI, 1 VGA
      HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
      720
      VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
      *Simultaneous/heterogeneous video sources output for
      VGA and HDMI is configurable.
      Multi-screen Display 1st Screen: 1/4
      2nd Screen: 1/4
      Third-party Camera
      Access
      Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF,
      Canon
      Compression Standard
      Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
      Audio Compression G.711a; G.711u; PCM; G726
      Network
      Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
      UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;
      FTP; Alarm Server; IP Search (Support Dahua IP camera;
      DVR; NVS; etc.); P2P; auto register
      Mobile Phone Access iOS; Android
      Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
      Browser Chrome; IE9 and later; Firefox
      Recording Playback
      Multi-channel Playback Up to 4 channels
      Record Mode General, motion detection; intelligent; alarm
      Backup Method USB device and network
      Playback Mode Instant playback, general playback, event playback, tag
      playback, smart playback (face and motion detection)
      Alarm
      General Alarm Motion detection; privacy masking; video loss; scene
      changing; PIR alarm; IPC external alarm
      Anomaly Alarm Camera disconnection; storage error; disk full; IP
      conflict; MAC conflict; login locked; and cybersecurity
      exception
      Intelligent Alarm Face detection; face recognition; perimeter protection;
      SMD Plus; people counting; stereo analysis; heat map
      Alarm Linkage Record; snapshot; IPC external alarm output; audio;
      buzzer; log; preset; email
      Port
      Audio Input 1-channel RCA
      Audio Output 1-channel RCA
      HDD Interface 1 SATA port, up to 16 TB.The maximum HDD capacity
      varies with environment temperature.
      USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
      HDMI 1
      VGA 1
      Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
      PoE Por 4 ports, 10/100 Mbps, IEEE 802.3 af/at
      General
      Power Supply 53 VDC, 1.226 A
      Power Consumption Total output of NVR is <10 W(without HDD) Total output
      power of PoE is 36W,the maximum output power of
      asingle port is 25.5W
      Net Weight 0.86 kg (1.90 lb)
      Gross Weight 1.88 kg (4.14 lb)
      Product Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87")
      (W × L × H)
      Packaging Dimensions 333 mm × 89 mm × 315 mm (13.11" × 3.50" × 12.40")
      (W × L × H)
      Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
      Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
      Operating Humidity 10%–93% (RH)
      Installation Rack or desktop
      Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
      CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
      2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
      EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
      CE-LVD: EN 62368-1:2014
      Videos

      3-Years Warranty

      The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

      Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

    • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
    • We will not cover inbound shipping of the return to us.
    • We will cover outbound shipping for any replacements to the customer.
    • We will need the serial number of the product and your order number.
    • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
    • Recently viewed products

      © 2024 Spy Monkey Surveillance, Powered by Shopify

        • American Express
        • Apple Pay
        • Google Pay
        • Mastercard
        • PayPal
        • Shop Pay
        • Union Pay
        • Visa

        Login

        Forgot your password?

        Don't have an account yet?
        Create account
