Product Name |

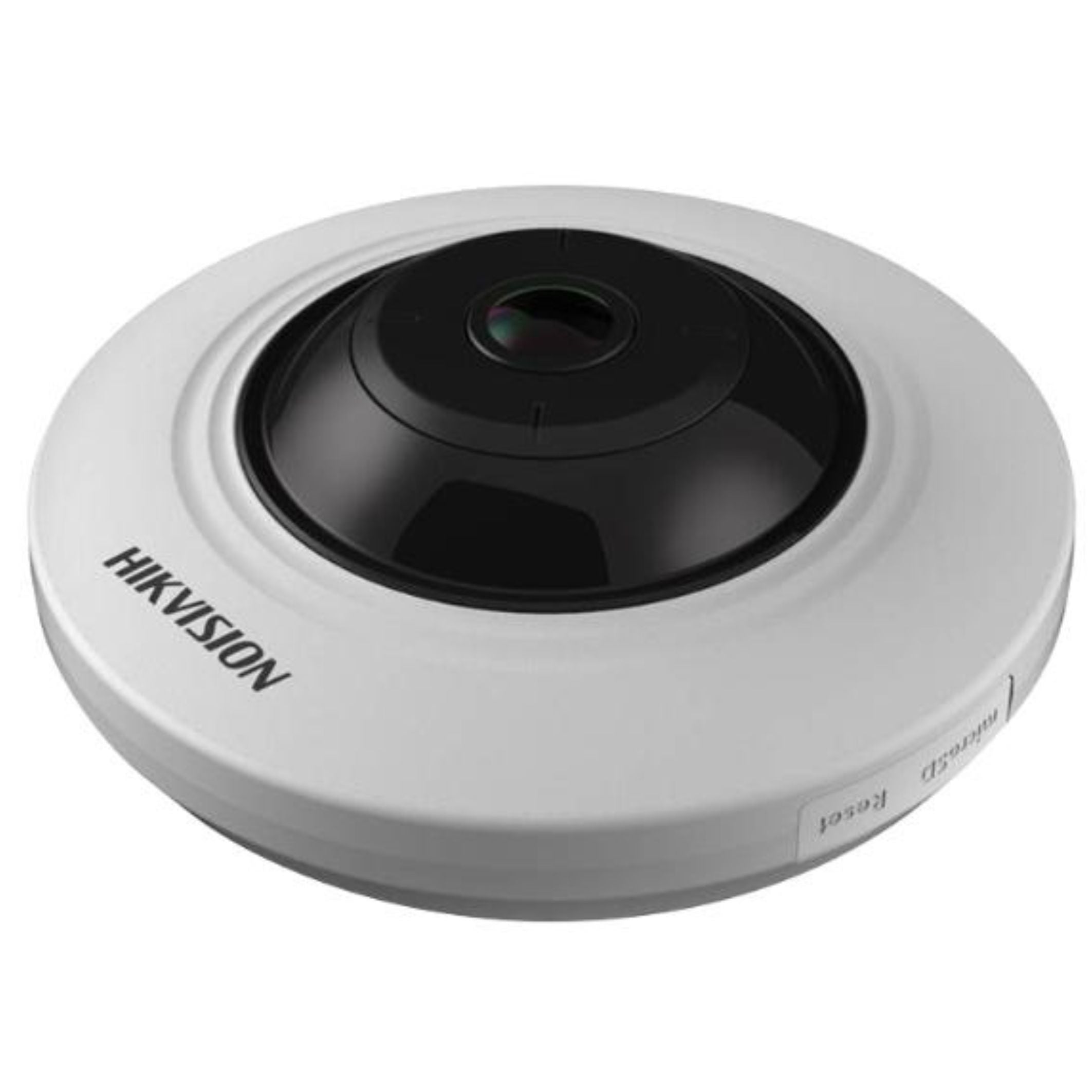

DS-2CD2955G0-IS(U) 5 MP Fisheye Network Camera |
Key Features |
High quality imaging with 5 MP resolution Efficient H.265+ compression technology 180° fisheye view Clear imaging against strong back light due to 120 dB true WDR technology Audio and alarm interface available |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max. Resolution |
2560 × 1920 |
Min. Illumination |
Color: 0.017 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR |
Shutter Time |
1/3 s to 1/100,000 s |
Day & Night |
IR cut filter |
Lens Type |
Fixed focal lens, 1.05 mm |
Focal Length & FOV |
1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180° |
Lens Mount |
M12 |
Focus |
Fixed |
Iris Type |
Fixed |
Aperture |
F2.25 |
Depth of Field |
0.1 m to ∞ |
DORI |
D: 21 m, O: 8 m, R: 4 m, I: 2 m |
Supplement Light Type |
IR |
Supplement Light Range |
Up to 8 m |
Smart Supplement Light |
Yes |
IR Wavelength |
850 nm |
Main Stream |
50 Hz: 25 fps(2560 × 1920, 2048 × 1536, 1280 × 960) 60 Hz: 30 fps(2560 × 1920, 2048 × 1536, 1280 × 960) |
Sub-Stream |
50 Hz: 25 fps (640 × 480) 60 Hz: 30 fps (640 × 480) |
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate |
32 Kbps to 16 Mbps |
H.264 Type |
Baseline Profile, Main Profile, High Profile |
H.265 Type |
Main Profile |
Region of Interest (ROI) |
1 fixed region for main stream |
Mount Type |
Support wall/table/ceiling mounting |
Display Mode |
Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ |
Audio Type |
Mono sound |
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Audio Bit Rate |
64 Kbps (G.711 ulaw/G.711 alawm)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC) |
Audio Sampling Rate |
8 kHz/16 kHz |
Environment Noise Filtering |
Yes |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
Simultaneous Live View |
Up to 6 channels |
API |
Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI |
User/Host |
Up to 32 users 3 user levels: administrator, operator, and user |
Client |
iVMS-4200, Hik-Connect, Hik-Central |
Web Browser |
Plug-in required live view: IE 10+ Local service: Chrome 57.0+, Firefox 52.0+ |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage |
NAS (NFS, SMB/CIFS) |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, white balance, adjustable by client software or web browser |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, 3D DNR |
Wide Dynamic Range (WDR) |
120 dB |
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
Built-in Microphone |
-U: Yes |
Audio Interface |
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
Alarm Interface |
1 input, 1 output (max. 12 VDC, 30 A) |
Reset Key |
Yes |
Power Output |
12 VDC, max. 100 mA |
Basic Event |
Motion detection, video tampering alarm, exception |
Smart Event |
Line crossing detection, intrusion detection |
Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output |
Power |
12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
Material |
ADC12 |
Dimension |
Ø 119.9 mm × 41.2 mm (Ø 4.7" × 1.6") |
Package Dimension |
150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9") |
Weight |
Approx. 320 g (0.7 lb.) |
Weight with Package |
Approx. 500 g (1.1 lb.) |
Storage Conditions |
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
Language |
13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
Startup and Operating Conditions |
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
General Function |
Heartbeat, anti-banding, mirror, password protection |
EMC |
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety Certifications |
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
Environment Certifications |
CE-RoHS: 2011/65/EU |
Anti-corrosion Protection |
No specific protection |
