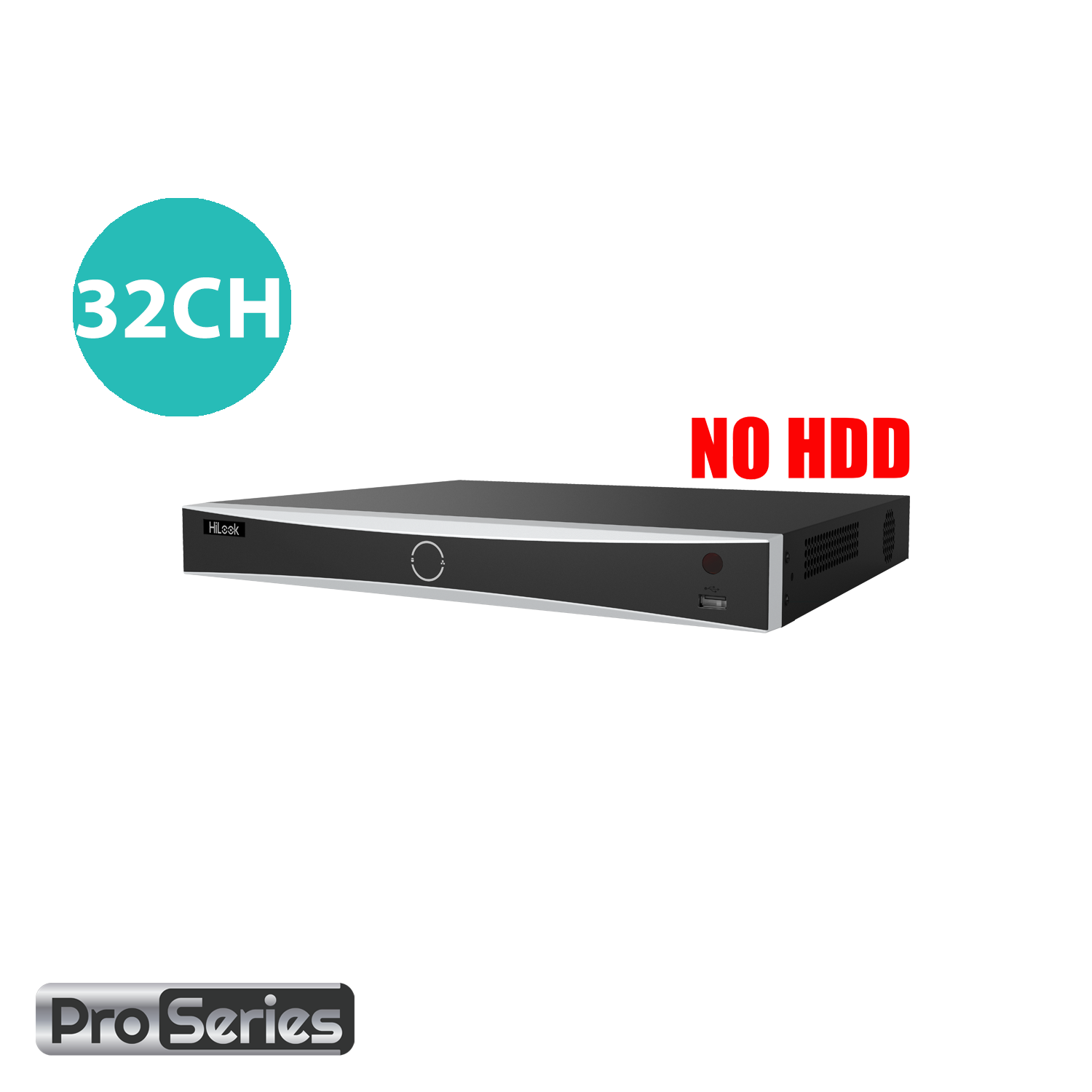

HiLook 32-Channel NVR - NVR-232MH-K/16P

Description

🔹 HiLook NVR-232MH-K/16P – 32-Channel 4K PoE Network Video Recorder

The HiLook NVR-232MH-K/16P is a professional-grade 32-channel network video recorder designed for large-scale surveillance systems. With 16 built-in Power over Ethernet (PoE) ports, it simplifies installation by delivering power and data over a single cable to each connected camera.

🚀 Key Features:

  • 32 IP Camera Inputs – Supports up to 32 IP cameras for extensive surveillance coverage.
  • 16 PoE Ports – Built-in PoE interfaces for easy plug-and-play installation.
  • 4K HDMI Output – Delivers ultra-high-definition video playback for crisp footage.
  • H.265+ Compression – Efficient video compression saves storage without reducing quality.
  • Remote Access – Monitor from anywhere using the HiLookVision mobile app or PC client.
  • Smart Functions – Supports motion detection, line crossing, and intrusion detection (with compatible cameras).
  • Reliable Storage – Supports up to 2 SATA HDDs, each up to 10TB, for 24/7 continuous recording.

📦 Technical Specifications:

  • Model: NVR-232MH-K/16P
  • Video Input: 32 IP channels
  • Decoding: 2 channels at 12MP, 3 channels at 8MP, 6 channels at 4MP, or 12 channels at 1080p
  • Incoming Bandwidth: 256 Mbps
  • Outgoing Bandwidth: 160 Mbps
  • Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
  • Audio Output: 1 channel, RCA
  • Two-Way Audio: 1 channel, RCA
  • Video Compression: H.265+, H.265, H.264+, H.264
  • SATA Interface: 2x SATA, up to 10TB capacity per HDD
  • USB Ports: 2x USB 2.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Power Consumption: ≤ 15 W (without HDD and PoE off)
  • Operating Temperature: -10°C to +55°C
  • Humidity: 10% to 90%
  • Dimensions: 385 × 315 × 52 mm
  • Weight: ≤ 3 kg

✅ Ideal For:

  • Large-Scale Surveillance Systems
  • Commercial and Industrial Security
  • Installers Requiring Extensive PoE Integration

📄 Download the Official Datasheet:

👉 Click here to download the HiLook NVR-232MH-K/16P Datasheet (PDF)

💡 Why Choose This NVR?

The HiLook NVR-232MH-K/16P offers a seamless blend of performance and scalability. Its plug-and-play PoE functionality ensures quick installation, while smart features and efficient compression deliver reliable and intelligent video surveillance. Whether upgrading or starting fresh, this NVR is built to meet your evolving security needs.

Read more

Product form

HiLook 32-Channel NVR - NVR-232MH-K/16P

SKU: NVR-232MH-K-16P

$701.00 $650.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote
