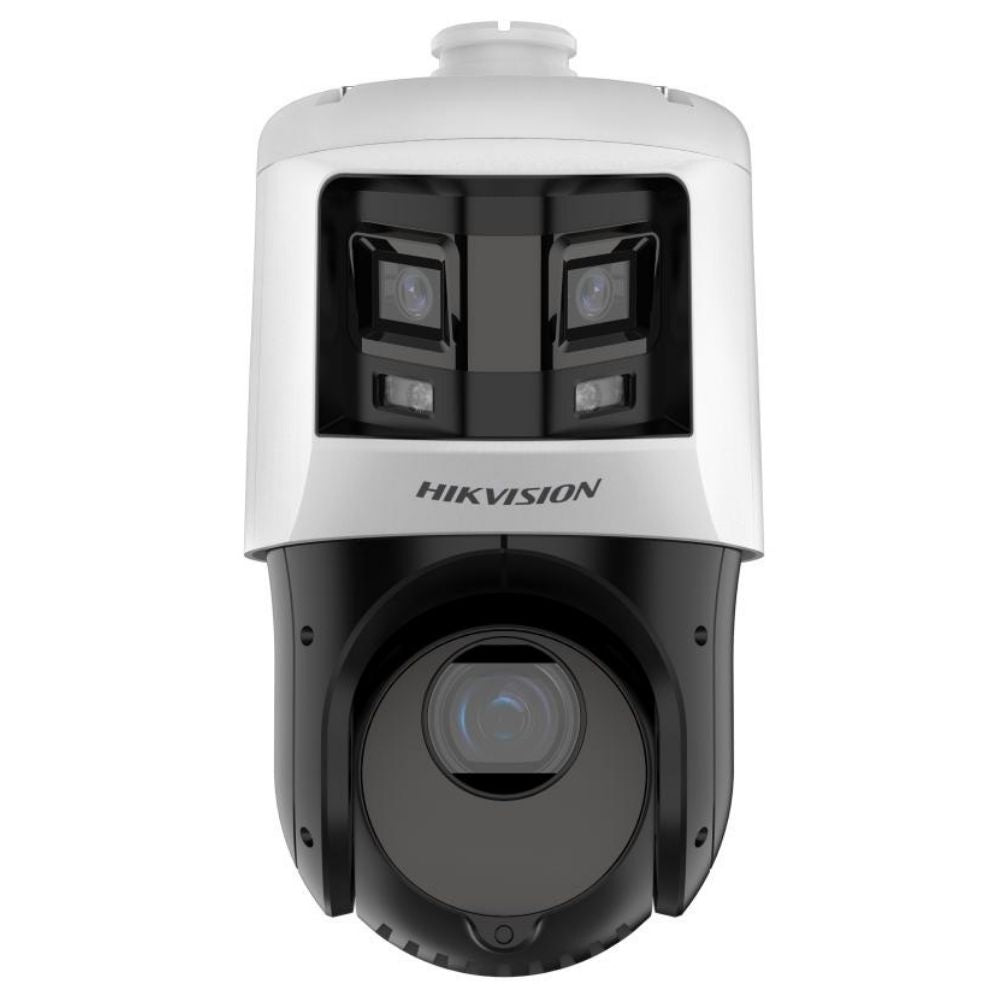

The Hikvision DS-2SE4C425MWG-E-26(F0) TandemVu PTZ is an advanced dual-lens network camera that merges wide-angle panoramic coverage with powerful PTZ zoom functionality. Equipped with DarkFighter and ColorVu technologies, it ensures clear, colorful images even in near-total darkness. Ideal for rivers, roads, railways, airports, parks, and other expansive venues, this camera provides operators with both situational awareness and precise detail capture.
Features
-
Dual-Lens Surveillance: Captures both a wide panoramic view and detailed close-ups simultaneously, ensuring no critical information is missed.
-
Superior Low-Light Performance: Powered by DarkFighter and ColorVu technologies, providing clear, colorful images even in extremely dim lighting conditions.
-
Powerful Optical Zoom: Features a 25x optical zoom lens on the PTZ channel, allowing for sharp, magnified views of distant objects and activities.
-
Extensive Night Vision: Equipped with up to 100m IR distance for the PTZ and 30m white light for the bullet channel, illuminating vast areas in complete darkness.
-
Intelligent Human and Vehicle Detection: Utilizes deep learning to accurately classify human and vehicle targets, reducing false alarms and improving monitoring efficiency.
-
Robust Weather Protection: Rated IP66, offering reliable operation in harsh outdoor environments, resistant to dust and powerful water jets.
-
Advanced Video Compression: Supports H.265+ and H.264+, optimizing storage and bandwidth without compromising video quality.
-
Expansive Coverage: Ideal for large outdoor spaces such as transportation hubs, city squares, and industrial perimeters, providing comprehensive security.
DOWNLOADS
Perfect For
- Highways & railways
- City squares & parks
- Airports & transportation hubs
- Industrial & perimeter monitoring
- Ports & riversides
Installer Tips
-
Mounting: Use compatible wall, pole, or pendant mounts depending on site conditions.
-
Power Options: Supports 12VDC and PoE+; ensure stable input.
-
Low-Light Tuning: Enable ColorVu mode for vivid color at night, or DarkFighter for enhanced B/W in ultra-low light.
-
Smart Analytics: Configure human/vehicle filters to minimize false alarms.
-
Environmental Protection: Designed with 6000V lightning protection and IP66 weatherproofing for durability.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
Bullet: 3632 × 1632, PTZ: 2560 × 1440 |
| Image Sensor |
Bullet: 1/2.5" CMOS, PTZ: 1/2.8" CMOS |
| Min. Illumination |
Bullet: 0.0005 Lux (ColorVu) |
| Lens |
Bullet: 2.8mm fixed |
| Digital Zoom |
16× |
| Field of View |
Bullet: 180° H, 80° V |
| IR Range |
PTZ: up to 100m |
| White Light |
Bullet: up to 30m |
| PTZ Range |
Pan 360°; Tilt -15° to 90° |
| Presets |
300 |
| Compression |
H.265+/H.265/H.264+/H.264/MJPEG |
| Storage |
MicroSD up to 256 GB |
| Protection |
IP66, Lightning/Surge/Voltage Protection |
| Power |
12VDC or PoE+, Max. 24W |
| Operating Temp |
-30°C to 65°C |
| Weight |
Approx. 2.4 kg |
Extra Info
TandemVu Technology
The TandemVu technology integrates two independent camera modules into one unit. The fixed bullet channel provides a constant, wide-angle overview (180° horizontal field of view), ensuring continuous situational awareness. Concurrently, the PTZ channel offers flexible pan, tilt, and powerful 25x optical zoom capabilities, allowing operators to dynamically focus on specific areas of interest for detailed examination without losing the broader context. This synergistic approach maximizes surveillance efficiency and effectiveness.
DarkFighter and ColorVu Technologies
This camera leverages both DarkFighter and ColorVu technologies to deliver exceptional image quality in challenging lighting conditions. DarkFighter technology excels in ultra-low light environments, producing clear black-and-white images where traditional cameras would struggle. ColorVu technology, on the other hand, captures vivid, full-color details even in near-total darkness by utilizing an F1.0 super aperture and advanced sensors. Together, they ensure superior visual clarity day and night.
Deep Learning Analytics
The camera incorporates advanced deep learning algorithms specifically trained for human and vehicle target classification. This intelligent analysis significantly enhances detection accuracy by distinguishing between relevant events and common environmental disturbances. This capability allows for more precise alerting, efficient video searching, and reduced false alarms, making security operations more streamlined and effective.
Comprehensive Environmental Protection
With an IP66 rating, this camera is built to withstand rigorous outdoor conditions. It is fully protected against dust ingress and high-pressure water jets from any direction. Furthermore, it boasts 6000V lightning protection, surge protection, and voltage transient protection, ensuring consistent and reliable performance even during severe weather events or power fluctuations.
Q&A
Q: What is the maximum resolution of this camera?
A: The bullet channel has a maximum resolution of 3632 × 1632, and the PTZ channel has a maximum resolution of 2560 × 1440.
Q: What is the night vision range for the PTZ and bullet channels?
A: The PTZ channel has an IR distance of up to 100 meters, and the bullet channel has a white light range of up to 30 meters.
Q: Does this camera support Power over Ethernet (PoE)?
A: Yes, the camera supports PoE+.
Q: What type of storage does the camera support?
A: It has a built-in memory card slot that supports Micro SD/Micro SDHC/Micro SDXC cards up to 256 GB.
Q: Can this camera distinguish between humans and vehicles?
A: Yes, it focuses on human and vehicle target classification based on deep learning.
Q: What is the operating temperature range for this camera?
A: The camera can operate in temperatures ranging from -30℃ to 65℃ (-22°F to 149°F).
Q: What video compression standards does this camera use?
A: It supports H.265, H.264, and MJPEG, including H.264+ and H.265+.
Q: What is the DORI distance for this camera?
A: For the PTZ channel (Tele), the DORI distances are:
- Detect: 2200.0 m (7217.85 ft)
- Observe: 873.0 m (2864.17 ft)
- Recognize: 440.0 m (1443.57 ft)
- Identify: 220.0 m (721.78 ft)
Q: Can I view the camera feed on my mobile device?
A: Yes, it supports the Hik-Connect client for mobile viewing.
Q: Does the camera have an audio input and output?
A: Yes, it has 1 audio input and 1 audio output.
