Description
This kit has been superseded by the Dahua Full AI 2023 Security Systems built around Dahua's latest WizSense AI 3X66 Cameras and AI NVRs.
This video highlights the new features introduced by the 3X66 series. This product's specifications may vary in terms of resolution, model, etc. Please refer to the datasheets for accurate specs or contact us for questions.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targeted, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

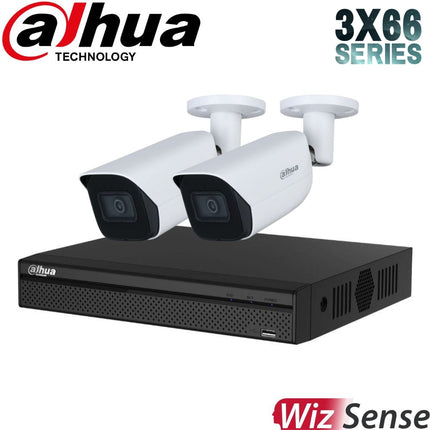

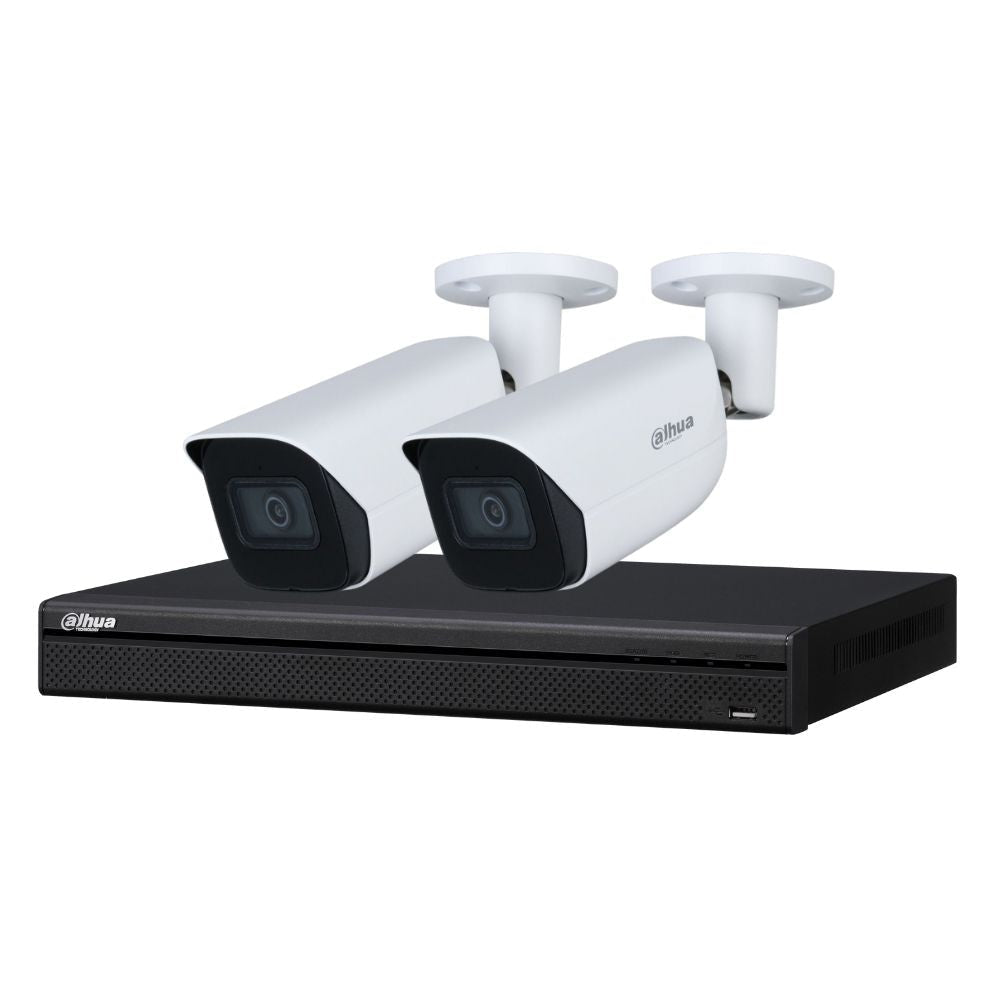

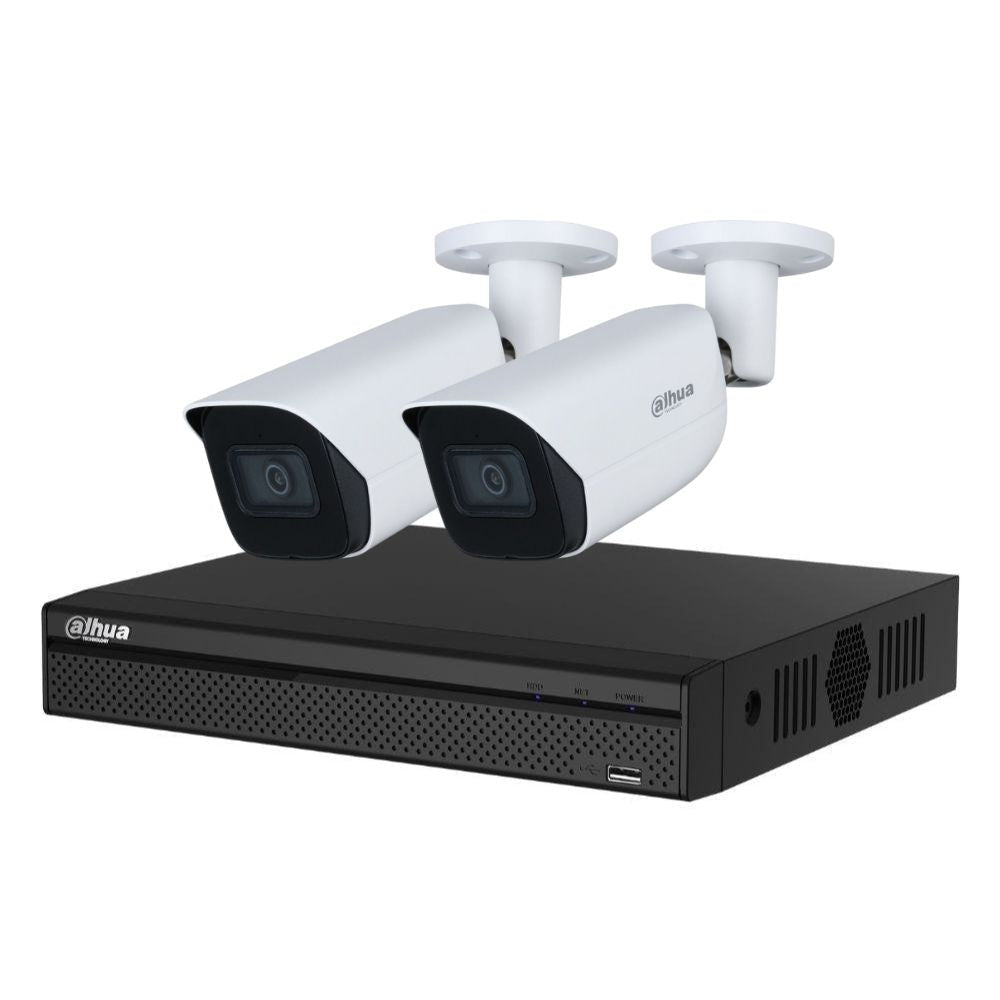

The Dahua DHI-NVR4104HS-P-4KS2/L is a 4-channel network video recorder with a new and improved user interface. The NVR serves as a highly cost-effective product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, remote management and control.
The NVR supports Smart Motion Detection with a deep learning algorithm allowing human and vehicle identification with compatible cameras. It also supports advanced intelligent detection technology such as detecting abandoned or missing objects, Tripwire violations and intrusion violations. The NVR is also capable of recording business analysis data such as Facial Detection, People Counting, and Heat maps from IP cameras with built-in Intelligent Business Analytics.
For applications where high image detail is required, the DHI-NVR4104HS-P-4KS2/L delivers the capability of 4K resolution processing. It supports smart encoding (Smart H.265+/ Smart H.264+) which is an optimised implementation of (H.265/H.264) codec that uses a scene-adaptive encoding strategy, providing more efficiency in the encoding process and higher video quality, reducing the cost of storage and transmission significantly.
The NVR supports P2P remote surveillance for Live camera viewing and playback on mobile devices with the free app for ios and android called iDMSS (for iOS) and gDMSS (for Android).
The NVR is ideal for a wide range of applications including home, business or commercial solutions.
Camera Features
- 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 6 MP (3072 × 2048) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 30 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, are applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- SMD 4.0, AI SSA.
Recorder Features
- New 4.0 user interface, Security baseline 2.1
- H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
- Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
- Supports mainstream cameras of ONVIF and RTSP protocols
- P2P remote surveillance, video play on a mobile device
- VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 4K
- AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
- Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches
- 1 SATA III port, up to 10 TB for a single HDD.
System Includes
If the system is purchased with a hard drive, it will be pre-installed in the NVR.
Ethernet cables, mounts, junction boxes. and other accessories are available for purchase.
Downloads
Tech Specs

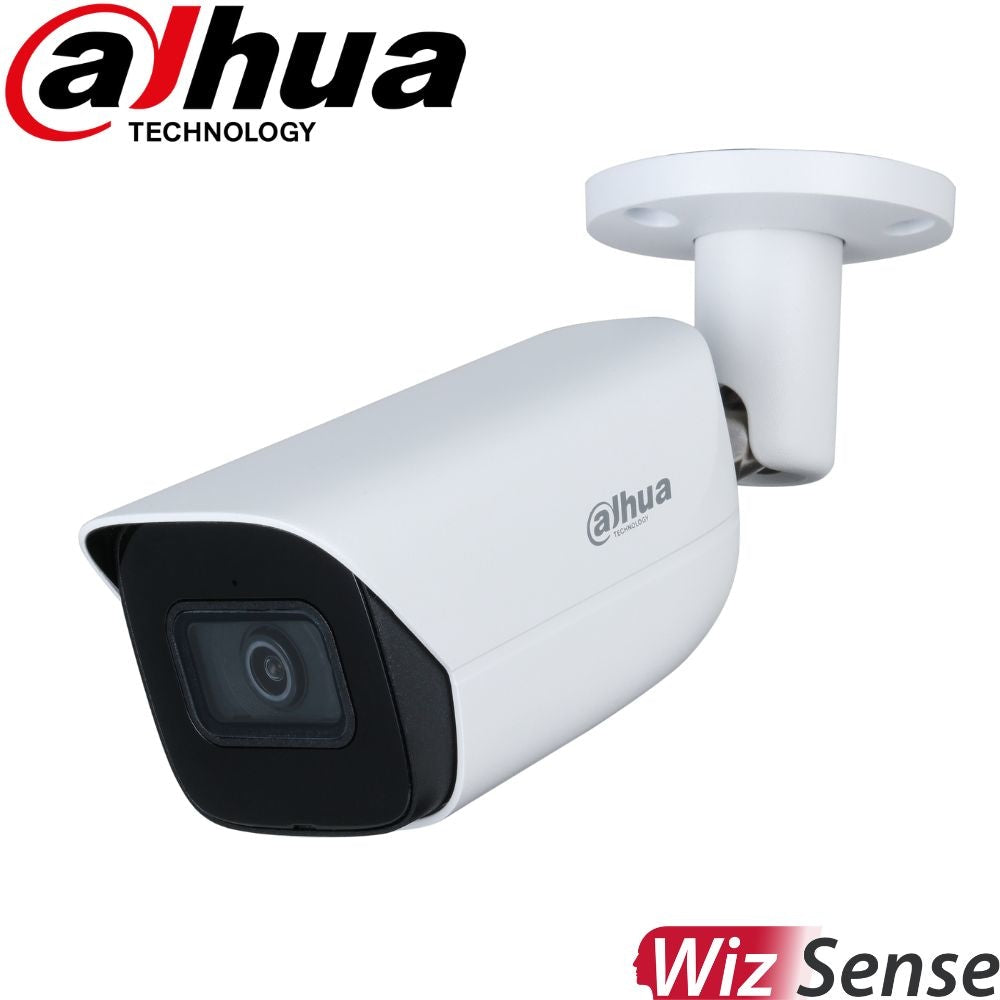

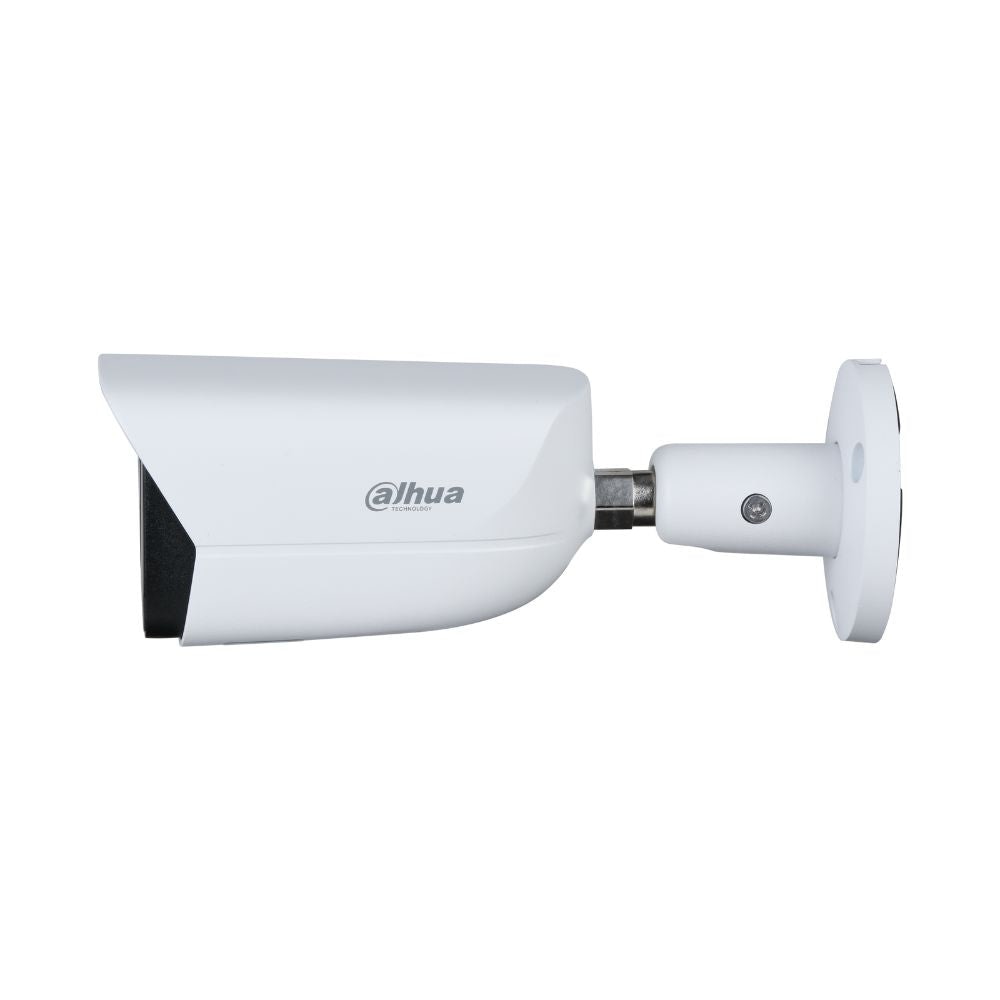

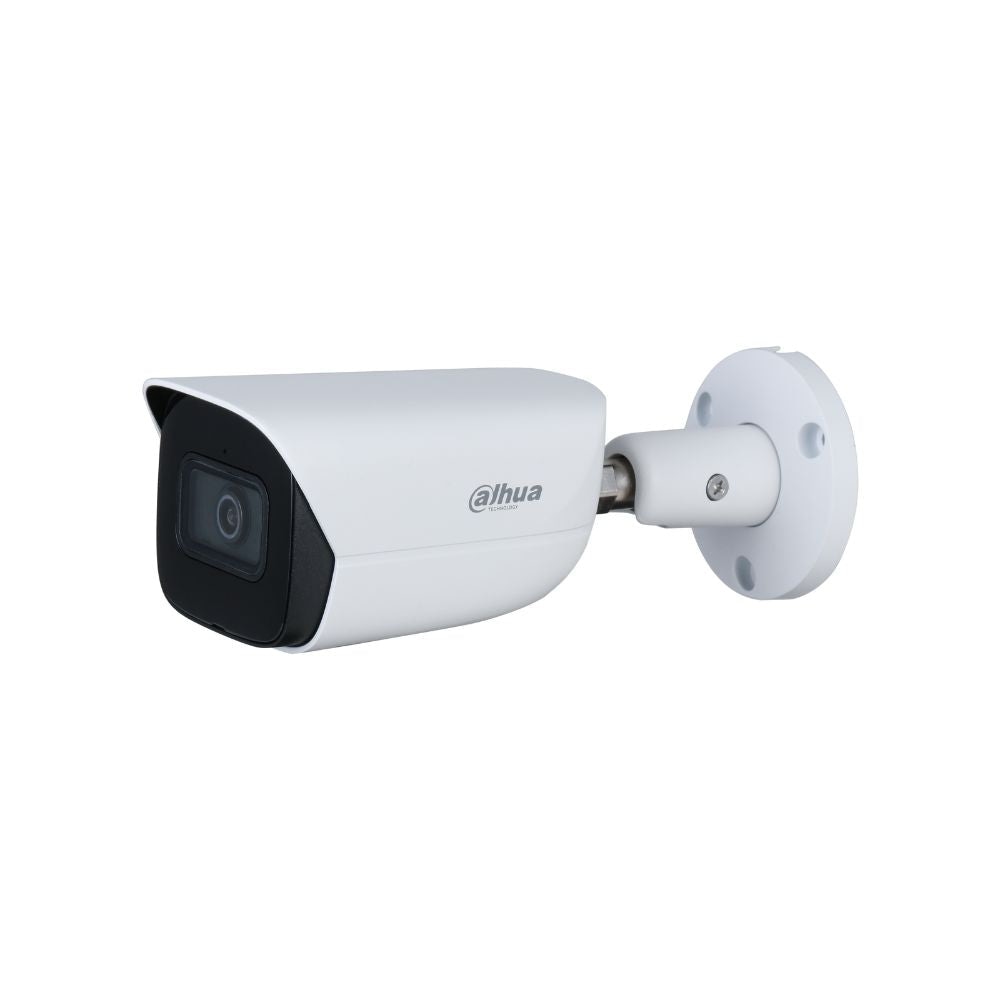

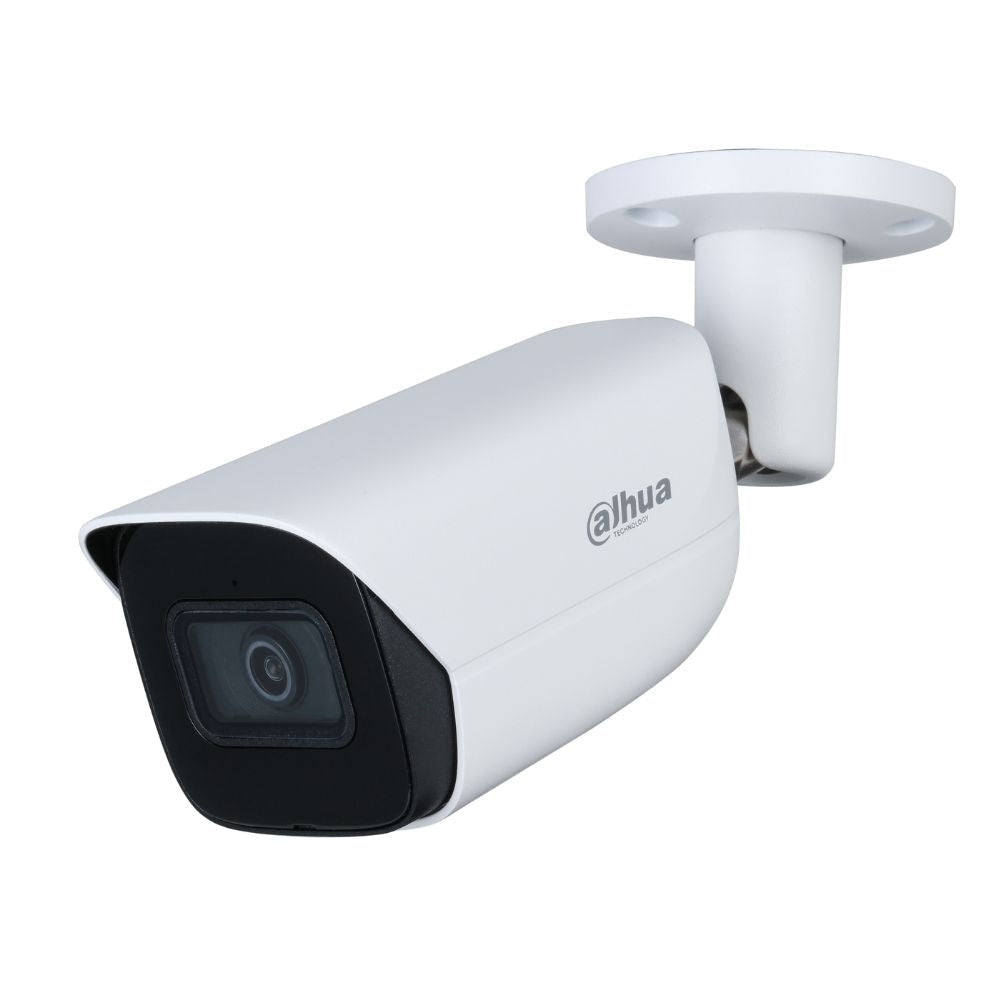

Dahua Security Camera: 6MP Bullet, 2.8mm, WizSense, Starlight, SMD4.0 - DH-IPC-HFW3666EP-AS-AUS
Camera |
Image Sensor |
1/2.7" CMOS |
Max. Resolution |
3072 (H) × 2048 (V) |
ROM |
128 MB |
RAM |
512 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
|
S/N Ratio |
>56 dB |
Illumination Distance |
30 m (98.43 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
1 (IR LED) |
Pan/Tilt/Rotation Range |
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
Lens |
Lens Type |
Fixed-focal |
Lens Mount |
M12 |
Focal Length |
2.8 mm; 3.6 mm; |
Max. Aperture |
F1.4 |
Field of View |
2.8 mm: Horizontal: 111°; Vertical: 58°; Diagonal: 132°
3.6 mm: Horizontal: 92°; Vertical:45°; Diagonal: 110°
|
Iris Control |
Fixed |
Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (18.37 ft)
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
63.6 m
(208.66 ft)
|
25.4 m
(83.33 ft)
|
12.7 m
(41.67 ft)
|
6.4 m
(21.00 ft)
|
3.6 mm |
85.4 m (280.18 ft) |
34.2 m (112.20 ft) |
17.1 m
(56.10 ft)
|
8.5 m
(27.89 ft)
|
|
|
|
|
|
Intelligence |
IVS (Perimeter Protection) |
Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
AI SSA |
Yes |
Quick Pick |
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec |
Smart H.265+
Smart H.264+ |
AI Coding |
AI H.265
AI H.264 |
Video Frame Rate |
Main stream: 3072 × 2048 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/
704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
|
Stream Capability |
3 streams |
Resolution |
6M(3072 x 2048); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps |
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation (SSA) |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Yes (4 areas) |
Defog |
Yes |
AFSA |
Yes |
Image Rotation |
0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm |
Alarm Event |
- AS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception
-S:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
|
Network |
Network Port |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
User/Host |
20 (Total bandwidth: 64 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser |
IE: IE11
Chrome
Firefox |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Client |
iOS; Android |
Certification |
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Port |
Audio Input |
1 channel (RCA port) (Only - AS supports) |
Audio Output |
1 channel (RCA port) (Only - AS supports) |
Alarm Input |
1 channel in: 5 mA 3–5 VDC (Only - AS supports) |
Alarm Output |
1 channel out: 300 mA 12 VDC (Only - AS supports) |
Power |
Power Supply |
12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 3.1 W (12 VDC); 3.7 W (PoE)
Max. (WDR + IR intensity + Intelligence): 5.3 W (12 VDC); 6.5 W (PoE)
|
Environment |
Operating Temperature |
–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH) |
Storage Temperature |
–40 °C to +60 °C (–40 °F to 140 °F) |
Protection |
IP67 |
Structure |
Casing |
Metal |
Product Dimensions |
192.7 mm × 70.5 mm × 66.4 mm
(7.59" × 2.77" × 2.61") (L × W × H) |
Net Weight |
590 g (1.30 lb) |
Gross Weight |
780 g (1.72 lb) |
Dahua 4 Channel Network Video Recorder: 8MP(4K), Lite - DHI-NVR4104HS-P-4KS2/L
System |
Main Processor |
Industrial-grade embedded processor |
OS |
Embedded Linux |
Operation Interface |
Web/operating in local GUI |
Perimeter Protection by Camera |
Performance |
4 channels |
AI Search |
Search for pictures by channel, time and event type |
Face Detection by Camera |
Performance |
4 channels |
Face Attributes |
6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
AI Search |
Search for pictures by channel, time and face attributes |
SMD Plus by Camera |
Performance |
4 channels |
AI Search |
Search by target classification (human, vehicle) |
Video |
Access Channel |
4 |
Network Bandwidth |
Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
Resolution |
8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
Decoding Capability |
8 × 1080p@30 fps |
Video Output |
1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
Multi-screen Display |
1 , 4 views |
Third-party Camera Access |
ONVIF; RTSP |
Compression |
Video |
Smart H.265/H.265/Smart H.264/H.264/MJPEG |
Audio |
PCM/G711A/G711U/G726/AAC |
Network |
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
Mobile Phone Access |
Android; iOS |
Interoperability |
ONVIF(profile T/S/G); CGI; SDK |
Browser |
Chrome; IE9 or later; firefox |
Record Playback |
Multi-channel Playback |
Up to 4 channels for playback |
Record Mode |
Manual record; alarm recording; SMD recording; smart recording |
Storage |
Local HDD; network |
Backup |
USB storage device |
Playback Function |
1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
Storage |
Disk Group |
Yes |
Alarm |
General Alarm |
Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
Anomaly Alarm |
Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
Intelligent Alarm |
Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
Alarm Linkage |
Recording, snapshot, audio, buzzer, log, preset, and email |
External Port |
Audio Input |
1 × RCA input |
Audio Output |
1 × RCA output |
HDD |
1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
USB |
2 (1 × front USB2.0; 1 × back USB2.0) |
HDMI |
1 (supports up to 4K resolution output) |
VGA |
1 |
Network |
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
POE |
4 |
General Parameter |
Power Supply |
48 V/53 VDC, 1.25 A/1.13 A |
Power Consumption |
< 10 W (HDD not included, idling)
Total output power of PoE is 36W, the maximum output power of a single port is 25.5W |
Net Weight |
0.86 kg (1.90 lb) |
Gross Weight |
1.86 kg (4.10 lb) |
Product Dimensions |
260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") (W × L × H) |
Package Dimensions |
117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H) |
Operating Conditions |
–10 °C to +55 °C (+10 °F to +131 °F) |
Storage Conditions |
0 °C to +40 °C (32 °F to 104 °F) |
Operating Humidity |
10?~93? |
Storage Humidity |
30%~85% |
Operating Altitude |
3000 m (9842.52 ft) |
Installation |
Desktop mounted |
Certifications |
CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B |
