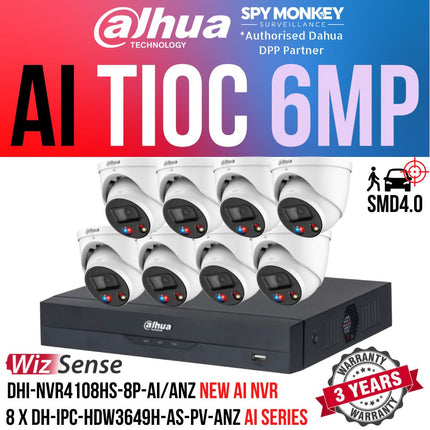

Dahua AI TiOC Security System: 8x 6MP TiOC 2.0 Turrets, 8CH 16MP WizSense NVR, SMD 4.0

Description

Description

This video highlights the features and functionalities of the TiOC 2.0 series. Device specifications may vary. Please refer to the datasheets for accurate specs or contact us for questions.

Dahua's Three-in-One Cameras 2.0 (TiOC 2.0) integrate multiple layers of protection into one single system. A TiOC surveillance system features WizSense AI, Active Deterrence, and 24/7 Full-Colour Nightvision as well as 2-way audio.

WizSense AI offers quick, quality, and reliable surveillance while minimising false alarms. AI Smart Motion Detect 4.0 will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognising changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR such as this kit.

Active Deterrence turns your system into responsive security that uses strobe lights and audio warnings or alarms to deter any would-be intruder.

24/7 Full-Colour intuitively maximises visual clarity in relevant situations by utilising LED lights to brighten the area in the event of a detected intrusion.

Click here to read our hands-on review of the Dahua TiOC 2.0 cameras.
Dahua TiOC Cameras - Adding Active Deterrence and AI To Your Surveillance Solution

Kit Includes

*Only included if you select a variant with a specified capacity. It will come pre-installed in the NVR.
Cables and mounts are not included but are available for purchase.

Camera Features

  • 6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 6 MP (3200 x 1800) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • One press arming/disarming through alarm input

Recorder Features

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  • Access, storage or forwarding at 80 Mbps.
  • Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
  • AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
  • AI by Camera: Face detection and recognition, perimeter protection; SMD Plus;
  • ANPR; people counting; stereo analysis; heat map.
  • Security baseline 2.3.
  • Up to 8-channel SMD
  • Smart Motion Detection Plus, filters the motion detection alarm triggered by non-concerned target and recognize human and vehicle effectively, sending alarms when a human or vehicle intrudes.
  • Increased bandwidth and improved decoding capability.
  • Supports cameras with Quick Pick Technology: Quick Pick can quickly detect targets by attributes such as the colour of clothing and vehicles, and accurately locate targets in search, facilitating enhanced search efficiency and retrieval.
  • Supports high-precision face recognition by facial attributes in image search and face attribute search.
  • Smart Illumination based on conditions, compatible with dual illuminator cameras such as TiOC2.0
  • Supports EPTZ (with compatible cameras): Zoom in and track multiple humans and vehicles (up to 3) when an alarm is triggered, similar to PTZ linkage. Tracks target until it disappears.
  • Enhanced Mode: Extends POE transmission up to 200m.
  • Supports One-Click Disarming for Active deterrence and push notifications.
  • The new AI Series supports increased bandwidth and improved decoding capability
  • Up to 8-Channel SMD: Smart Motion Detection effectively eliminates false alerts, as it can filter humans and vehicles in motion detection.

AI Coding - Smart H.265+

Focusing on humans and vehicles while encoding, AI coding ensures target image quality while saving 50% bandwidth and storage costs compared with standard H.265. AI Coding function is enabled by default in the newest firmware version.

These calculations are generated assuming all cameras included in the kit are recording 24/7 and are utilizing Smart H.265 encoding on a medium activity environment. Low scene activity doubles the estimated capacity while high scene activity reduces it by half (similar to the storage consumption of standard H.265 devices).

Estimated Hard Drive Capacity
Smart H.265+ Encoding (Medium Scene Activity)
1 Terabyte Hard Drive 6 Days, 18 Hours
2 Terabyte Hard Drive 1 Week, 6 Days, 13 Hours
3 Terabyte Hard Drive 2 Weeks, 6 Days, 8 Hours
4 Terabyte Hard Drive 3 Weeks, 6 Days, 3 Hours
6 Terabyte Hard Drive 5 Weeks, 5 Days, 16 Hours
8 Terabyte Hard Drive 7 Weeks, 5 Days, 6 Hours
10 Terabyte Hard Drive 9 Weeks, 4 Days, 19 Hours
12 Terabyte Hard Drive 11 Weeks, 4 Days, 9 Hours
14 Terabyte Hard Drive 13 Weeks, 3 Days, 22 Hours

Datasheets

Camera

Recorder

Tech Specs

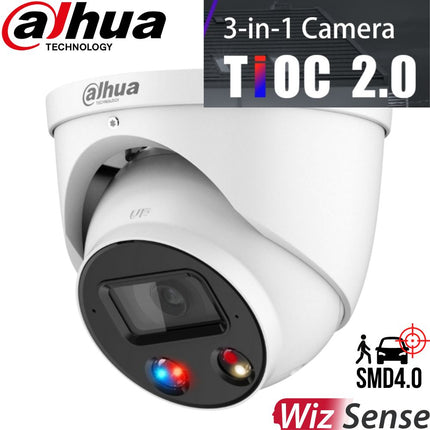

Dahua Security Camera: 6MP TiOC 2.0 Turret - DH-IPC-HDW3649H-AS-PV-ANZ
2.8mm Lens | Active Deterrence | WizSense AI | 24/7 Full-Colour | SMD 4.0 | SSA | Starlight


Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 3200 (H) × 1800 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: H: 97°; V: 70°; D: 128°
3.6 mm: H: 78°; V: 58°; D: 102°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 66.0 m (216.54 ft) 26.4 m ( 86.61 ft) 13.2 m (43.31 ft) 6.6 m (21.65 ft)
3.6 mm 78.0 m (255.91 ft) 31.2 m ( 102.36 ft) 15.6 m (51.18 ft) 7.8 m (25.59 ft)
Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 4.0 Less false alarm, longer detection distance
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream:3200 × 1800 @(1 fps–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 6M (3200 × 1800); 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32kbps–8192 kbps H.265:12kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 8.3 W (DC12 V) 8.8 W (POE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.37" × Φ4.80")
Net Weight 745 g (1.64 lb)
Gross Weight 915 g (2.02 lb)

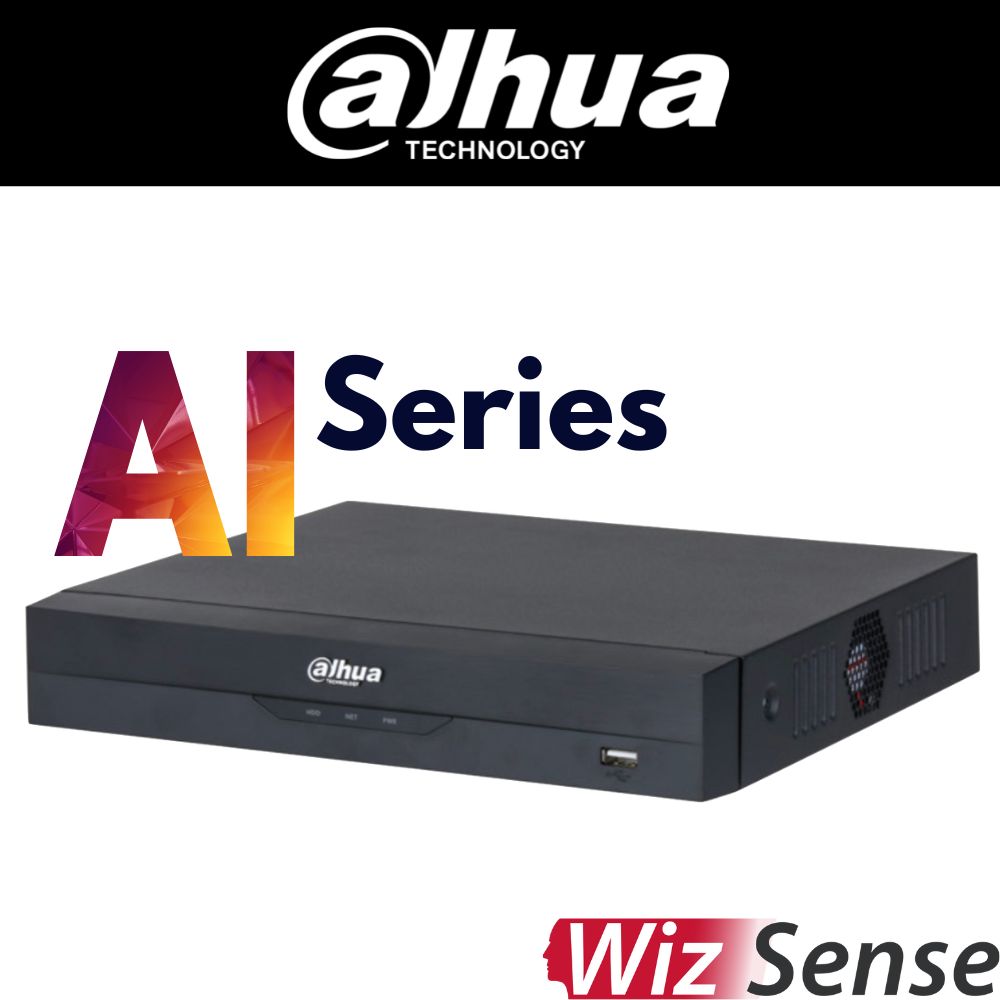

Dahua 8-Channel WizSense NVR: 16MP - DHI-NVR4108HS-8P-AI/ANZ
Face Detection | Perimeter Protection | SMD 4.0 | Smart H.265+ Encoding
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
AI
AI by Recorder Face detection, face recognition, perimeter protection,
and SMD Plus;
AI by Camera Face detection; face recognition; perimeter protection;
SMD Plus; ANPR; people counting; stereo analysis; heat
map
Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)
2 channels, 10 IVS rules for each channel
Perimeter Performance of
AI by Camera (Number of
Channels)
8 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask;
beard
Face Detection
Performance of AI by
Recorder (Number of
Channels)
1 channel (up to 12 face images/s each channel)
Face Detection
Performance of AI by
Camera (Number of
Channels)
8 channels
Face Recognition
Face Database Capacity Up to 10 face databases with 200,00 images, with a
total capacity of 2.5 G. Name, gender, birthday, address,
credential type, credential No., countries & regions and
state can be added to each face image.
Face Recognition
Performance of AI by
Recorder (Number of
Channels)
8-channel FD (by camera) + FR (by recorder),image
stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video
stream: 12 face images/s
Face Recognition
Performance of AI by
Camera (Number of
Channels)
8 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor
vehicle, reducing false alarms caused by leaves, rain and
lighting condition change
SMD Plus by Camera 8 channels
Vehicle License Plate Comparison
ANPR by Camera (Number
of Channels)
4 channels
License Plate Database
Capacity
1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist
Audio and Video
Access Channel 8 channels
Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording
and 256 Mbps outgoing
AI-enabled: 180 Mbps incoming, 180 Mbps recording and
180 Mbps outgoing
Resolution 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p;
720p; D1
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5
MP@30 fps; 8-channel 4 MP@30 fps
AI-enabled: 1-channel 16 MP@30 fps; 2-channel
12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel
5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel
1080p@30 fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for
VGA and HDMI is configurable.
Multi-screen Display 1st Screen: 1/4/8/9
2nd Screen: 1/4/8/9
Third-party Camera
Access
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF,
Canon
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;
FTP; Alarm Server; IP Search (Support Dahua IP camera;
DVR; NVS; etc.); P2P; auto register
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
Recording Playback
Multi-channel Playback Up to 8 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection; privacy masking; video loss; scene
changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage error; disk full; IP
conflict; MAC conflict; login locked; and cybersecurity
exception
Intelligent Alarm Face detection; face recognition; perimeter protection;
SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio;
buzzer; log; preset; email
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
HDD Interface 1 SATA port, up to 16 TB.The maximum HDD capacity
varies with environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 53 VDC, 1.812 A
Power Consumption Total output of NVR is <10 W(without HDD) Total output
power of PoE is 72W,the maximum output power of
asingle port is 25.5W
Net Weight 0.92 kg (2.03 lb)
Gross Weight 2.05 kg (4.52 lb)
Product Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87")
(W × L × H)
Packaging Dimensions 372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13")
(W × L × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Operating Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH)
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Videos

3-Years Warranty

The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

  • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
  • We will not cover inbound shipping of the return to us.
  • We will cover outbound shipping for any replacements to the customer.
  • We will need the serial number of the product and your order number.
  • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
  • Dahua AI TiOC Security System: 8x 6MP TiOC 2.0 Turrets, 8CH 16MP WizSense NVR, SMD 4.0

    Product form

    SKU: DH-TIOC2_6MPT-X08-08CH-00TB

    $3,100.00 $2,772.00 Incl. VAT

      • Guaranteed secure & safe checkout.

        paypal
      • FREE Express Courier Shipping for all orders over $100
      • 30-Day Returns Policy
      • Back to Base Australian Warranty & Tech Support
      • Australian Stock, No Grey Import Products

        Description

        Description

        This video highlights the features and functionalities of the TiOC 2.0 series. Device specifications may vary. Please refer to the datasheets for accurate specs or contact us for questions.

        Dahua's Three-in-One Cameras 2.0 (TiOC 2.0) integrate multiple layers of protection into one single system. A TiOC surveillance system features WizSense AI, Active Deterrence, and 24/7 Full-Colour Nightvision as well as 2-way audio.

        WizSense AI offers quick, quality, and reliable surveillance while minimising false alarms. AI Smart Motion Detect 4.0 will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognising changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR such as this kit.

        Active Deterrence turns your system into responsive security that uses strobe lights and audio warnings or alarms to deter any would-be intruder.

        24/7 Full-Colour intuitively maximises visual clarity in relevant situations by utilising LED lights to brighten the area in the event of a detected intrusion.

        Click here to read our hands-on review of the Dahua TiOC 2.0 cameras.
        Dahua TiOC Cameras - Adding Active Deterrence and AI To Your Surveillance Solution

        Kit Includes

        *Only included if you select a variant with a specified capacity. It will come pre-installed in the NVR.
        Cables and mounts are not included but are available for purchase.

        Camera Features

        • 6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
        • Outputs max. 6 MP (3200 x 1800) @25/30 fps
        • H.265 codec, high compression rate, ultra-low bit rate.
        • Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
        • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
        • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
        • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
        • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
        • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
        • 12 VDC/PoE power supply.
        • IP67 protection.
        • Sound and light alarm (red and blue lights).
        • SMD 4.0.
        • One press arming/disarming through alarm input

        Recorder Features

        • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
        • Access, storage or forwarding at 80 Mbps.
        • Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
        • AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
        • AI by Camera: Face detection and recognition, perimeter protection; SMD Plus;
        • ANPR; people counting; stereo analysis; heat map.
        • Security baseline 2.3.
        • Up to 8-channel SMD
        • Smart Motion Detection Plus, filters the motion detection alarm triggered by non-concerned target and recognize human and vehicle effectively, sending alarms when a human or vehicle intrudes.
        • Increased bandwidth and improved decoding capability.
        • Supports cameras with Quick Pick Technology: Quick Pick can quickly detect targets by attributes such as the colour of clothing and vehicles, and accurately locate targets in search, facilitating enhanced search efficiency and retrieval.
        • Supports high-precision face recognition by facial attributes in image search and face attribute search.
        • Smart Illumination based on conditions, compatible with dual illuminator cameras such as TiOC2.0
        • Supports EPTZ (with compatible cameras): Zoom in and track multiple humans and vehicles (up to 3) when an alarm is triggered, similar to PTZ linkage. Tracks target until it disappears.
        • Enhanced Mode: Extends POE transmission up to 200m.
        • Supports One-Click Disarming for Active deterrence and push notifications.
        • The new AI Series supports increased bandwidth and improved decoding capability
        • Up to 8-Channel SMD: Smart Motion Detection effectively eliminates false alerts, as it can filter humans and vehicles in motion detection.

        AI Coding - Smart H.265+

        Focusing on humans and vehicles while encoding, AI coding ensures target image quality while saving 50% bandwidth and storage costs compared with standard H.265. AI Coding function is enabled by default in the newest firmware version.

        These calculations are generated assuming all cameras included in the kit are recording 24/7 and are utilizing Smart H.265 encoding on a medium activity environment. Low scene activity doubles the estimated capacity while high scene activity reduces it by half (similar to the storage consumption of standard H.265 devices).

        Estimated Hard Drive Capacity
        Smart H.265+ Encoding (Medium Scene Activity)
        1 Terabyte Hard Drive 6 Days, 18 Hours
        2 Terabyte Hard Drive 1 Week, 6 Days, 13 Hours
        3 Terabyte Hard Drive 2 Weeks, 6 Days, 8 Hours
        4 Terabyte Hard Drive 3 Weeks, 6 Days, 3 Hours
        6 Terabyte Hard Drive 5 Weeks, 5 Days, 16 Hours
        8 Terabyte Hard Drive 7 Weeks, 5 Days, 6 Hours
        10 Terabyte Hard Drive 9 Weeks, 4 Days, 19 Hours
        12 Terabyte Hard Drive 11 Weeks, 4 Days, 9 Hours
        14 Terabyte Hard Drive 13 Weeks, 3 Days, 22 Hours

        Datasheets

        Camera

        Recorder

        Tech Specs

        Dahua Security Camera: 6MP TiOC 2.0 Turret - DH-IPC-HDW3649H-AS-PV-ANZ
        2.8mm Lens | Active Deterrence | WizSense AI | 24/7 Full-Colour | SMD 4.0 | SSA | Starlight


        Camera
        Image Sensor 1/2.7" CMOS
        Max. Resolution 3200 (H) × 1800 (V)
        ROM 128 MB
        RAM 512 MB
        Scanning System Progressive
        Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
        Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
        0.0003 lux@F1.0 (B/W, 30 IRE)
        0 lux (illuminator on)
        S/N Ratio ﹥ 56 dB
        Illumination Distance 30 m (98.43 ft) (IR)
        30 m (98.43 ft) (warm light)
        Illuminator On/Off Control Auto; manual
        Illuminator Number 1 (IR LED)
        1 (warm light)
        Pan/Tilt/Rotation Range Pan: 0°–360°
        Tilt: 0°–78°
        Rotation: 0°–360°
        Lens
        Lens Type Fixed-focal
        Mount Type M12
        Focal Length 2.8 mm; 3.6 mm
        Field of View 2.8 mm: H: 97°; V: 70°; D: 128°
        3.6 mm: H: 78°; V: 58°; D: 102°
        Iris Type Fixed
        Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
        3.6 mm: 2.2 m (7.22 ft)
        DORI Distance Lens Detect Observe Recognize Identify
        2.8 mm 66.0 m (216.54 ft) 26.4 m ( 86.61 ft) 13.2 m (43.31 ft) 6.6 m (21.65 ft)
        3.6 mm 78.0 m (255.91 ft) 31.2 m ( 102.36 ft) 15.6 m (51.18 ft) 7.8 m (25.59 ft)
        Intelligent
        IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
        SMD 4.0 Less false alarm, longer detection distance
        Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
        Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
        AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
        Video
        Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
        Smart Codec Smart H.265+; Smart H.264+
        AI Coding AI H.265; AI H.264
        Video Frame Rate Main stream:3200 × 1800 @(1 fps–25/30 fps)
        Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
        Third stream: 1920 × 1080@(1 fps–25/30 fps)
        *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
        Stream Capability 3 streams
        Resolution 6M (3200 × 1800); 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240)
        Bit Rate Control CBR/VBR
        Video Bit Rate H.264: 32kbps–8192 kbps H.265:12kbps–8192 kbps
        Day/Night Auto (ICR)/Color/B/W
        BLC Yes
        HLC Yes
        WDR 120 dB
        Scene Self-adaptation Yes
        White Balance Auto; natural; street lamp; outdoor; manual; regional custom
        Gain Control Auto; manual
        Noise Reduction 3D NR
        Motion Detection OFF/ON (4 areas)
        Region of Interest (RoI) Yes (4 areas)
        Smart Illumination Yes
        Defog Yes
        Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
        Mirror Yes
        Privacy Masking 8 areas
        Audio
        Built-in MIC Yes
        Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
        Alarm
        Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
        Network
        Network RJ-45 (10/100 Base-T)
        SDK and API Yes
        Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
        Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
        Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP
        User/Host 20 (Total bandwidth: 72 M)
        Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
        Browser IE: IE8/9/11
        Chrome
        Firefox
        Management Software Smart PSS; DSS; DMSS
        Mobile Phone iOS; Android
        Certification
        Certification CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
        Port
        Audio Input 1 channel (RCA port)
        Audio Output 1 channel (RCA port)
        Alarm Input 1 channel in: 5 mA 3V–5 VDC
        Alarm Output 1 channel out: 300 mA 12 VDC
        Power
        Power Supply 12 VDC/PoE (802.3af)
        Power Consumption Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 8.3 W (DC12 V) 8.8 W (POE)
        Environment
        Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
        Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
        Protection Grade IP67
        Structure
        Casing Metal
        Dimensions 110.9 mm × Φ122.0 mm (4.37" × Φ4.80")
        Net Weight 745 g (1.64 lb)
        Gross Weight 915 g (2.02 lb)

        Dahua 8-Channel WizSense NVR: 16MP - DHI-NVR4108HS-8P-AI/ANZ
        Face Detection | Perimeter Protection | SMD 4.0 | Smart H.265+ Encoding
        System
        Main Processor Industrial-grade processor
        Operating System Embedded Linux
        Operating Interface Web; Local GUI
        AI
        AI by Recorder Face detection, face recognition, perimeter protection,
        and SMD Plus;
        AI by Camera Face detection; face recognition; perimeter protection;
        SMD Plus; ANPR; people counting; stereo analysis; heat
        map
        Perimeter Protection
        Perimeter Performance AI
        by Recorder (Number of
        Channels)
        2 channels, 10 IVS rules for each channel
        Perimeter Performance of
        AI by Camera (Number of
        Channels)
        8 channels
        Face Detection
        Face Attributes Gender; age group; glasses; expressions; face mask;
        beard
        Face Detection
        Performance of AI by
        Recorder (Number of
        Channels)
        1 channel (up to 12 face images/s each channel)
        Face Detection
        Performance of AI by
        Camera (Number of
        Channels)
        8 channels
        Face Recognition
        Face Database Capacity Up to 10 face databases with 200,00 images, with a
        total capacity of 2.5 G. Name, gender, birthday, address,
        credential type, credential No., countries & regions and
        state can be added to each face image.
        Face Recognition
        Performance of AI by
        Recorder (Number of
        Channels)
        8-channel FD (by camera) + FR (by recorder),image
        stream: 12 face images/s
        1-channel FD (by recorder) + FR (by recorder), video
        stream: 12 face images/s
        Face Recognition
        Performance of AI by
        Camera (Number of
        Channels)
        8 channels
        SMD Plus
        SMD Plus by Recorder 4 channels: Secondary filtering for human and motor
        vehicle, reducing false alarms caused by leaves, rain and
        lighting condition change
        SMD Plus by Camera 8 channels
        Vehicle License Plate Comparison
        ANPR by Camera (Number
        of Channels)
        4 channels
        License Plate Database
        Capacity
        1. Create up to 20,000 plate numbers.
        2. Blocklist and allowlist
        Audio and Video
        Access Channel 8 channels
        Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording
        and 256 Mbps outgoing
        AI-enabled: 180 Mbps incoming, 180 Mbps recording and
        180 Mbps outgoing
        Resolution 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p;
        720p; D1
        Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
        MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5
        MP@30 fps; 8-channel 4 MP@30 fps
        AI-enabled: 1-channel 16 MP@30 fps; 2-channel
        12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel
        5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel
        1080p@30 fps
        Video Output 1 HDMI, 1 VGA
        HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
        720
        VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
        *Simultaneous/heterogeneous video sources output for
        VGA and HDMI is configurable.
        Multi-screen Display 1st Screen: 1/4/8/9
        2nd Screen: 1/4/8/9
        Third-party Camera
        Access
        Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF,
        Canon
        Compression Standard
        Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
        Audio Compression G.711a; G.711u; PCM; G726
        Network
        Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
        UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;
        FTP; Alarm Server; IP Search (Support Dahua IP camera;
        DVR; NVS; etc.); P2P; auto register
        Mobile Phone Access iOS; Android
        Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
        Browser Chrome; IE9 and later; Firefox
        Recording Playback
        Multi-channel Playback Up to 8 channels
        Record Mode General, motion detection; intelligent; alarm
        Backup Method USB device and network
        Playback Mode Instant playback, general playback, event playback, tag
        playback, smart playback (face and motion detection)
        Alarm
        General Alarm Motion detection; privacy masking; video loss; scene
        changing; PIR alarm; IPC external alarm
        Anomaly Alarm Camera disconnection; storage error; disk full; IP
        conflict; MAC conflict; login locked; and cybersecurity
        exception
        Intelligent Alarm Face detection; face recognition; perimeter protection;
        SMD Plus; people counting; stereo analysis; heat map
        Alarm Linkage Record; snapshot; IPC external alarm output; audio;
        buzzer; log; preset; email
        Port
        Audio Input 1-channel RCA
        Audio Output 1-channel RCA
        HDD Interface 1 SATA port, up to 16 TB.The maximum HDD capacity
        varies with environment temperature.
        USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
        HDMI 1
        VGA 1
        Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
        PoE Port 8 ports, 10/100 Mbps, IEEE 802.3 af/at
        General
        Power Supply 53 VDC, 1.812 A
        Power Consumption Total output of NVR is <10 W(without HDD) Total output
        power of PoE is 72W,the maximum output power of
        asingle port is 25.5W
        Net Weight 0.92 kg (2.03 lb)
        Gross Weight 2.05 kg (4.52 lb)
        Product Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87")
        (W × L × H)
        Packaging Dimensions 372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13")
        (W × L × H)
        Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
        Operating Temperature –20 °C to +60 °C (–4 °F to +140 °F)
        Operating Humidity 10%–93% (RH)
        Installation Rack or desktop
        Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
        CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
        2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
        EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
        CE-LVD: EN 62368-1:2014
        Videos

        3-Years Warranty

        The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

        Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

      • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
      • We will not cover inbound shipping of the return to us.
      • We will cover outbound shipping for any replacements to the customer.
      • We will need the serial number of the product and your order number.
      • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
      • Recently viewed products

        © 2024 Spy Monkey Surveillance, Powered by Shopify

          • American Express
          • Apple Pay
          • Google Pay
          • Mastercard
          • PayPal
          • Shop Pay
          • Union Pay
          • Visa

          Login

          Forgot your password?

          Don't have an account yet?
          Create account
